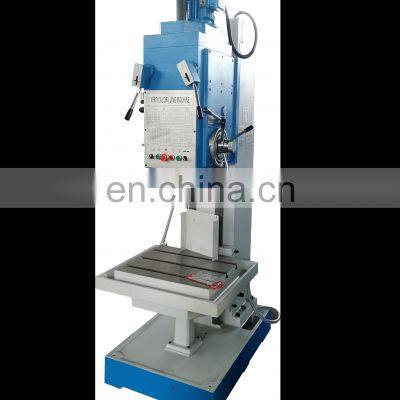

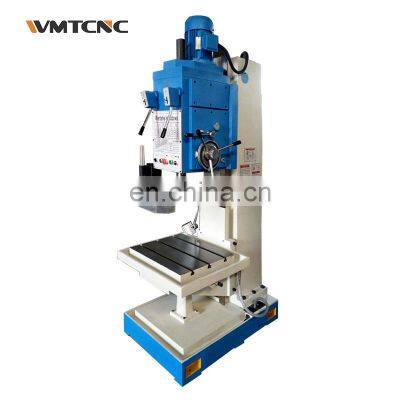

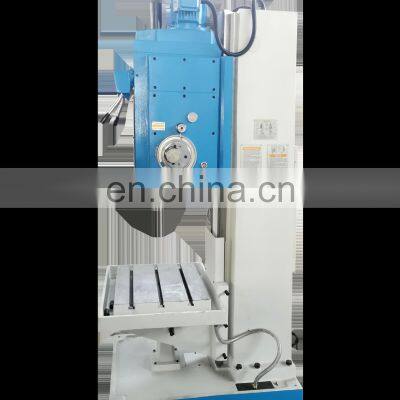

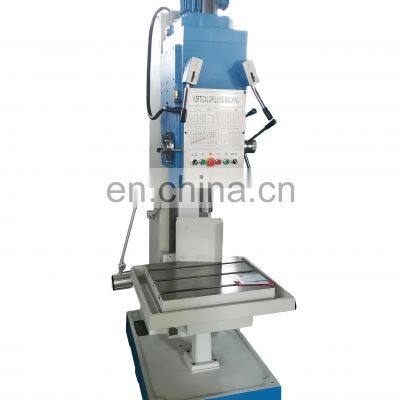

Factory Direct Sell Vertical Drilling Machine Z5150B With Cheap Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z3050x16 Hydraulic Radial Drilling Machine With Radial ArmNegotiableMOQ: 1 -
Z3032X7P Small Radial Drilling Machine With CENegotiableMOQ: 1
-
ZAY7025VB Belt Driven Drilling & Milling Machine From China.NegotiableMOQ: 1
-
ZAY7025VB Milling and Drilling Machine With Brushless MotorNegotiableMOQ: 1
-
ZAY7025VB Small Drilling and Milling Machine for Hobby User From China.NegotiableMOQ: 1

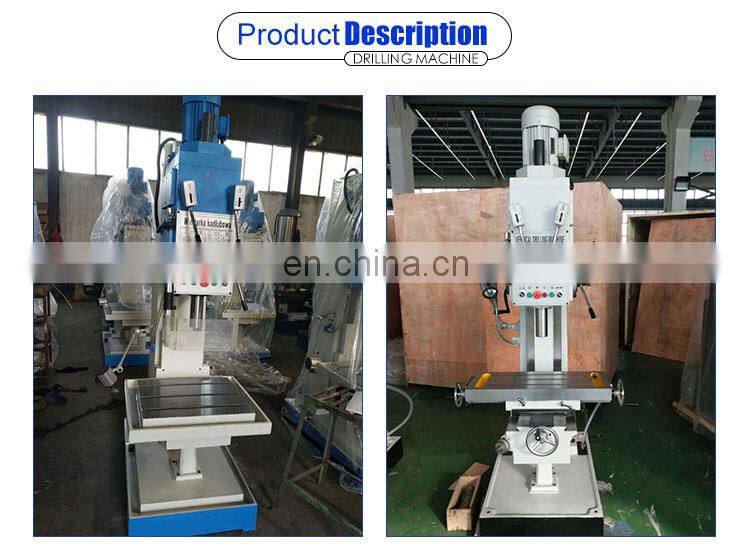

Product Description
machine features of drilling machine:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling,
drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Specifications | Z5150B |
Max drilling diameter(mm) | 50 |
Spindle taper | MT5 |
Spindle travel | 250 |
Spindle box travel(manual)(mm) | 200 |
Spindle speed (steps) | 12 |
Spindle speed range(r.p.m) | 31.5~1400 |
Feed series | 9 |
Feed range(mm/r) | 0.056~1.80 |
Table size(mm) | 560x480 |
Table longitudinal(cross) travel(mm) | - |
Table vertical travel(mm) | 300 |
Max distance form spindle nose to table surface(mm) | 750 |
Main motor power(kw) | 3 |
Overall size(mm) | 1090 x 905 x2465 |
N/W(kg) | 1300 |

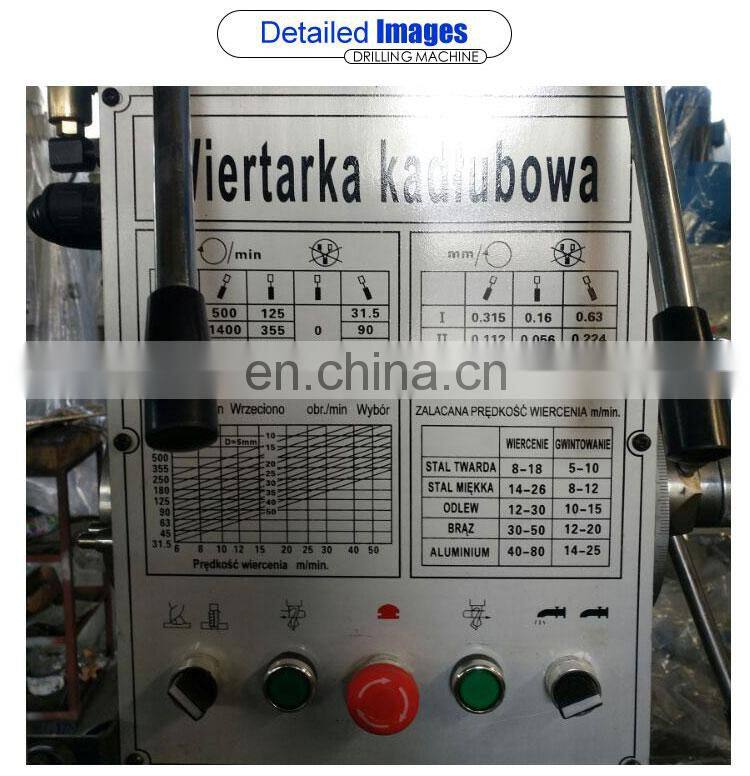

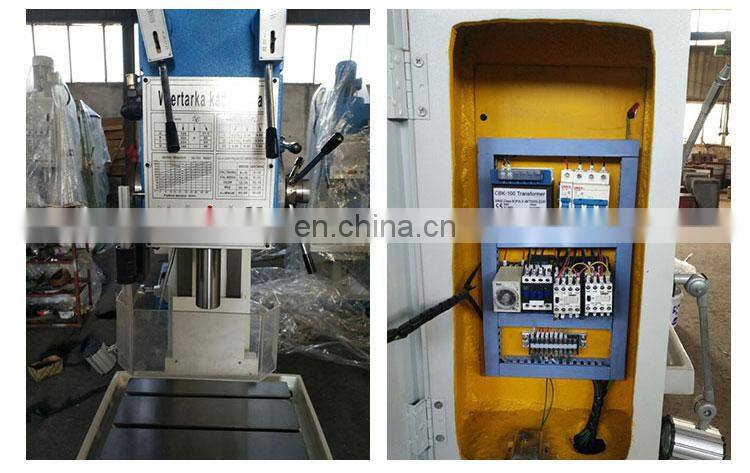

Machine Details
Packing Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
