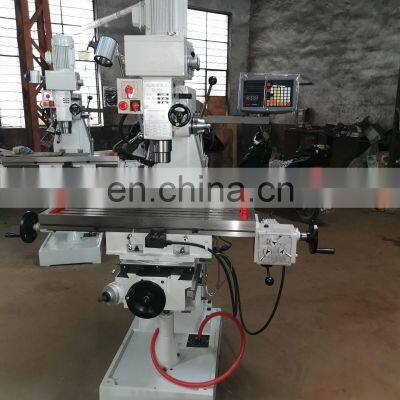

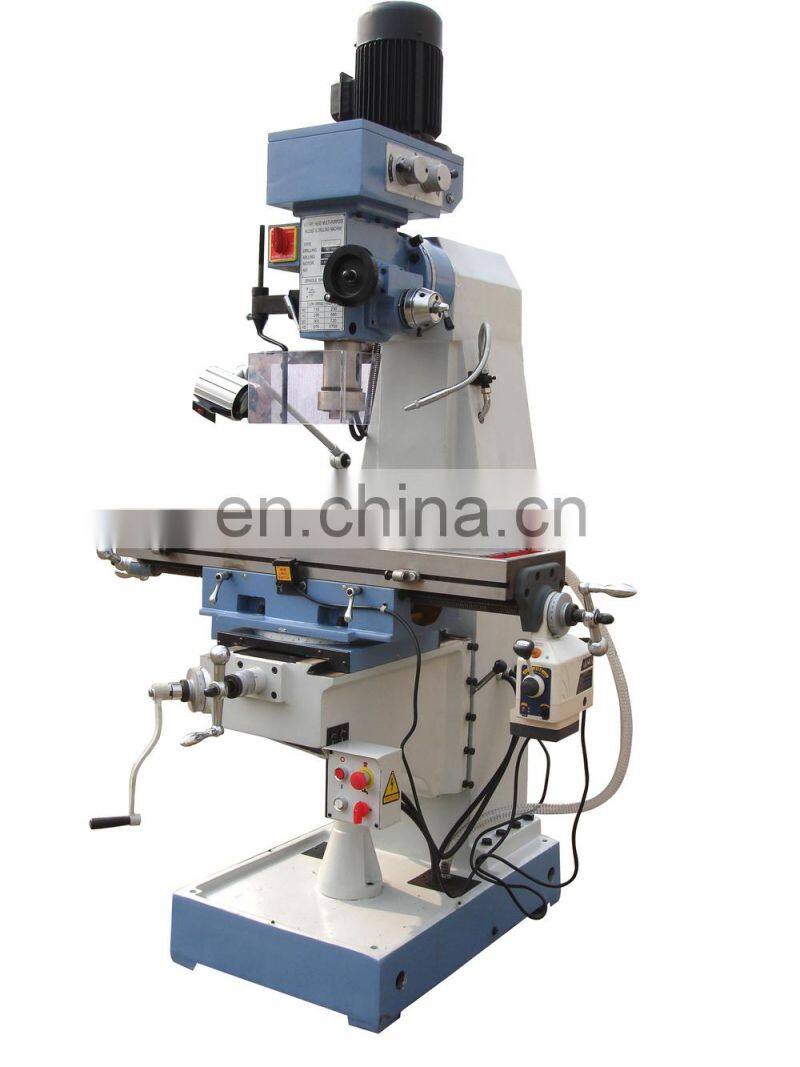

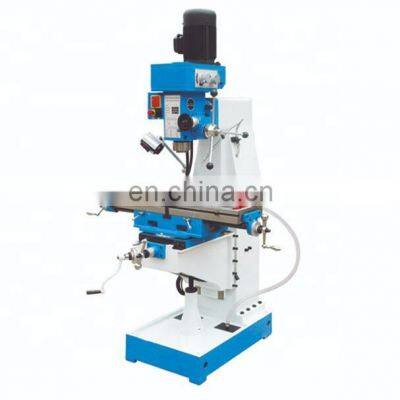

Hot Sale CE Certificated Mini ZX5325 ZX5325C Vernier Slotting Head Boring vertical universal Drilling and Milling MachineZX5325
series drilling and milling machine has many cutting functions such as milling, drilling, boring, grinding and tapping. Some of
the spindle heads can be rotated 90° in the vertical plane. The table area can be vertically and horizontally moved in the
horizontal plane, and can be rotated left and right. 45°. Applicable to all kinds of small and medium-sized parts processing,
especially non-ferrous metal materials; plastic; nylon cutting, with simple structure, flexible operation, etc., widely used in
single or batch mechanical manufacturing; instrument industry; architectural decoration and repair department.
Specifications | ZX5325C Drilling Milling Machine |
Max. Drilling Dia. (mm) | 50 |
Spindle Horizontal Milling Dia. | 100 |
Max. Vertical Milling Dia. | 32 |
Max. Boring Dia. | 100 |
Spindle Taper | MT4,R8 |
Spindle Speed Range | 115-1750 |
Spindle Travel | 125 |
Table Size (mm) | 260*1000 |
Table Travel (X.Y.Z) (mm) | 600*280*380 |
Main Motor Power (KW) | 0.85/1.5 |
Overall Dimension (mm) | 1250*1120*2100 |
N.W./G.W.(Kg) | 700/760 |
