ZX5325C Vertical Manual Mills Machinery From China Factory With Competitive Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Direct Sell Vertical Drilling Machine Z5150B With Cheap PriceNegotiableMOQ: 1 -
Z3050x16 Hydraulic Radial Drilling Machine With Radial ArmNegotiableMOQ: 1
-
Z3032X7P Small Radial Drilling Machine With CENegotiableMOQ: 1
-
ZAY7025VB Belt Driven Drilling & Milling Machine From China.NegotiableMOQ: 1
-
ZAY7025VB Milling and Drilling Machine With Brushless MotorNegotiableMOQ: 1
Product Description
Features:
Hot Sale CE Certificated Mini ZX5325 ZX5325C Vernier Slotting Head Boring vertical universal Drilling and Milling MachineZX5325
series drilling and milling machine has many cutting functions such as milling, drilling, boring, grinding and tapping. Some of
the spindle heads can be rotated 90° in the vertical plane. The table area can be vertically and horizontally moved in the
horizontal plane, and can be rotated left and right. 45°. Applicable to all kinds of small and medium-sized parts processing,
especially non-ferrous metal materials; plastic; nylon cutting, with simple structure, flexible operation, etc., widely used in
single or batch mechanical manufacturing; instrument industry; architectural decoration and repair department.
series drilling and milling machine has many cutting functions such as milling, drilling, boring, grinding and tapping. Some of
the spindle heads can be rotated 90° in the vertical plane. The table area can be vertically and horizontally moved in the
horizontal plane, and can be rotated left and right. 45°. Applicable to all kinds of small and medium-sized parts processing,
especially non-ferrous metal materials; plastic; nylon cutting, with simple structure, flexible operation, etc., widely used in
single or batch mechanical manufacturing; instrument industry; architectural decoration and repair department.
Machine Specification
Specifications | ZX5325C Drilling Milling Machine |
Max. Drilling Dia. (mm) | 50 |
Spindle Horizontal Milling Dia. | 100 |
Max. Vertical Milling Dia. | 32 |
Max. Boring Dia. | 100 |
Spindle Taper | MT4,R8 |
Spindle Speed Range | 115-1750 |
Spindle Travel | 125 |
Table Size (mm) | 260*1000 |
Table Travel (X.Y.Z) (mm) | 600*280*380 |
Main Motor Power (KW) | 0.85/1.5 |
Overall Dimension (mm) | 1250*1120*2100 |
N.W./G.W.(Kg) | 700/760 |

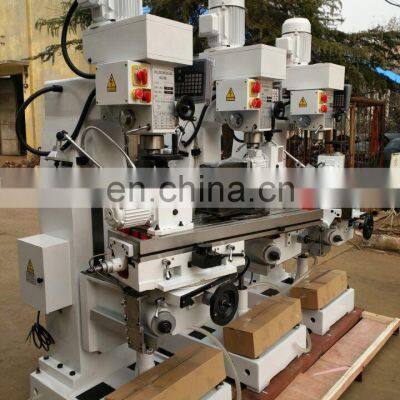

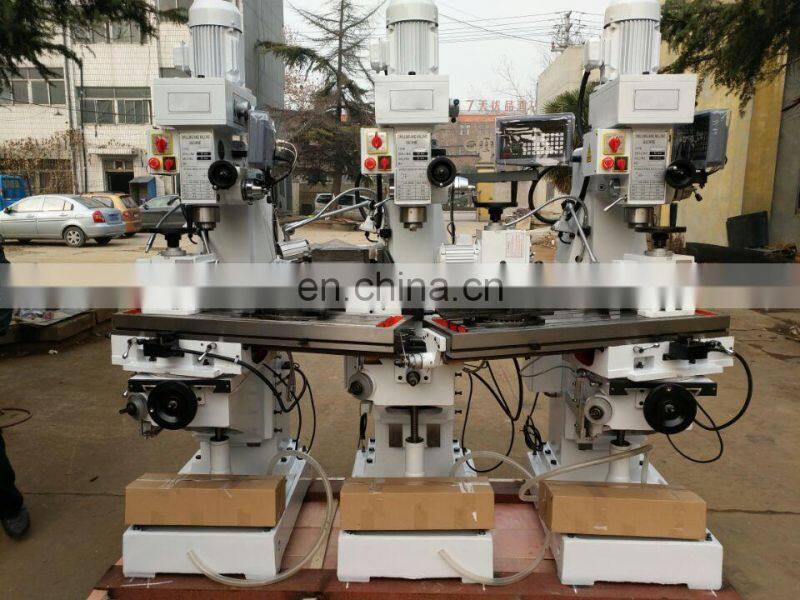

Detailed Images
