Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Z5045/1 Vertical Drilling Machine With Spindle Auto-feeding

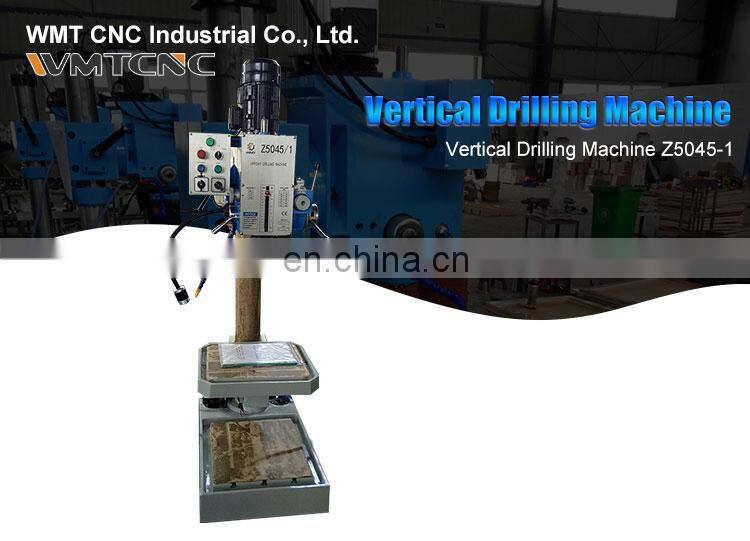

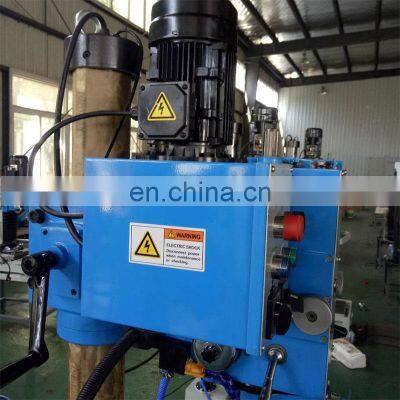

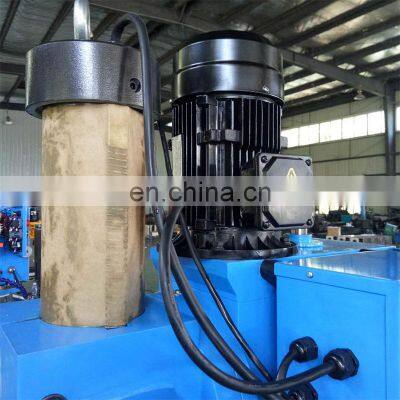

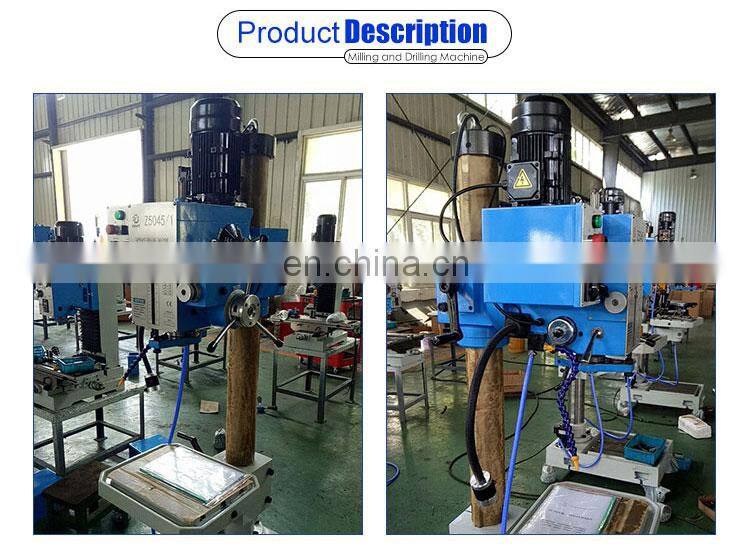

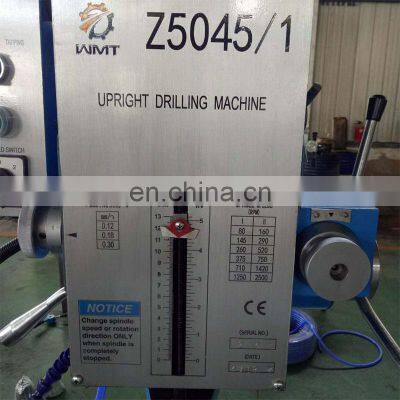

Z5045/1 Vertical Drilling Machine With Spindle Auto-feeding
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z5045C High Precision Vertical Drilling Machine for Metal WorkingNegotiableMOQ: 1 -
ZX5325C China Vertical Mini Metal Milling Machine for SaleNegotiableMOQ: 1
-
ZX5325C Vertical Manual Mills Machinery From China Factory With Competitive PriceNegotiableMOQ: 1
-
Factory Direct Sell Vertical Drilling Machine Z5150B With Cheap PriceNegotiableMOQ: 1
-
Z3050x16 Hydraulic Radial Drilling Machine With Radial ArmNegotiableMOQ: 1
Vertical Drilling Machine Z5032/1,Z5040/1,Z5045/1
1,Drilling,Milling and Tapping.
2,Headstock and worktable up and down perpendicularly.
3,Head swivels 360 ° horizontally
4.Gear driven lower noise
5,Positive spindle lock
Specification | Z5032/1 Z5040/1 Z5045/1 | Z5032 Z5040 Z5045 | |
Max.drilling capacity | Φ32mm/Φ40mm/Φ45mm | ||
Spindle taper | MT3/MT4/R8 | ||
Spindle travel | Φ130mm | ||
Step of spindle speed | 6 steps | ||
Range of spindle speed 50Hz | 80-1250rpm | ||
60Hz | 95-1500rpm | ||
Step of spindle auto-feeding | 6 steps | / | |
Range of spindle auto-feeding amount | 0.06-0.30rpm | / | |
Min.distance from spindle axis to column | 290mm | ||
Max.distance from spindle nose to worktable | 725mm | 700mm | |
Max.distance from spindle nose to stand table | 1125mm | ||
Max.travel of headstock | Φ250mm | ||
Swivel angle of headstock(horizontal/vertical) | 360° | ||
Max.travel of worktable bracket | Φ600mm | ||
Worktable size of avaliablity | 380×300mm | 730×210mm | |
Swivel angle of table horizontally | 360° | ||
Table leaned | ±45° | / | |
Size of stand worktable of avaliability | 417×416mm | ||
Motor Power | 0.75kw/1.1kw/1.5kw | 0.75kw/1.1kw/1.5kw | |
Speed of motor | 1400rpm | 1400rpm | |
N.W/G.W | 440/490kgs | 470/530kgs | |
Packing size | 1850×750×1000mm | 1850×950×1000mm | |
Loading amount/20" container | 18pcs | 12pcs | |
