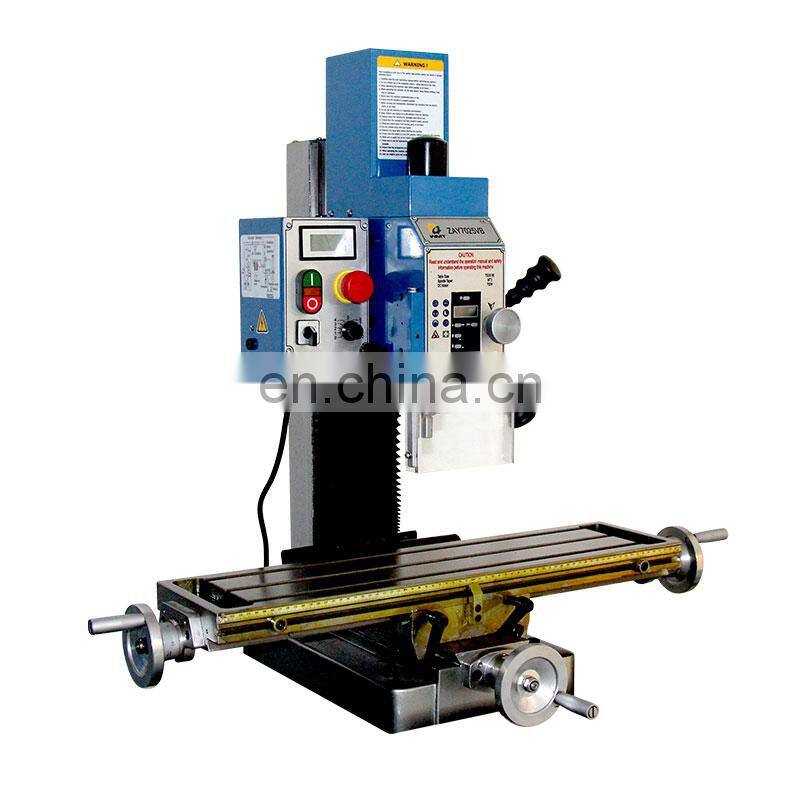

ZAY7025VB Milling and Drilling Machine With Brushless Motor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7025VB Small Drilling and Milling Machine for Hobby User From China.NegotiableMOQ: 1 -
China ZAY7025VB Drilling and Milling Machine With Belt Driven Brushless MotorNegotiableMOQ: 1
-
X6330 Vertical Turret Milling Machine With Taiwan Milling Turret HeadNegotiableMOQ: 1
-
X6132 Factory Direct Sales Universal Knee-type Milling Machine PriceNegotiableMOQ: 1
-
X6228B China Universal Milling Machine With Swivel HeadNegotiableMOQ: 1
Machine Show:
ZAY7025VB milling and drilling machine Features:
DC brushless motor,low noise
Variable speed
Head swivels+-45 degree
Micro feed precision
Manual tapping
Variable speed
Head swivels+-45 degree
Micro feed precision
Manual tapping
Specifications | ZAY7025VB(Belt drive) |
Max. drilling capacity | 25MM |
Max. tapping capacity | M12 |
Max. face mill capacity | 63MM |
Max. end mill capacity | 16MM |
Distance from spindle to table | 45-300MM |
Distance from spindle to column | 198MM |
Spindle travel | 50MM |
Spindle taper | MT3 |
Spindle speed | 75-1250RPM(L);150-2500RPM(H) |
Table size | 700X180MM |
T-slots size | 12MM |
X-axis travel | 520MM |
Y-axis travel | 190MM |
Z-axis travel | 255MM |
Motor power | 750W |
N.W./G.W. | 120/145KGS |
Packing size | 610X710X900MM |
Loading amount in 20" container | 48 PCS |
