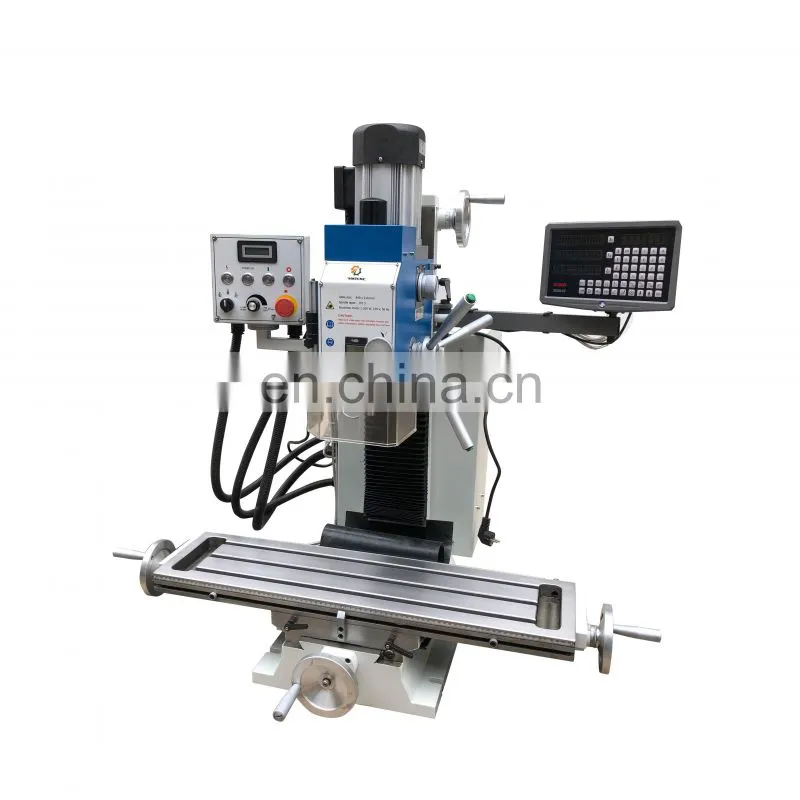

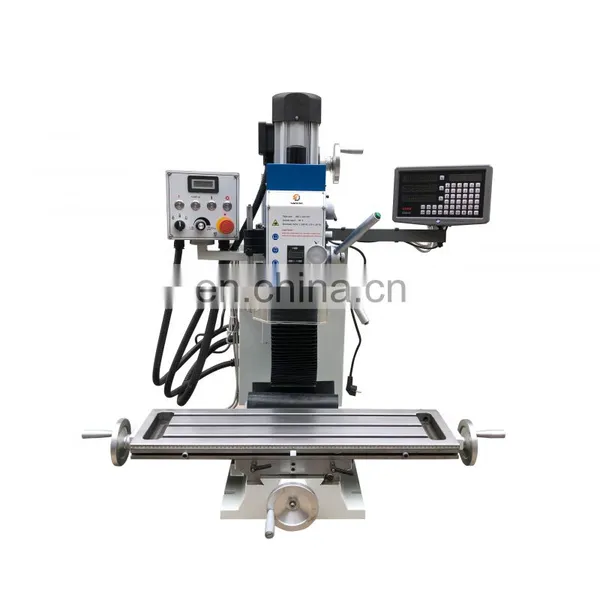

ZAY7035V VARIABLE SPEED MILL DRILL - Milling Machines
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LM1450A Universal Manual Metal Milling MachineNegotiableMOQ: 1 -
LM1450A China Cnc Universal Metal Milling Machine Price for SaleNegotiableMOQ: 1
-
XL6436CL Multi-function Swivel Head Knee Milling Machine for Metal WorkNegotiableMOQ: 1
-
XL6436CL China Knee Type Manual Universal Milling Machine for Metal WorkNegotiableMOQ: 1
-
XL6436C Cheap Manual Milling Machinewith CE ProtectionNegotiableMOQ: 1
Specification:
| Model No. | ZAY7035V |
| Max. drilling capacity | 35mm |
| Max. end milling capacity | 30mm |
| Max. face milling capacity | 75mm |
| Table size | 840x210mm |
| Cross travel | 220mm |
| Longitudinal travel | 540mm |
| Vertical travel | 340mm |
| Taper of spindle bore | MT3 |
| Spindle stroke | 70mm |
| T-key size | 12mm |
| Range of spindle speeds | 100-2250rpm |
| Headstock tilt left & right | ±45° |
| Brushless Motor | 1.5kw |
| Packing size | 1050x730x1180mm |
| Net weight | 220kg |
| Gross weight | 260kg |

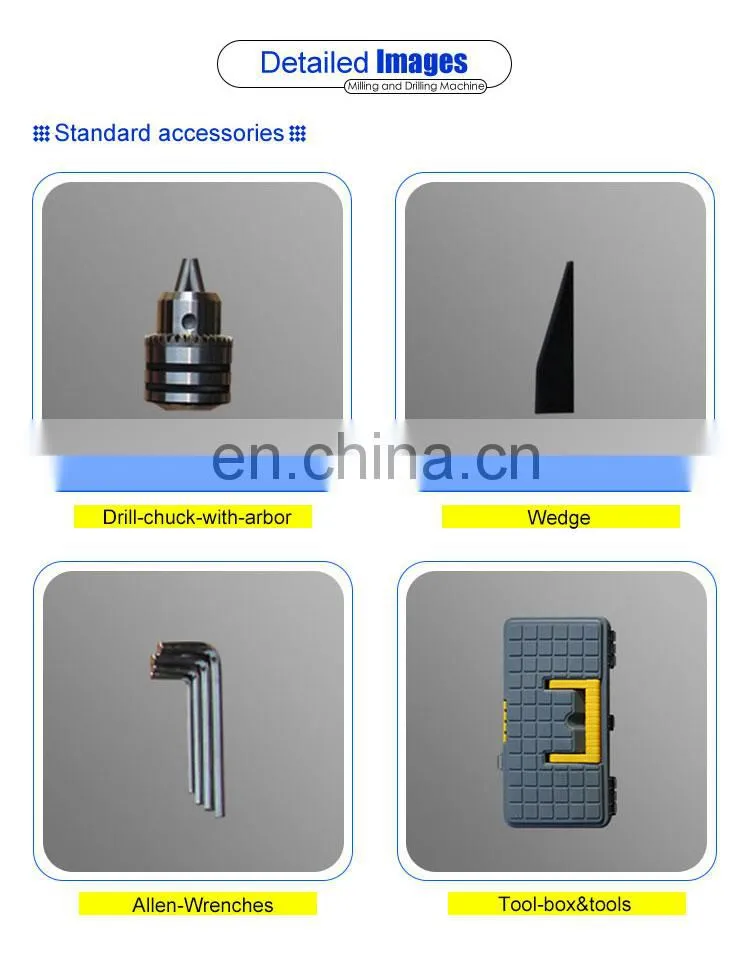

Standrad accessories:
1.speed display
2.Morse taper MT3/B16
3.Draw in rod M12
4.Drill chuck 3-16mm
5.Drill chuck guard
6.Depth of the display
7. Tool box & tools

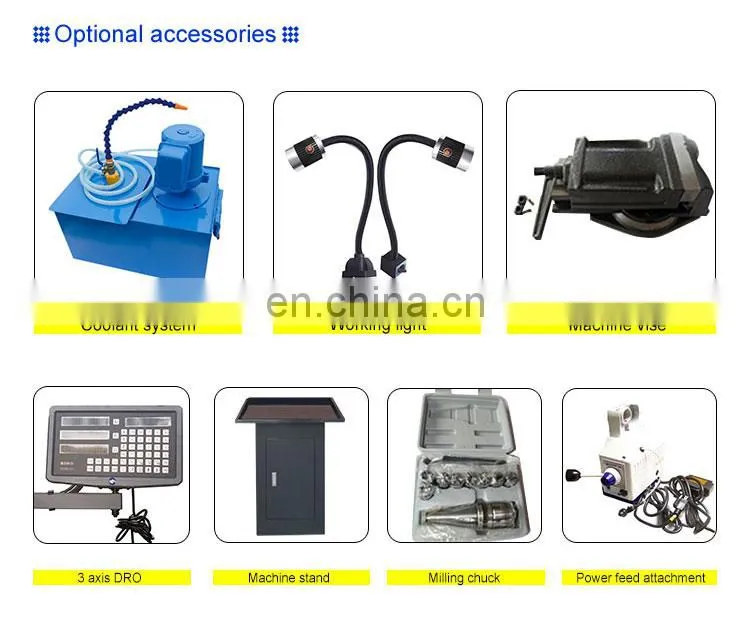

Optional accessories:
1.Coolant pump
2.Keyless chunk 3-16mm/B16
3.Milling vice
4.Collect chunk
5.End mill cutter
6.Stand & oil pan
