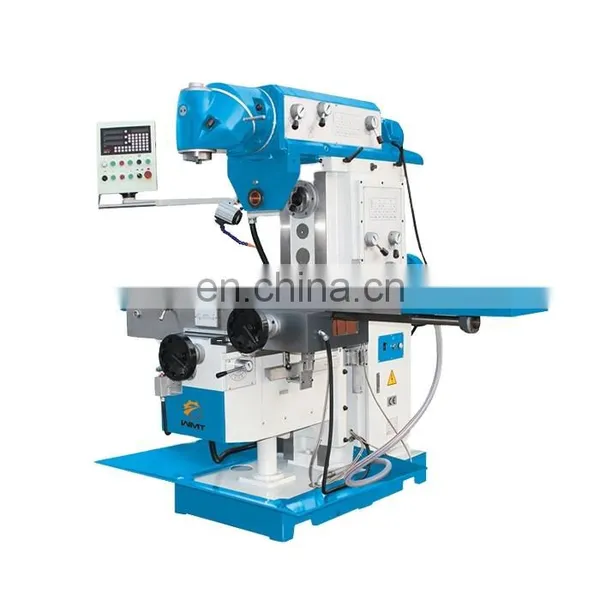

XL6436CL Multi-function Swivel Head Knee Milling Machine for metal work

Name: XL6436CL Multi-function Swivel Head Knee Milling Machine for metal work
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Main Features

•extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing • Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance • Large work area of 1600 x 360 mm and up to 500 kg table load capacity • Quiet, precision-made headstock gears with hardened and ground gears • Universal cutter head swivels on 2 levels - quick change-over from horizontal to vertical machining • By combining both swivel levels, almost any spatial angle can be set • Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes • Telescoping covers on the Y axis protect the feed spindle • Control panel swings out to either side and features an integrated position indicator • 5.5 kW main drive guarantees high torque • Coolant system and chip tray are Included

specifications	unit	XL6436C	XL6436CL
Table dimensions	mm	1325*360	*1600360**
Work area XYZ	mm	1100300450	*1300300450*
Table swivel angle	°	±45（ optional）	±45（ optional）
Table load capacity （max.）	Kg	500	500
T-slots （qtywidthspacing）	mm	31880	*31880*
Spindle speed（12 step）	rpm	60-1750（V）	60-1750（V）
Spindle speed（12 step）	rpm			60-1800（H）	60-1800（H）
Upper beam travel	mm	550	550
Distance from horizontal spindle to table	mm	20-410	20-410
Spindle nose-to-table distance		175-565	175-565
	n.m	790	790
Distance between spindle axis and ram surface	mm	200	200
Spindle taper		7:24 IS050,	7:24 IS050,
Axis rapid feed （X/Y/Z）	MM	1200、800、600	1200、800、600
Axis feed（X/Y/Z）	mm	30-750、20-500、15-375	30-750、20-500、15-375
Motor capacity，vertical/horizontal	KW	4kw/5.5kw	4kw/5.5kw
Feed motor rating X/Y/Z axis	KW	10N.m servo-motor	10N.m servo-motor
Dimensions	mm	224521002000	*224521002000*
weight	kg	2550	2800

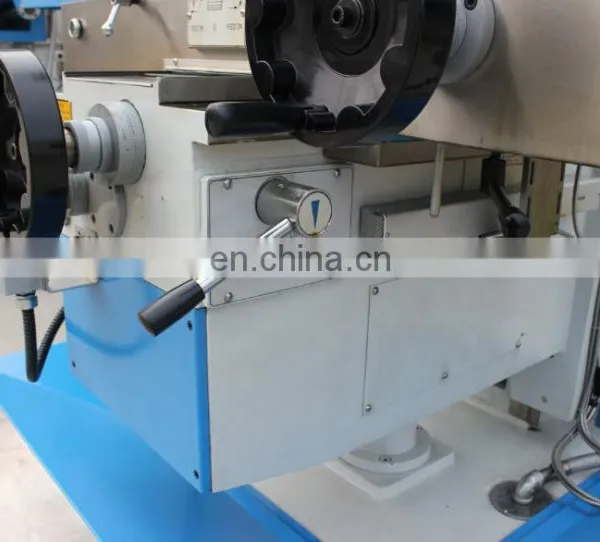

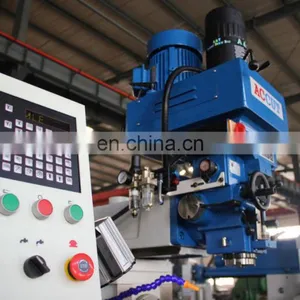

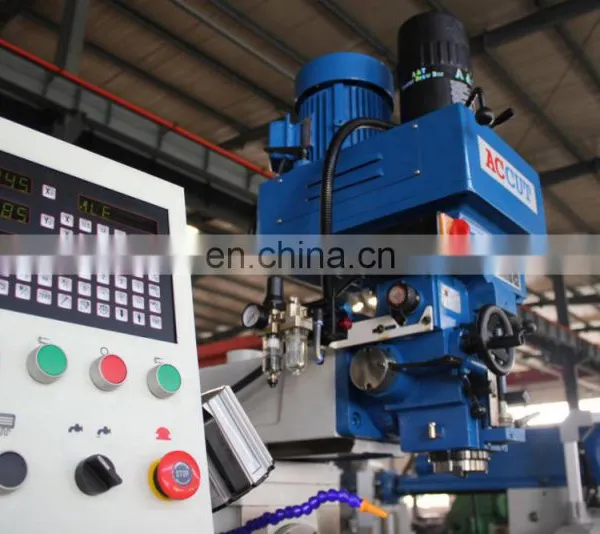

Detailed Images
