Home > Products > DRILL/MILL/BORING/TAPPING > XL6436C cheap manual milling machinewith CE Protection

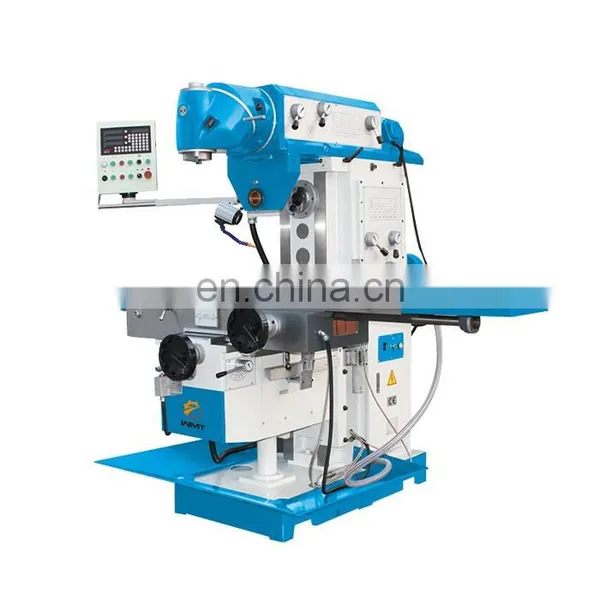

XL6436C cheap manual milling machinewith CE Protection
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
XL6436Cchina universal milling machine with horizontal and vertical milling for metal works
-
XL6436C Vertical Universal Milling Machine with Table Long Travel and automatic power feeder
-
ZAY7032FG drilling and milling machine for Metal Working
-
Z5032 vertical drilling machine with CE
-
Z5040 vertical drilling machine with CE Protection
-
Z5045 vertical drilling machine with CE
Product Description
Product Description
Main Features:
•extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing;
• Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance;
• Large work area of 1600 x 360 mm and up to 500 kg table load capacity;
• Quiet, precision-made headstock gears with hardened and ground gears;
• Universal cutter head swivels on 2 levels - quick change-over from horizontal to vertical machining;
• By combining both swivel levels, almost any spatial angle can be set;
• Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes;
• Telescoping covers on the Y axis protect the feed spindle;
• Control panel swings out to either side and features an integrated position indicator;
• 5.5 kW main drive guarantees high torque;
• Coolant system and chip tray are Included.
Specifications | unit | XL6436C | XL6436CL |
Table dimensions | mm | 1325*360 | 1600*360 |
Work area XYZ | mm | 1100*300*450 | 1300*300*450 |
Table swivel angle | ° | ±45（ optional） | ±45（ optional） |
Table load capacity （max.） | Kg | 500 | 500 |
T-slots （qty*width*spacing） | mm | 3*18*80 | 3*18*80 |
Spindle speed（12 step） | rpm | 60-1750（V） | 60-1750（V） |
60-1800（H） | 60-1800（H） | ||
Upper beam travel | mm | 550 | 550 |
Distance from horizontal spindle to table | mm | 20-410 | 20-410 |
Spindle nose-to-table distance | 175-565 | 175-565 | |
n.m | 790 | 790 | |
Distance between spindle axis and ram surface | mm | 200 | 200 |
Spindle taper | 7:24 IS050, | 7:24 IS050, | |
Axis rapid feed （X/Y/Z） | MM | 1200、800、600 | 1200、800、600 |
Axis feed（X/Y/Z） | mm | 30-750、20-500、15-375 | 30-750、20-500、15-375 |
Motor capacity，vertical/horizontal | KW | 4kw/5.5kw | 4kw/5.5kw |
Feed motor rating X/Y/Z axis | KW | 10N.m servo-motor | 10N.m servo-motor |
Dimensions | mm | 2245*2100*2000 | 2245*2100*2000 |
weight | kg | 2550 | 2800 |

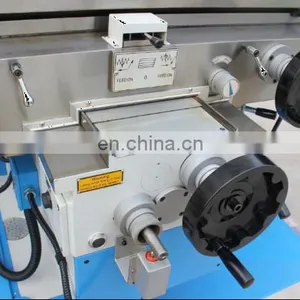

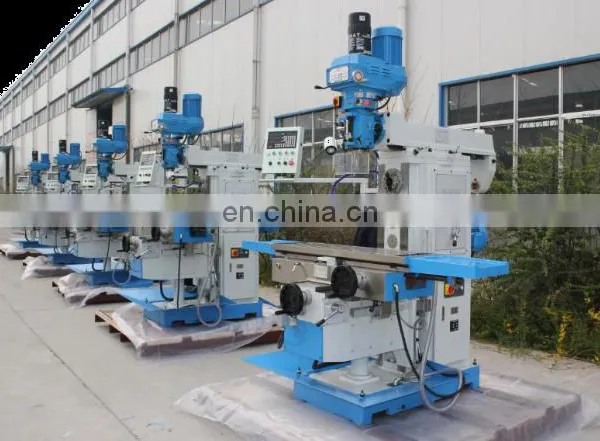

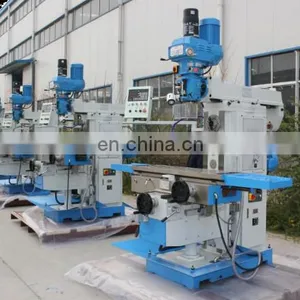

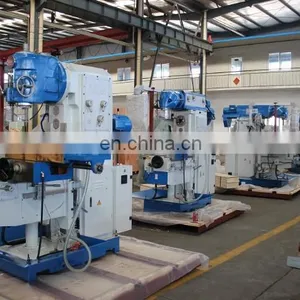

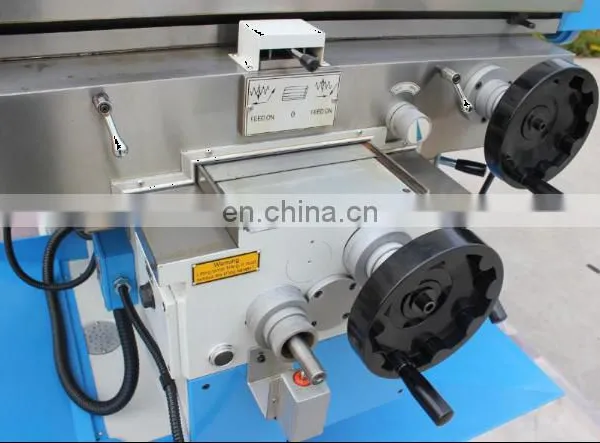

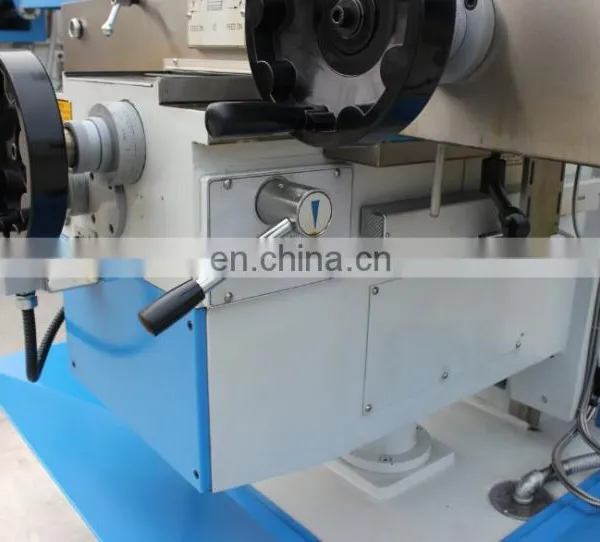

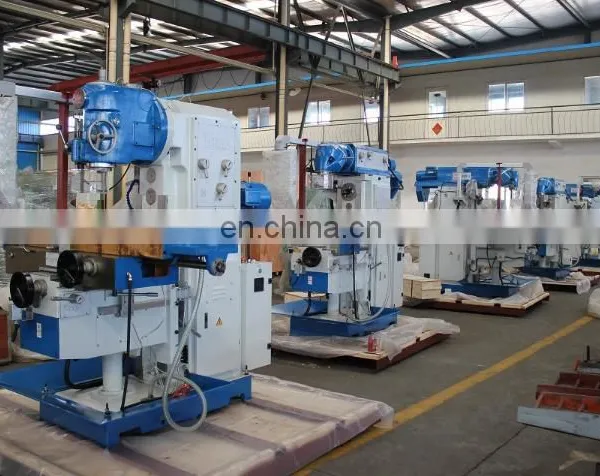

Detailed Images
Related Products
Packing&Shipping
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
