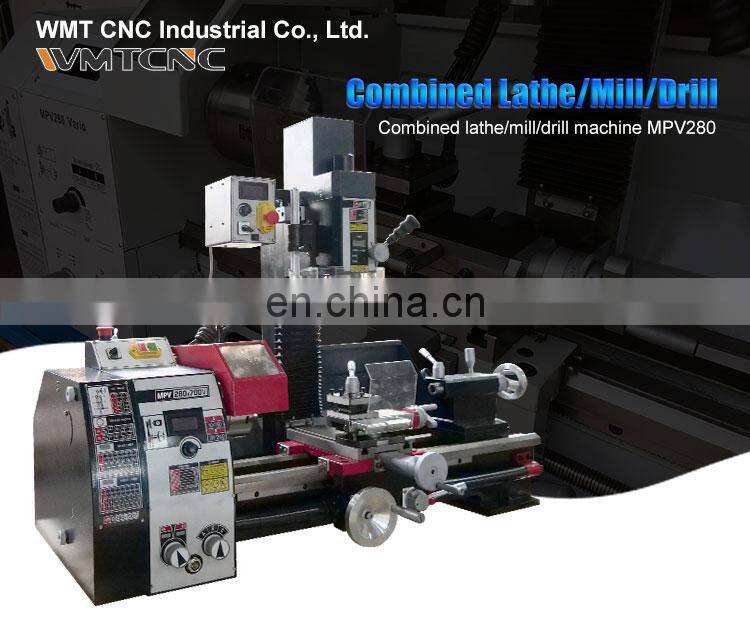

MPV280 Multi Purpose Lathe Machine From China Factory With High Quality
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Parallel Lathe MP800 Hot Sales Multi-purpose Milling Lathe and Drilling Machine ComboNegotiableMOQ: 1 -
DIY0714 Direct Connect Bench Lathe Machine With 20mm Spindle Bore for School Training and Hobby UsersNegotiableMOQ: 1
-
DIY0714 Direct Connect Mini Bench Lathe Machine With 20mm Spindle Bore for MetalworkingNegotiableMOQ: 1
-
CS6250Bx1000 Engine Lathe Metal Manual Lathe for Metal TurningNegotiableMOQ: 1
-
Gear Head Universal Lathe Machine Engine Lathe CM6241 for Metal TurningNegotiableMOQ: 1
Product Description
Machine features of combined lathe:
1.Most popular, widely useful variable speed lathe.
2.V-way bed is hardened and precision ground.
3.Spindle is supported by precision tapered roller bearing.
4.MT5 spindle hole gets more capacity.
5.High precision chuck.
6.Power longitudinal feed allows threading.
7.Adjustable grids for slidedways.
8.Top design of gearbox gets more function.
9.Right and left hand threads cutting is available.
10.Tailstock can be off set for turning tapers(MT3)Model | MPV250/500mm | MPV280/700mm | ||
TURNING | Max.swing over bed | 250mm(10") | 280mm(11") | |
Distance between centers | 700mm(27-5/9") | 700mm(27-5/9") | ||
Swing over cross slide | 150mm(6") | 170mm(6-5/7") | ||
Width of bed | 135mm(5-1/3") | 180mm(7") | ||
Taper of spindle bore | MT4 | MT4 | ||
Spindle bore | 26mm(1") | 26mm | ||
Range of spindle speeds | 50-2500rpm | 50-2500rpm | ||
Range of longitudinal feed | 0.07-0.40mm/r | 0.07-0.40mm/r | ||
Range of inch threads | 8-56TPI | 8-56TPI | ||
Range of metric threads | 0.2-3.5mm | 0.2-3.5MM | ||
Taper of tailstock quill | MT2 | MT2 | ||
Motor power | 1.1kw | 1.1KW | ||
DRILLING & MILLING | Max.drilling capacity | Max.φ16mm(5/8") | Max.φ20mm(4/5") | |
Milling cap. of cutter head | Max.φ52mm(2") | Max.φ63mm(2-1/2") | ||
Milling cap.of end mill cutter | Max.φ16mm(5/8") | Max.φ20mm(4/5") | ||
Taper of spindle bore | MT2 | MT2 | ||
Sleeve travel | 52mm(2") | 52mm | ||
T T-slot size | 10mm(2/5") | 12mm(1/2") | ||
Range of spindle speeds | 50-3000rpm | 50-3000rpm | ||
Max.distance spindle to table | 280mm(11") | 380mm(15") | ||
Working range | 175mm(6-8/9") | 190mm(7-1/2") | ||
Motor power | 600W | 750w | ||
SHIPMENT DATA | Packing dimensions ( L×W×H ) | 1270×680×930mm | 1390×850×1060mm | |
Net weight | 180kg | 235kg | ||

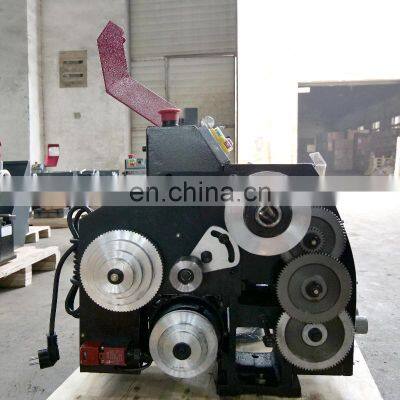

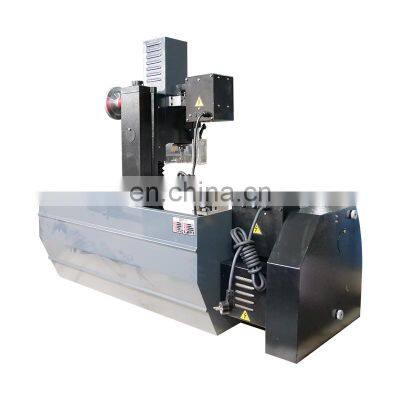

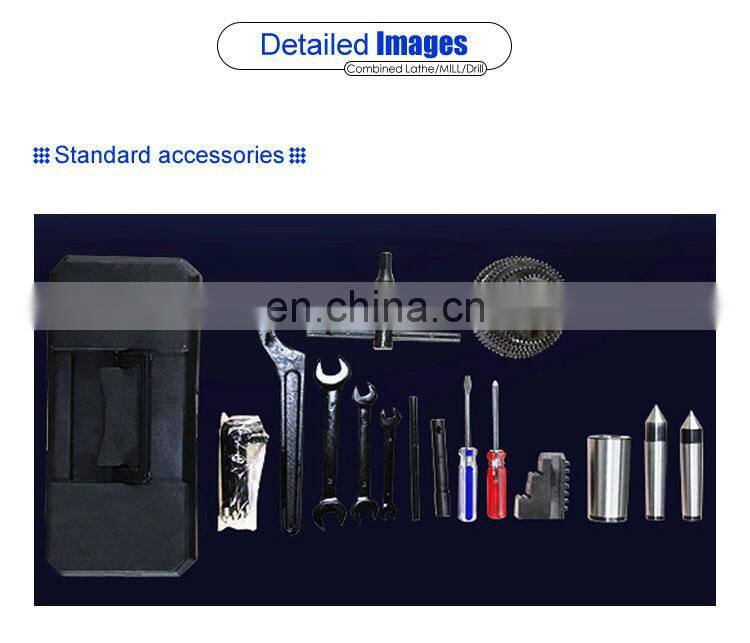

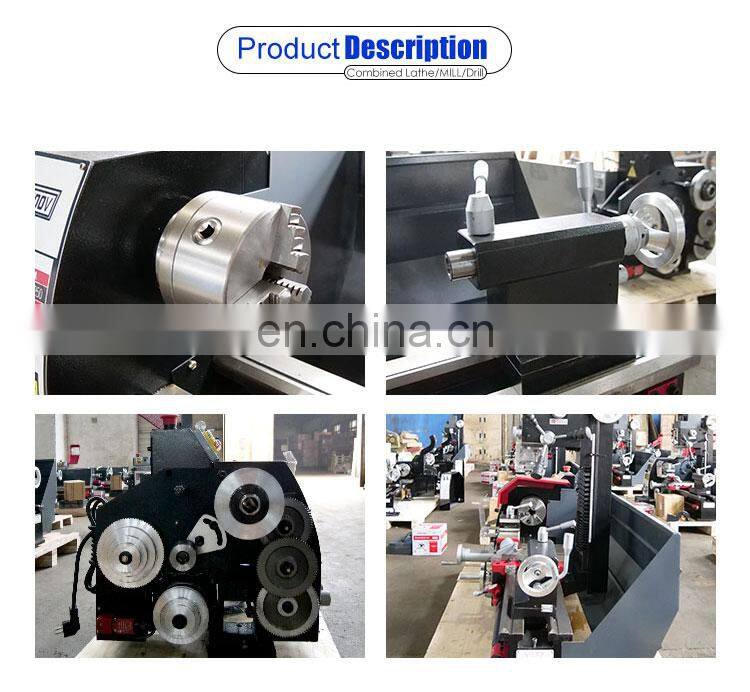

Details Images

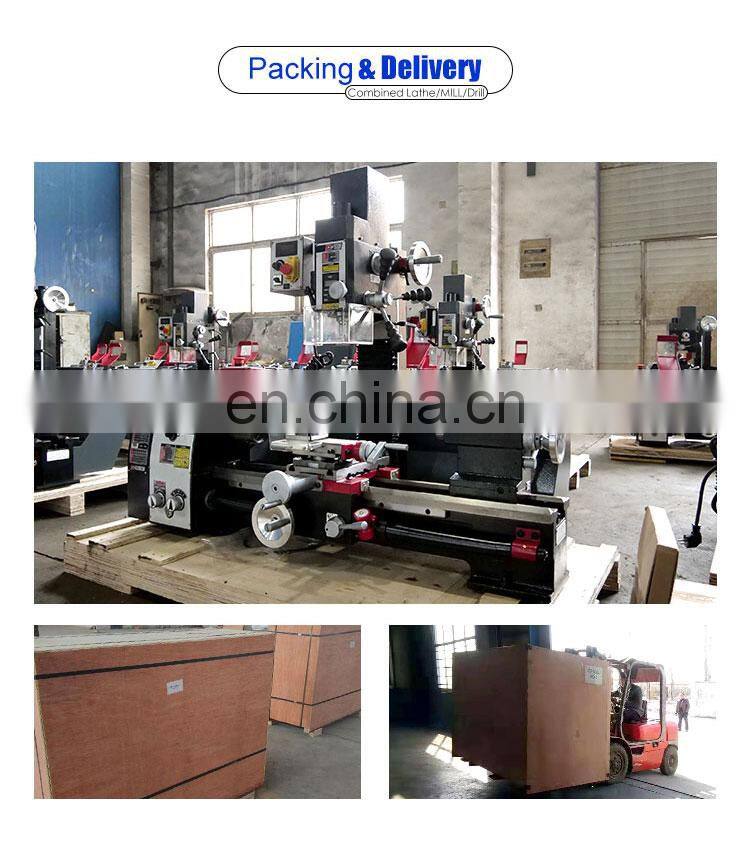

Package&Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

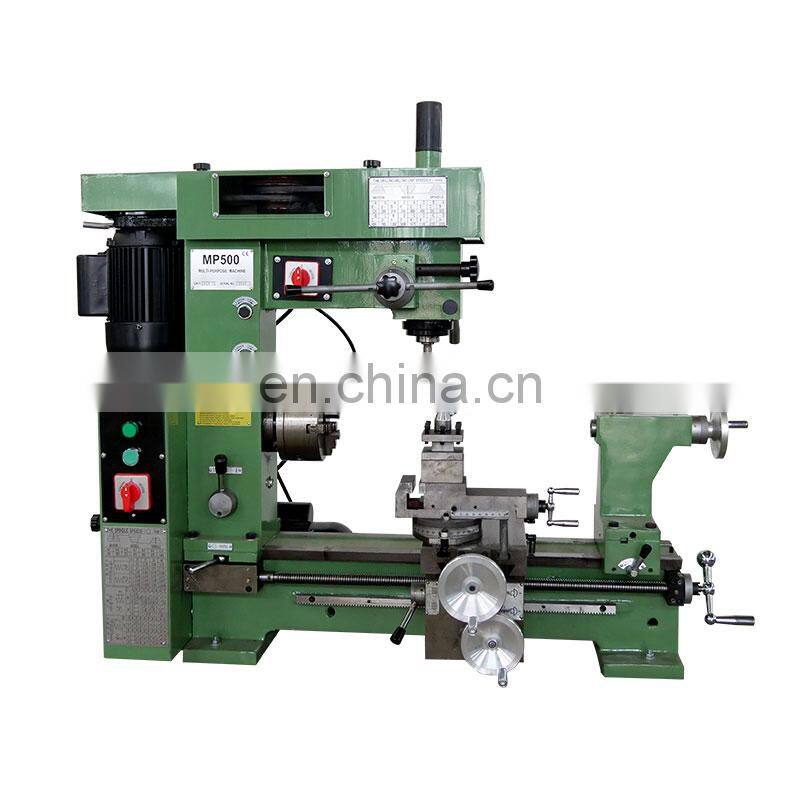

Combined lathe MP500

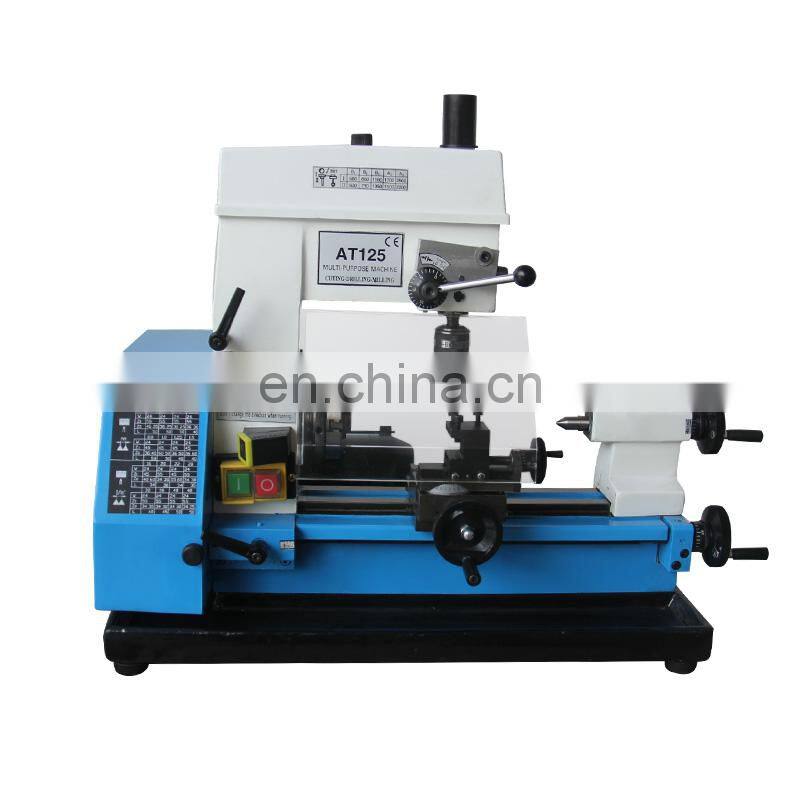

Combined lathe AT125

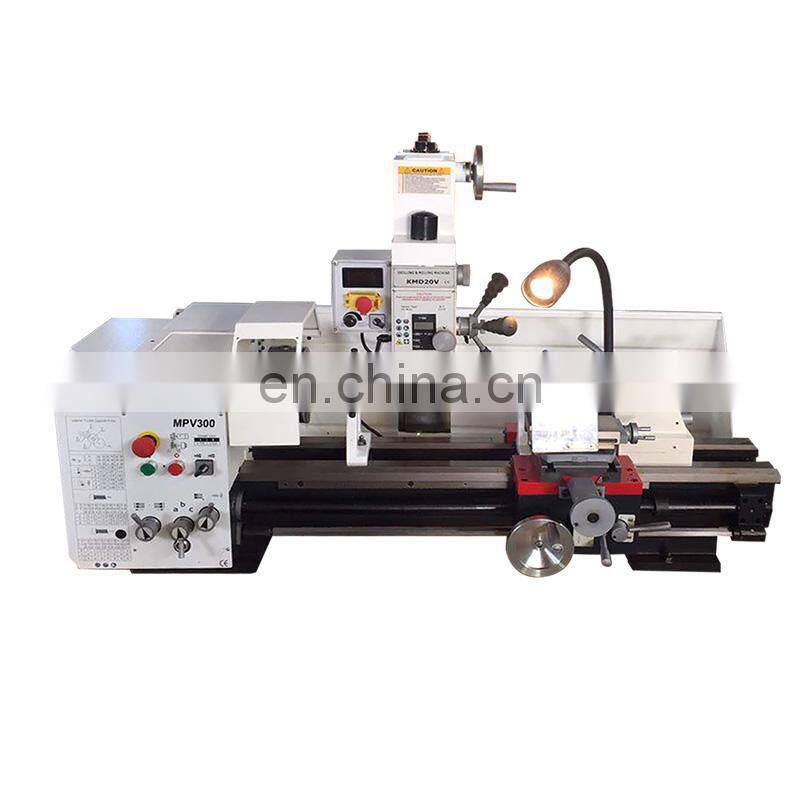

Combined lathe MPV300
