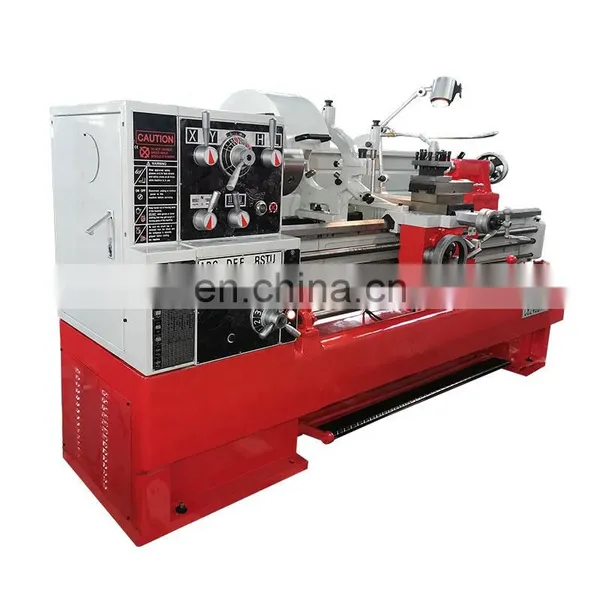

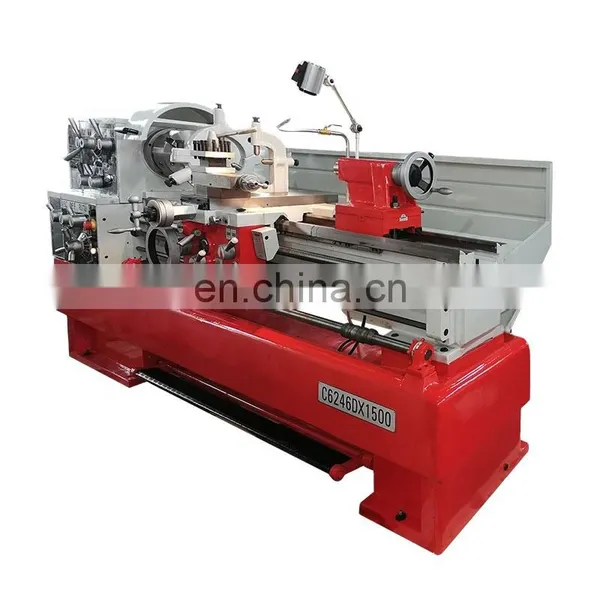

C6246Dx1500 Engine Lathe Machine for Metal Working With High Quality
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gear Head Universal Lathe Engine Lathe CM6241x1000 for Metal TurningNegotiableMOQ: 1 -
MPV280 Multi Purpose Lathe Machine From China Factory With High QualityNegotiableMOQ: 1
-
Parallel Lathe MP800 Hot Sales Multi-purpose Milling Lathe and Drilling Machine ComboNegotiableMOQ: 1
-
DIY0714 Direct Connect Bench Lathe Machine With 20mm Spindle Bore for School Training and Hobby UsersNegotiableMOQ: 1
-
DIY0714 Direct Connect Mini Bench Lathe Machine With 20mm Spindle Bore for MetalworkingNegotiableMOQ: 1
Product Description
Engine machine features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. There is no need for change gears. The machine can turn about 150 kinds of metric, inch, module and D.P. threads.
4.An automatic stopping device is used to realized automatic stop for the machining of a work piece of a certain length.
5. Easy operating speed change levers.
6. Removable gap is provided for larger diameter work.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. There is no need for change gears. The machine can turn about 150 kinds of metric, inch, module and D.P. threads.
4.An automatic stopping device is used to realized automatic stop for the machining of a work piece of a certain length.
5. Easy operating speed change levers.
6. Removable gap is provided for larger diameter work.
Specification |
C6246DX1500 |
Max swing over bed |
460mm |
Max swing over cross slide |
270mm |
Max swing in gap |
690mm |
Distance between centers |
1500mm |
valid length of gap1 |
165mm |
Width of bed |
300mm |
Spindle bore |
80mm |
Spindle taper |
MT6 |
Range of spindle speed |
12changes,25-2000r/min |
Max travel of top slide |
128mm |
Max travel of cross slide |
285mm |
Tailstock quill diameter |
60mm |
Tailstock quill travel |
128mm |
Tailstock quill taper |
MT4 |
Main motor power |
5.5kw 3PH |
Overall size |
2200/2750/3250x1080x1370mm |
Packing size |
2250/2800/3300x1120x1620mm |
N.W |
1670/1920/2070kg |
G.W |
1980/2265/2450kg |
Machine Details
Details Images
Package&Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
