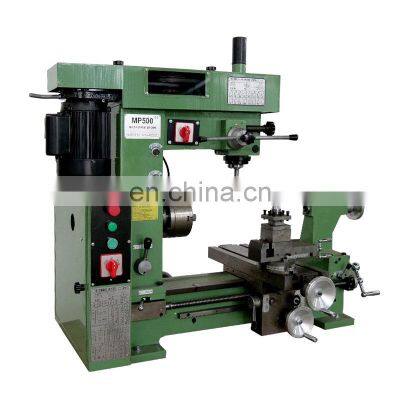

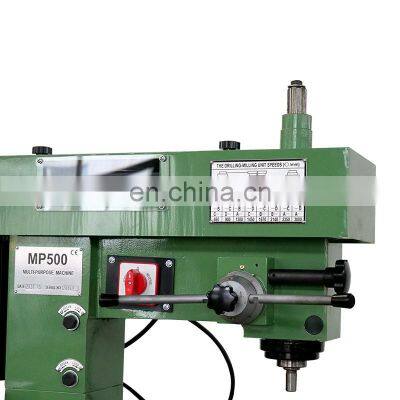

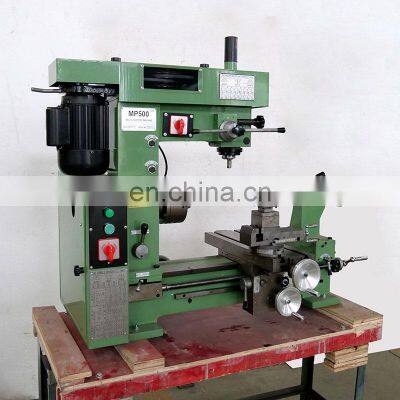

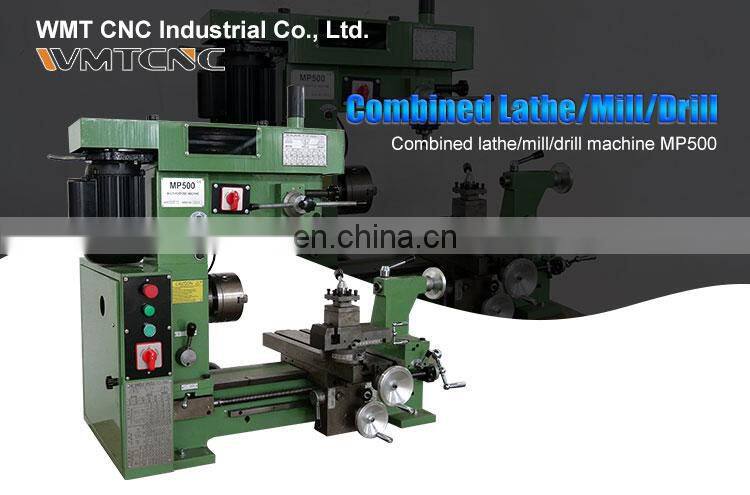

Lathe and Milling and Drilling Combine Machine MP500 for Sale in China
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C6246Dx1500 Engine Lathe Machine for Metal Working With High QualityNegotiableMOQ: 1 -
Gear Head Universal Lathe Engine Lathe CM6241x1000 for Metal TurningNegotiableMOQ: 1
-
MPV280 Multi Purpose Lathe Machine From China Factory With High QualityNegotiableMOQ: 1
-
Parallel Lathe MP800 Hot Sales Multi-purpose Milling Lathe and Drilling Machine ComboNegotiableMOQ: 1
-
DIY0714 Direct Connect Bench Lathe Machine With 20mm Spindle Bore for School Training and Hobby UsersNegotiableMOQ: 1

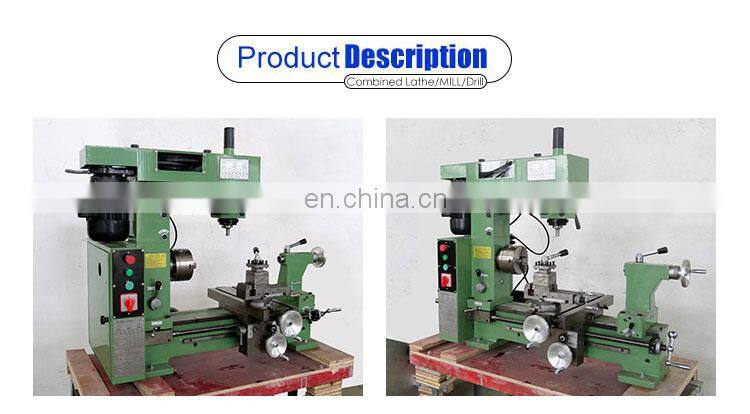

Product Description
Features:
Turning,milling,drilling and treading
Metric or imperial thread cutting
Suitable for processing metal,wood and other materials
Excellent advantage of various functions,small occupation and economic
Metric or imperial thread cutting
Suitable for processing metal,wood and other materials
Excellent advantage of various functions,small occupation and economic
Specification | MP500 |
Max. Swing over bed | 420mm |
Max. Distance between centers | 500mm |
Max. longitudinal travel | 400mm |
Max. cross travel | 200mm |
Spindle taper | MT4 |
Spindle bore | φ28mm |
Step of spindle speed | 7 steps |
Range of spindle speed | 160-1360rpm |
Barrel travel | 70mm |
Barrel taper | MT3 |
Metric thread range | 0.2-6mm |
Inch thread range | 4-120T.P.I |
Longitudinal range of automatic feeding | 0.05-0.35mm/ 0.002-0.014" |
Cross range of automatic feeding | 0.05-0.35mm/ 0.002-0.014" |
Max. drilling capacity | φ22mm |
Worktable size (L×W) | 475×160mm |
Max. end mill | φ28mm |
Max. face mill | φ80mm |
Distance between spindle center and column | 285mm |
Distance between spindle and worktable | 306mm |
Headstock travel of up and down | 110mm |
Spindle taper | MT3 |
Step of spindle speed | 16steps |
Range of spindle speed | 120-3000rpm |
Swivel degree of headstock | ±360° |
Motor power | 0.75kw |
Packing size | 1130×580×1100mm |
N.W/G.W | 245/280kgs |

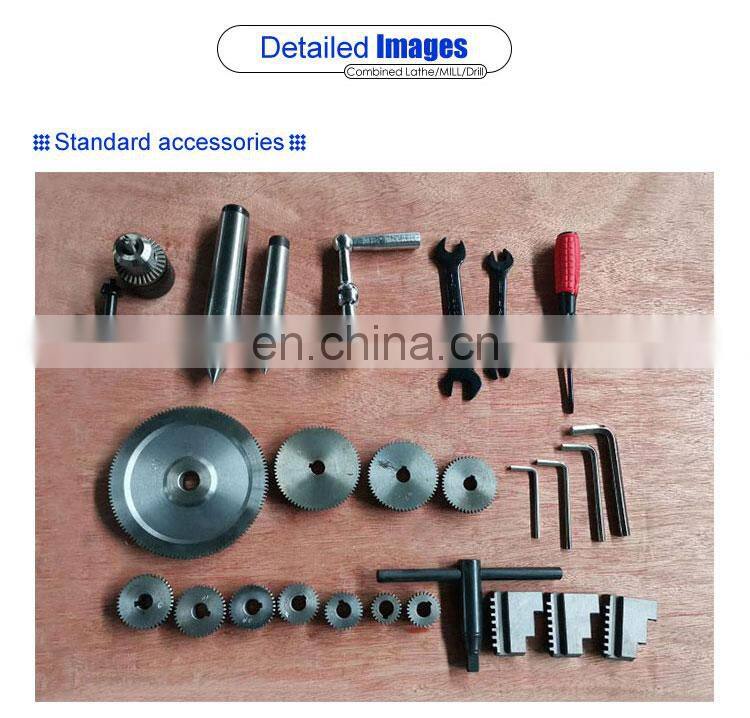

Details Images
Company Profile
WMT CNC Industrial Co., Ltd. is located in the southwest of the Yangtze River in Anhui Province with famous Buddhist shrine in the north of Jiuhua Mountain. The transportation facilities here are very convenient, directly linked with many metropolis like Shanghai, Beijing and Shenzhen via the highway, international airport, and high-speed railway.
WMTCNC company focuses on the research and development, manufacturing, sales and service of various CNC machine tools. Our products are widely used in the processing of molds and parts for products in the aerospace, automotive, steel, petrochemical, and electronics industries. The products are exported to more than 50 countries and regions around the world with good reputation always.
Our main products are Vertical machining centers, Gantry machining centers, CNC milling machines, CNC lathes, Turning machining centers, common drilling and milling machines, milling machines, lathes, and DIY machine tools, etc.
Main functional components of machines are supplied by world-renowned brands such as Japan, Taiwan and Germany. The concept of combining "craftsman spirit" and "intelligent manufacturing" runs through the research and development, production and sales of various products, relying on advanced processing And testing equipment, scientific management to ensure our products with the high precision, high rigidity and high efficiency. Our machines are the trustworthy product for mold and metal processing.
WMTCNC company focuses on the research and development, manufacturing, sales and service of various CNC machine tools. Our products are widely used in the processing of molds and parts for products in the aerospace, automotive, steel, petrochemical, and electronics industries. The products are exported to more than 50 countries and regions around the world with good reputation always.
Our main products are Vertical machining centers, Gantry machining centers, CNC milling machines, CNC lathes, Turning machining centers, common drilling and milling machines, milling machines, lathes, and DIY machine tools, etc.
Main functional components of machines are supplied by world-renowned brands such as Japan, Taiwan and Germany. The concept of combining "craftsman spirit" and "intelligent manufacturing" runs through the research and development, production and sales of various products, relying on advanced processing And testing equipment, scientific management to ensure our products with the high precision, high rigidity and high efficiency. Our machines are the trustworthy product for mold and metal processing.
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
Related Products

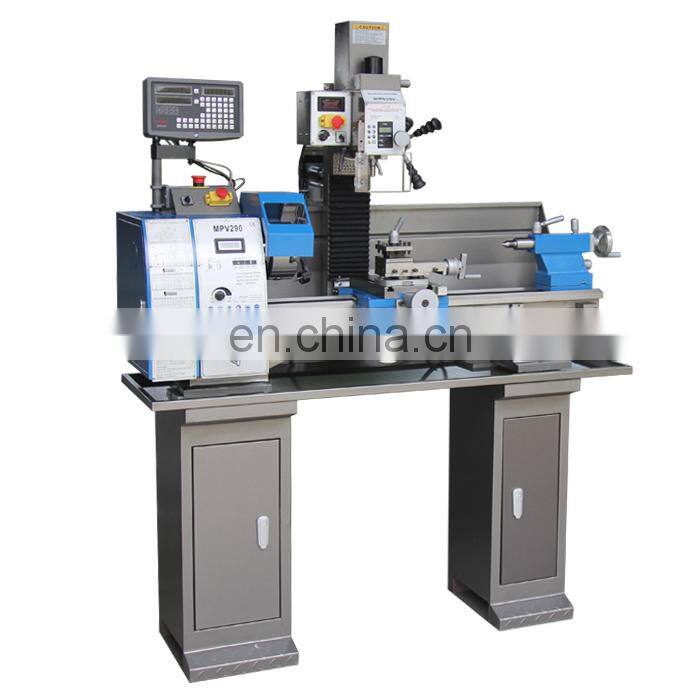

Combined Lathe MPV290

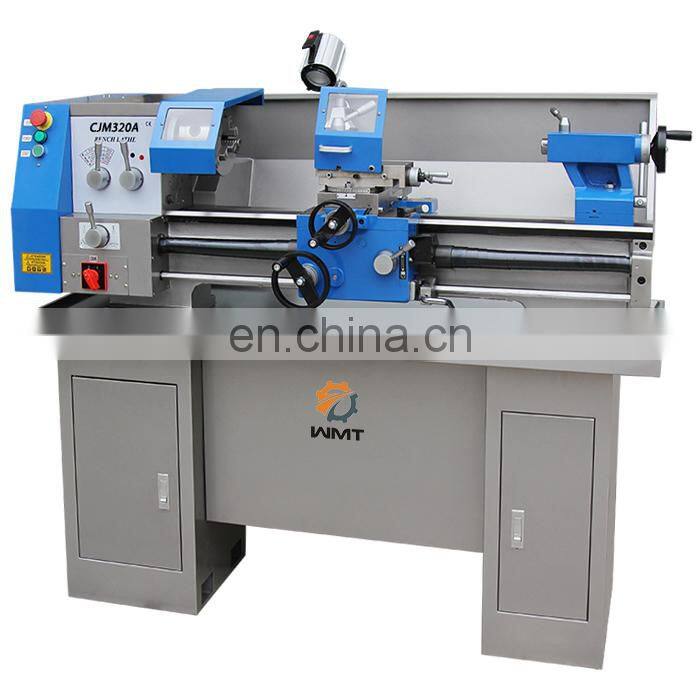

Bench Lathe Machine CJM320A
