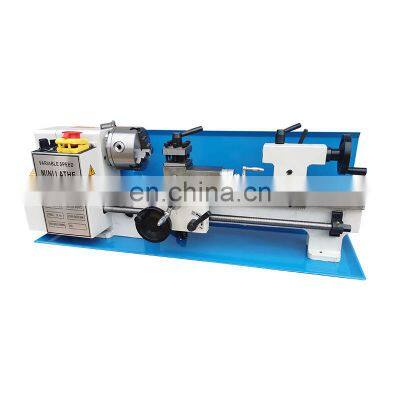

DIY0714 Direct Connect Bench Lathe Machine With 20mm Spindle Bore for School Training and Hobby Users
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIY0714 Direct Connect Mini Bench Lathe Machine With 20mm Spindle Bore for MetalworkingNegotiableMOQ: 1 -
CS6250Bx1000 Engine Lathe Metal Manual Lathe for Metal TurningNegotiableMOQ: 1
-
Gear Head Universal Lathe Machine Engine Lathe CM6241 for Metal TurningNegotiableMOQ: 1
-
CD6260C 80mm Spindle Bore Heavy Duty Horizontal Engine Lathe Manual Lathe MachineNegotiableMOQ: 1
-
C6253 1000/1500/2000 mm Diameter Gap Bed Heavy Duty Metal Horizontal Engine Lathe PriceNegotiableMOQ: 1
Product Description
Mini lathe main features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 50-2500rpm.
6. Easy operating gear box has various feeds and thread cutting function.
7. With or without cabinet according to requirement.
Specification | DIY0708/DIY0712/DIY0714 | DIY0816 |
Distance between centers | 200/300/350mm(8"/11-3/4"/13-3/4") | 400mm |
Swing over bed | φ180mm(7") | 210mm |
Spindle taper | MT3 | MT3 |
Tailstock taper | MT2 | MT2 |
Chuck diameter | φ80mm（3-1/4") | 80mm |
Spindle bore | φ20mm（3/4") | 38mm |
Range of metric threads | 0.5-2.5 | 0.5-3mm |
Range of imperial threads | 12-52T.P.I | 8-44T.P.I |
Spindle speed | 50-2500rpm | 0-2500rpm |
Power of motor | 400/550W | 600w |
Packing size | 660/760/810*310*370mm | 800*450*450mm |
Gross weight | 38/42/45kg | 85/95kg |
Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
