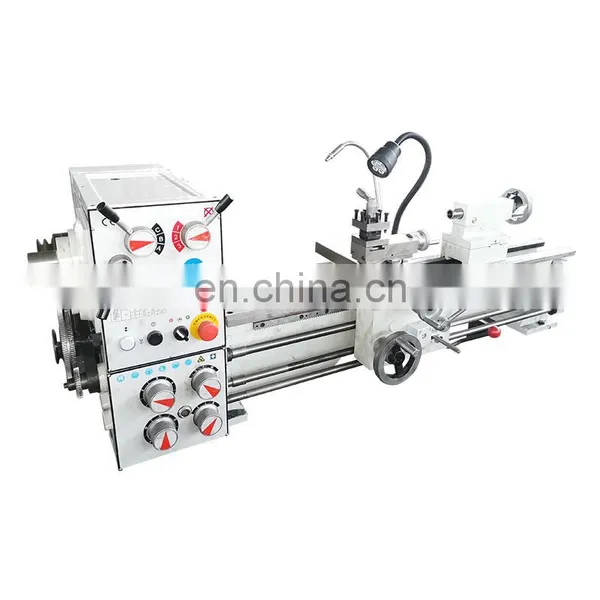

CQ6232 High Quality Bench Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision CNC China Vertical Lathe CK5116 With Competitive PriceNegotiableMOQ: 1 -
Lathe and Milling and Drilling Combine Machine MP500 for Sale in ChinaNegotiableMOQ: 1
-
C6246Dx1500 Engine Lathe Machine for Metal Working With High QualityNegotiableMOQ: 1
-
Gear Head Universal Lathe Engine Lathe CM6241x1000 for Metal TurningNegotiableMOQ: 1
-
MPV280 Multi Purpose Lathe Machine From China Factory With High QualityNegotiableMOQ: 1
Features:
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function
Specifications |
CQ6230/CQ6232 |
Max.swing over bed |
Φ300mm(12")/320mm(12-4/5")) |
Max.swing over cross slide |
Φ180mm(7")/198mm(7-25/32") |
Max. swing over gap |
Φ430mm(17")/476mm(18-3/4") |
Distance between centers |
750/910/1000mm(30"/36"/40") |
Spindle bore |
Φ38mm(1-1/2") |
Taper of spindle bore |
MT5 |
Range of spindle speeds |
65-1400)rpm or 65-1810rpm |
Range of longitudinal feeds |
0.079-1.291mm/rev(0.003"-0.0508"/rev) |
Range of cross feeds |
0.017-0.276mm/rev(0.0007"-0.0108"/rev) |
Metric threads can be cut |
0.4-7mm |
Inch threads can be cut |
4-60 T.P.I. |
Max. travel of tail stock quill |
100mm(4") |
Taper of tail stock |
MT3 |
Motor power |
1.1kw/1.5kw |
Gross weight |
550/590/670kg |
Net weight |
500/540/620kg |
Packing size |
1480/1680/1940×750×1400mm |
