Lathe Machine CW61125B Heavy Duty Horizontal Metal Lathe Machine With ISO9001
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIY0708 Parallel Lathe Mini Metal Lathe Machine for Household UseNegotiableMOQ: 1 -
Manual Lathe Machine MPV250 10\" x 30\" High Precision Variable Speed Combo Lathe for Metal WorkingNegotiableMOQ: 1
-
DIY0714 Mini Metal Lathe Machine Metalworking Metal Gears Bench LatheNegotiableMOQ: 1
-
D280x700G Cheap Hobby Bench Lathe Machine Price With CENegotiableMOQ: 1
-
Hot Sell D280x700V Micro Mini Small Hobby Lathe Machine Price With CENegotiableMOQ: 1
Product Description
Machine Features:
1. The heavy horizontal lathe machine is especially designed for big workpiece cutting;2. All gears hardened with precision guideway.
Specification | CW61125B |
Swing over bed | 1250mm |
Bed width | 755mm |
Workpiece length | 1500/ 3000/ 5000/ 6000/ 8000/ 15000mm |
Swing over toolpost | 865mm |
Max. turning length | 1300/ 2800/ 4800/5800/7800/14800mm |
Toolpost feed kinds each spindle rotate | 56 kinds |
Toolpost cross feed range each spindle rotate | 0.1-12mm/r |
Toolpost longitudinal feed range each spindle rotate | 0.05-6mm/r |
Upper toolpost | 0.025-3mm/r |
Metric thread | 43 kinds 1-20mm |
Inch thread | 29 kinds 28-3/8 teeth / inch |
Module thread | 45kinds 0.5-60mm |
Pitch thread | 25 kinds 1-56mm |
Spindle bore | 130mm |
Spindle front taper | Metric 140 |
Spindle speed steps and range forward | 21 kinds 2-200r/min |
Reverse | 12 kinds 2.24-178 r/min |
Max.section of tool | 45×45mm |
Toolpost longitudinal travel | 630mm |
Upper toolpost travel | 300mm |
Toolpost rapid movement Longitudinal/Cross/Upper | 3470/1870/935mm/min |
Center sleeve dia and travel | 160×300mm |
Tailstock taper | MT6 |
Tailstock longitudinal movement | ±25 |
Main motor | Y180L-4 22KW |
Main transsion V belt specification | 2143C 2235C 2540C |
Carriage rapid motor | JC02-21-2-1.5KW |
Coolant pump | JCB-45 0.15KW |
Coolant pump flow | 45L/min |

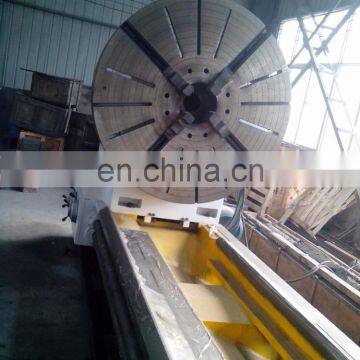

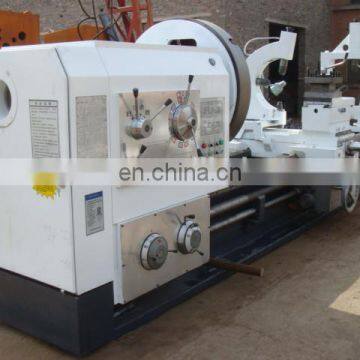

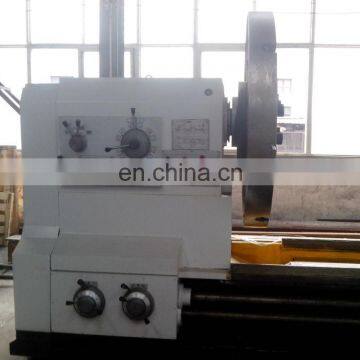

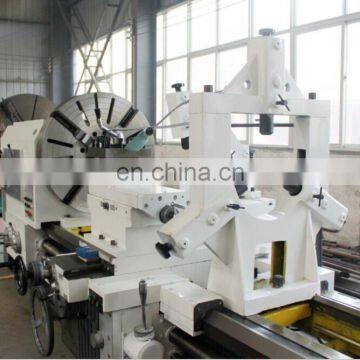

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
