Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > SGL450 Cnc Slant Bed Lathe Price Gang Type Cnc Lathe CNC Turning Machine From Chinese Factory
SGL450 Cnc Slant Bed Lathe Price Gang Type Cnc Lathe CNC Turning Machine From Chinese Factory
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CKX400 Cnc Automatic Lathe Machine Cnc Lathe Machine Flat Bed With X/Z Axis Linear GuidewayNegotiableMOQ: 1 -
35 Degree Slant Bed TX500EY Cnc Lathe Turning Machine Milling Cnc MachineNegotiableMOQ: 1
-
Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And TrainingNegotiableMOQ: 1
-
Cnc Lathe Manufacturers CK6166x3000 Machine Cnc Lathe Cnc Lathe Machine With Fanuc ControlNegotiableMOQ: 1
-
Lathe Machine CK6150 X750 Length Lathe Machining Torno CNC for Threads MakingNegotiableMOQ: 1
Product Description
Specification |
Unit |
SGL450 |
||||||
Capacity |
Chuck/collet |
Hydraulic Collet *Hydraulic Chuck 6",*8" |
||||||
Max. swing dia. over bed |
mm |
φ400 |
||||||
Max. length of workpiece |
mm |
Collet 430, *Chuck 400 |
||||||
Max. swing dia. over silde |
mm |
φ160 |
||||||
Spindle |
Spindle bore |
mm |
φ55 |
*φ62 |
||||
Max. dia. of through-hole |
mm |
φ46 |
*φ52 |
|||||
Spindle nose |
A2-5 |
*A2-6 |
||||||
Max. Spindle speed |
rpm |
4500 |
*2000 *4000 |
|||||
Main motor power |
kW |
5.5/7.5 |
||||||
Axis |
X travel |
mm |
450 |
|||||
Z travel |
mm |
410 |
||||||
X/Z rapid traverse |
m/min |
25/25 |
||||||
Toolpost |
Type |
Gang type |
||||||
No. of tool stations |
No. |
5~9 |
||||||
OD tool and bore tool shank |
mm |
20X20/φ25 |
||||||
Structure |
Inclined bed degree |
45 ̊ |
||||||
Guideway type |
LM |
|||||||
Others |
Power capaticy |
kVA |
12 |
|||||
Dimensions(LxWxH) |
mm |
2000X1800X1950 |
||||||
Weight (about) |
kg |
2800 |
||||||
Structure |
Slant bed degree |
35 |
||||||
Guideway type |
LM |
|||||||
Others |
Power capacity |
kVA |
18 |
|||||
Overall dimension (LxWxH) |
mm |
3380X2000X2350 |
||||||
Weight (about) |
kg |
5600 |
||||||
Note: "*"means optional, "LM" means linear guideway. |
||||||||

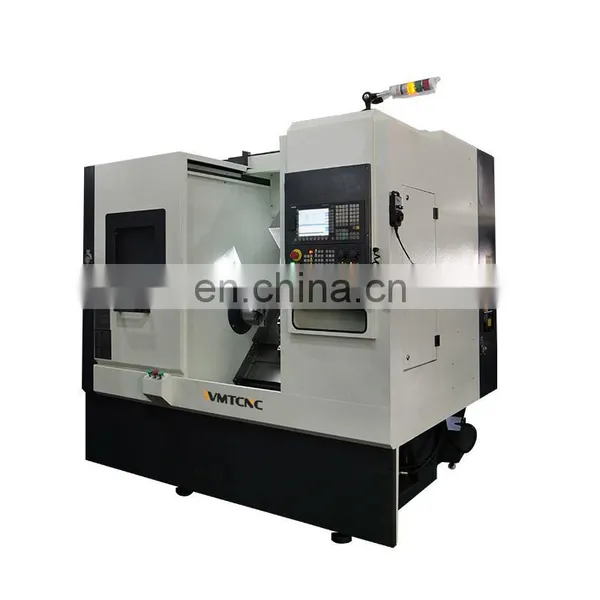

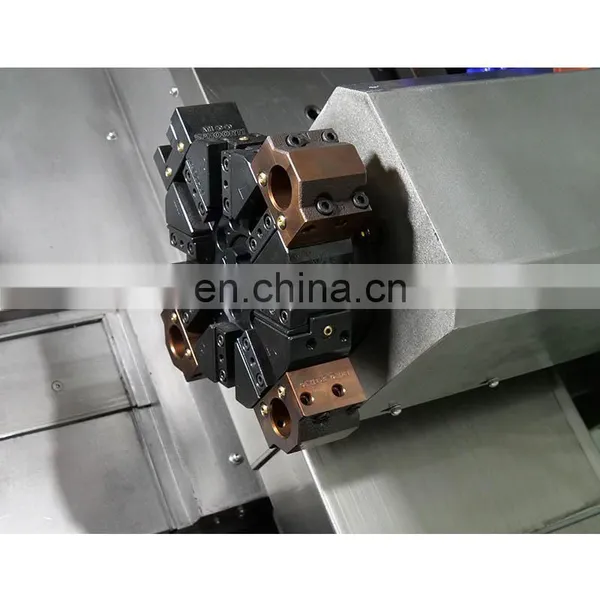

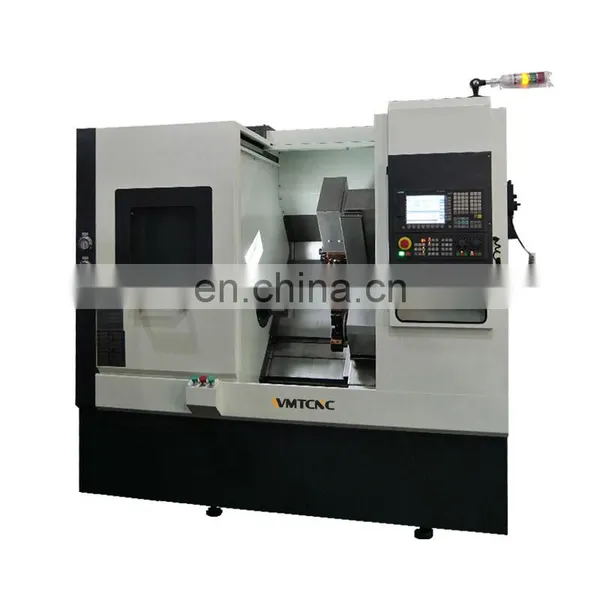

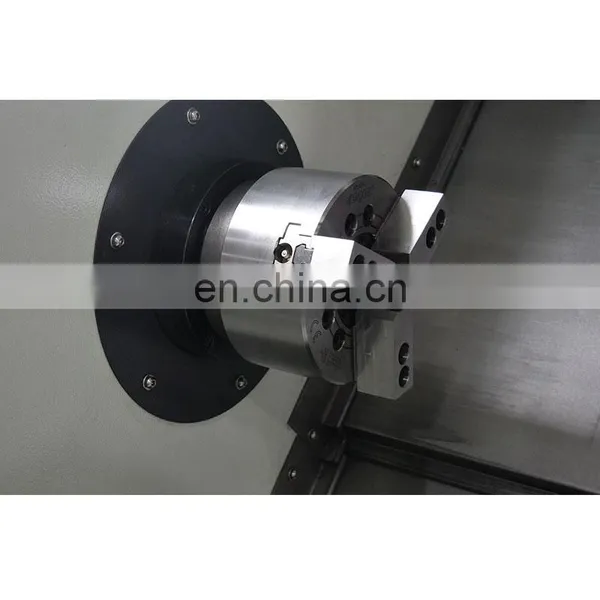

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
