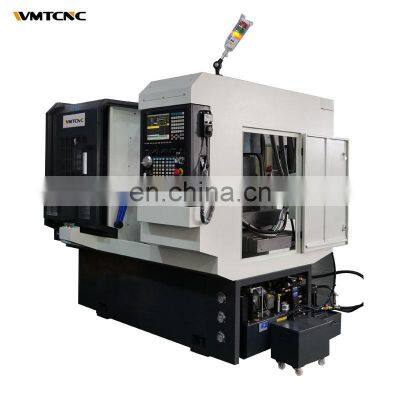

CKX400 Cnc Automatic Lathe Machine Cnc Lathe Machine Flat Bed With X/Z Axis Linear Guideway
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
35 Degree Slant Bed TX500EY Cnc Lathe Turning Machine Milling Cnc MachineNegotiableMOQ: 1 -
Desktop CNC Lathe Machine CNC210 With Siemens808D For Hobby School And TrainingNegotiableMOQ: 1
-
Cnc Lathe Manufacturers CK6166x3000 Machine Cnc Lathe Cnc Lathe Machine With Fanuc ControlNegotiableMOQ: 1
-
Lathe Machine CK6150 X750 Length Lathe Machining Torno CNC for Threads MakingNegotiableMOQ: 1
-
CAK6166 CNC Lathe Machine for Making ThreadsNegotiableMOQ: 1
Product Description
Specification | Unit | CKX400 | ||||||
Capacity | Chuck/collet | type | Manual chuck 8" *Hydraulic chuck 8",*6" | |||||
Bed type/guideway | Flat/LM | |||||||
Max. swing dia.over bed | mm | φ400 | ||||||
Max. length of workpiece | mm | 320 | ||||||
Max. swing dia.over slide | mm | φ180 | ||||||
Spindle | Spindle bore | mm | φ62 | φ48 | ||||
Max. dia.of through hole | mm | φ52 | φ40 | |||||
Spindle nose | A2-6 | A2-5 | ||||||
Spindle speed | rpm | 2000 *4000 | 3000 *4500 | |||||
Spindle motor power | kW | 5.5/7.5 | ||||||
Axis | X/Z travel | mm | 380/350 | |||||
X/Z rapid traverse | m/min | 20/20 | ||||||

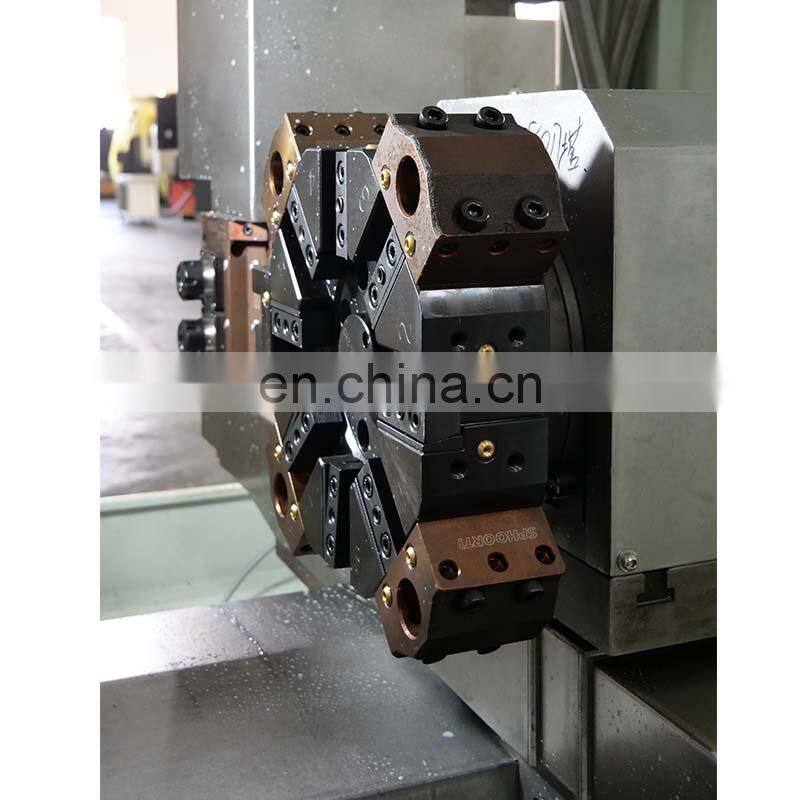

Toolpost | Type | 4-station toolpost *8-station turret *Gang type tooling | ||||||
No. of tool stations | No. | 4-10 | ||||||
Others | Power capacity | kVA | 11 | |||||
Dimension(LxWxH) | mm | 1950X1250X1620 | ||||||
Weight (about) | kg | 2000 | ||||||
Note: "*"means optional, "LM" means linear guideway. | ||||||||

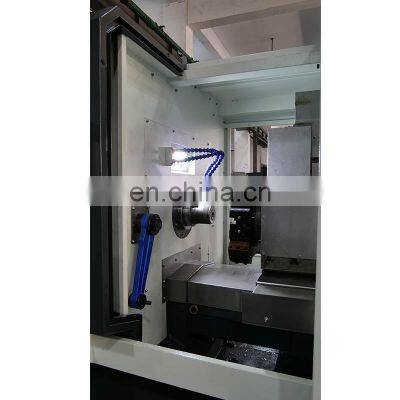

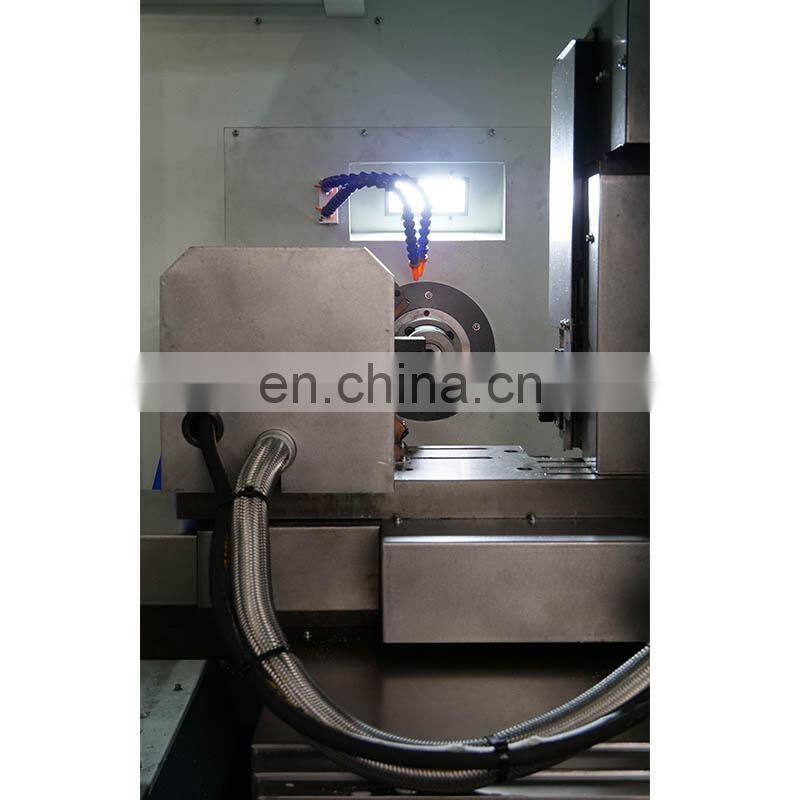

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
