Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > Desktop Cnc Lathe Small CNC210 Parallel Lathe for School Education and Hobby Users

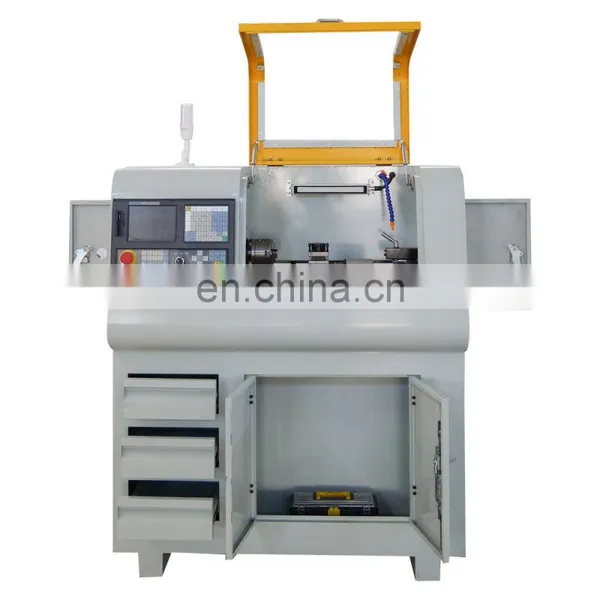

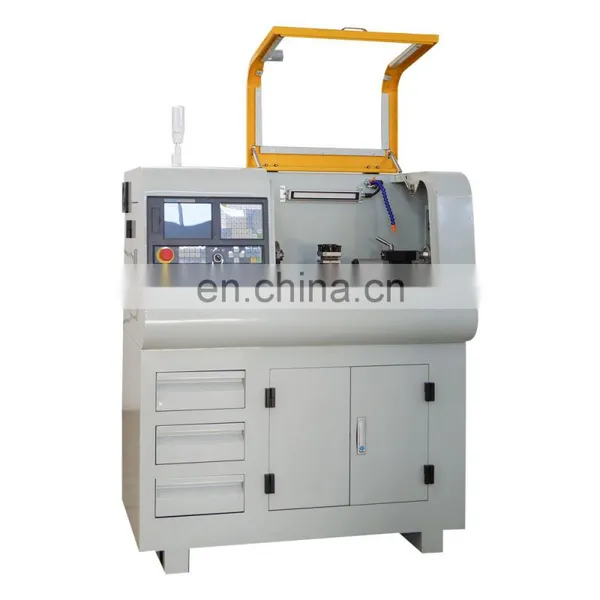

Desktop Cnc Lathe Small CNC210 Parallel Lathe for School Education and Hobby Users
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Parallel Lathe Metal Cnc Lathe CK6132X500 Good Rigid Lathe Machine Cnc With CENegotiableMOQ: 1 -
Parallel Lathe Mini Lathe Machine Cnc CNC210 Benchtop Cnc Lathe MachineNegotiableMOQ: 1
-
Lathe Machine STL420 China CNC Slant Turning Lathe Machine for MetalNegotiableMOQ: 1
-
Lathe Machine CK5116 Single Column CNC Vertical Lathe Machine for Heavy CuttingNegotiableMOQ: 1
-
Parallel Lathe CK6150 X750 Length Torno CNC for Threads MakingNegotiableMOQ: 1
Products Description
CNC mini lathe machine CNC210 with below features:
1. The machine can process precisely internal or external diameter, face, taper and threading with high efficiency.
2.DC brushless spindle motor.
3. Small occuping, lower energy consumption,easy operation, suitable for small processing.

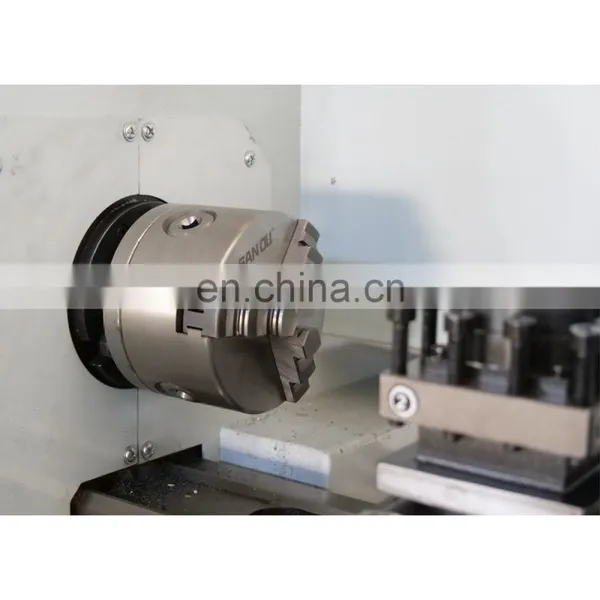

4. High-quality spindle by high-precision grinding and support by Angular contact bearin.
5. Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine.
6. Macro arithmetic operation can be performed, the processing of complex parts, fully functional, economical and practical with a textbook for teaching.
Specification |
CNC210 |
Max swing over bed |
210mm |
Max.swing over carriage |
100mm |
Max.length of work pieces |
250mm |
Spindle bore |
26mm |
Spindle taper |
MT4 |
Spindle speed |
100-3000rpm |
Metric thread cutting |
0.25-4mm |
Inch thread cutting |
6-80TPI |
Electric toolpost |
4-position |
Gangtool bar size |
12mm |
X Travel |
90mm |
Z travel |
300mm |
X Moving speed |
2000mm/min |
Z Moving speed |
2000mm/min |
Spindle motor power |
1.1kw |
X Motor power |
2NM |
Z Motor power |
2NM |
Mini setting unit |
0.001mm |
Tailstock diameter |
22m |
Tailstock Travel |
50mm |
Tailstock taper |
MT2 |
Overall size |
1185X930X1440mm |
Net weight |
300kgs |
Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
