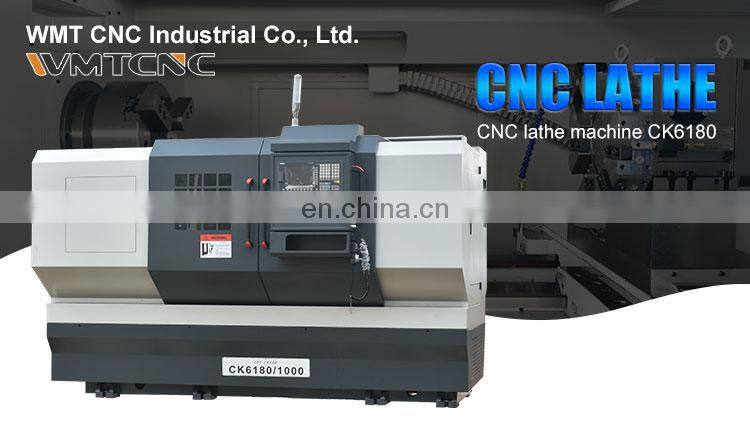

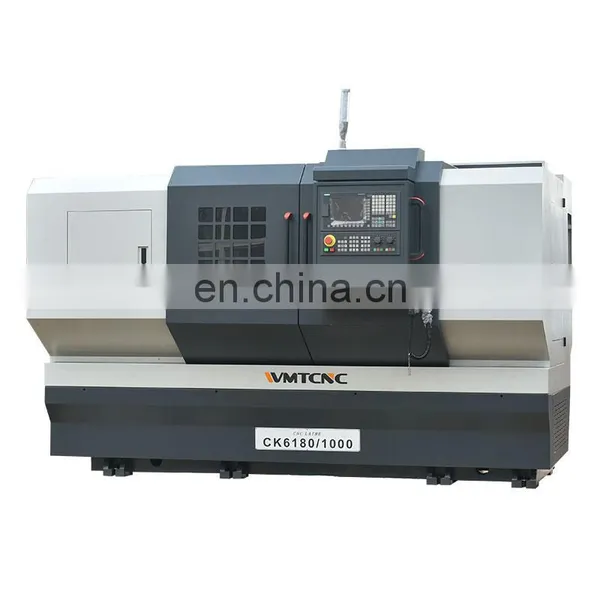

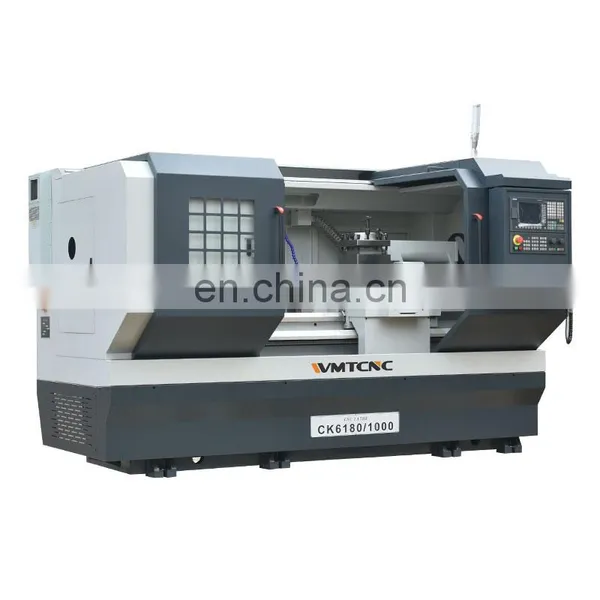

CK6180 High Quality CNC Lathe Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC210 Benchtop Cnc Lathe for School Training and Hobby UsersNegotiableMOQ: 1 -
360 mm CK6432 Benchtop China Cnc Lathe Machine With Bar Feeder for Industrial WorkNegotiableMOQ: 1
-
Fanuc Cnc Lathe CK6166 1000mm Automatic Horizontal Cnc Lathe Machine for Metal TurningNegotiableMOQ: 1
-
China Hot Sale CK35L Slant Bed Cnc Lathe With High QualityNegotiableMOQ: 1
-
CK36L Mini Slant Bed Cnc Lathe Machine for Metal ThreadingNegotiableMOQ: 1

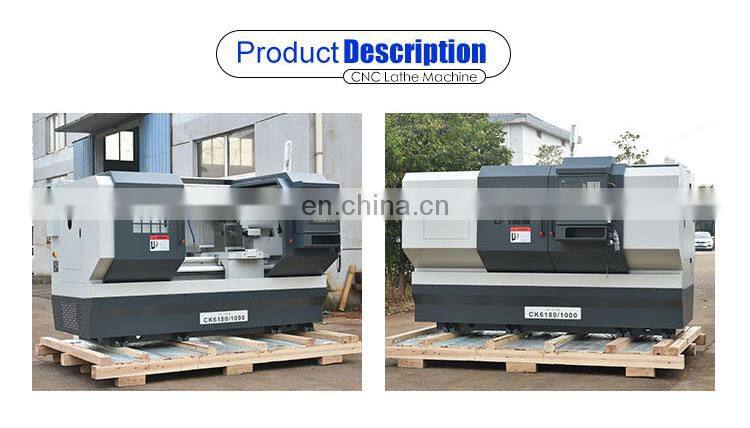

Products Description
Specification |
CK6180 |
Max.swing over bed |
Ф800mm |
Max.swing over carriage |
Ф560mm |
Max. cutting length |
1500/2000/3000mm |
Rail width |
460mm |
Spindle nose |
A2-8 or A2-11 |
Spindle bore |
Ф86mm or Ф105mm |
Taper of spindle bore |
Ф90mm 1:20 or Ф110mm 1:20 |
Chuck size |
15" |
Range of spindle speed |
100-1600 or 3 steps:30-150，,10-500,150-1200rpm |
X-axis travel |
380mm |
Z-axis travel |
1500/2000/3000mm |
X/Z rapid speed |
5/8m/min |
X/Z screw |
3206/5010 |
Electronic turret |
4 or 6 or 8 |
Max.section of tool |
25x25mm |
Stroke of tailstock sleeve |
235mm |
Diameter/Hole of tailstock sleeve |
Ф90mm/MT5 |
Main motor power |
11kw |
Coolant pump power |
250w |
Overall dimensions L x W x H |
3320/3830/4830x1600x1830mm |
Packing size L x W x H |
3520/4030/5030x1760x2030mm |
Net weight |
4100/4600/5400kg |
Gross weight |
4500/5000/6000kg |

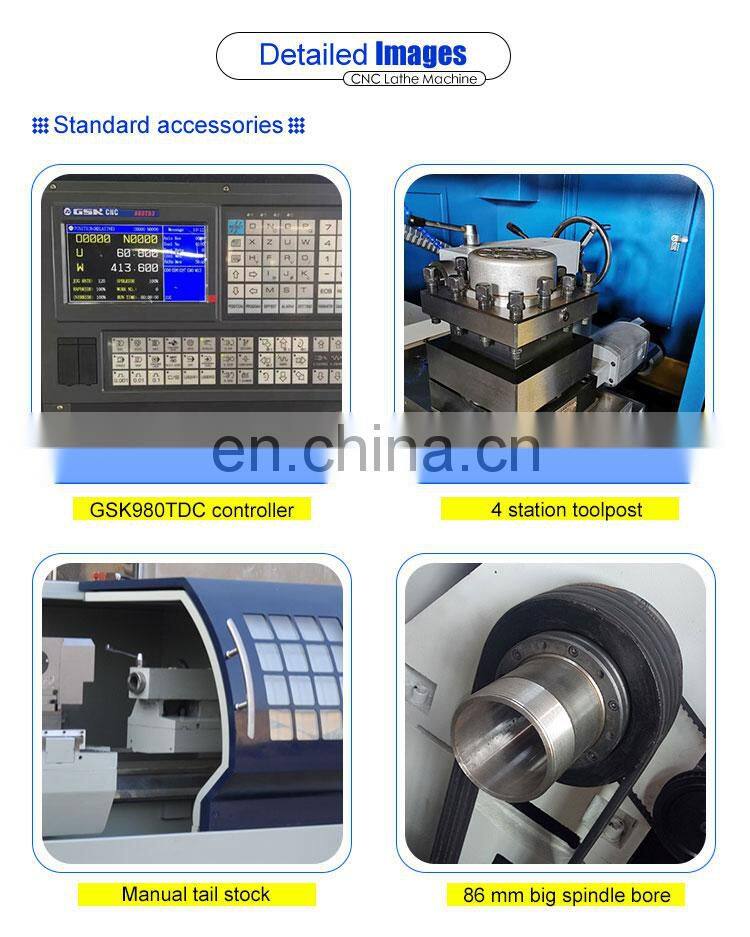

Details Images

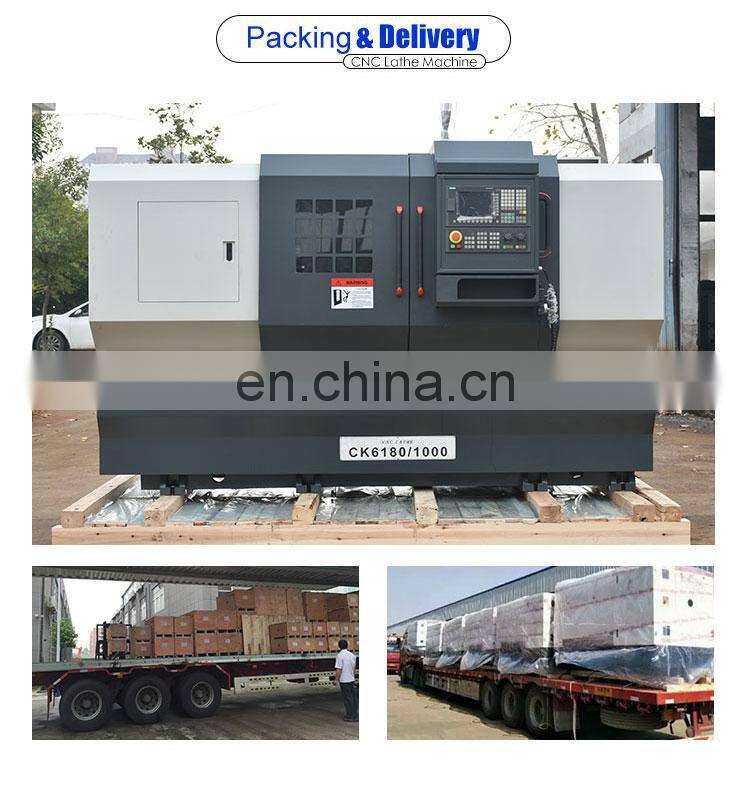

Package&Delivery
Company Profile
FAQ
Send Inquiry to This Supplier
4Yrs
Business Type
Manufacturer
Year Established
2018
Factory Size
Below 1,000 square meters
Annual Export Value
US$1.5 Million - US$2.5 Million
