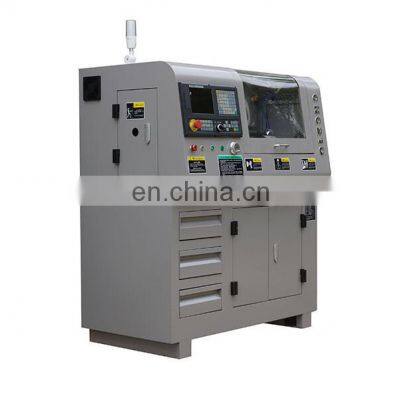

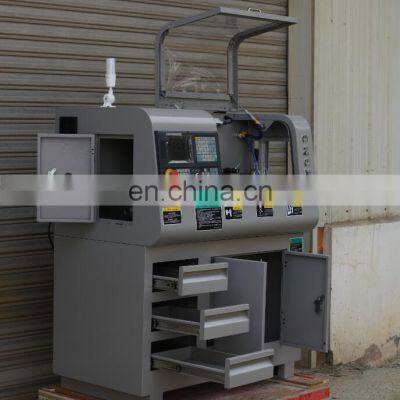

CNC210 benchtop cnc lathe for school training and hobby users

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

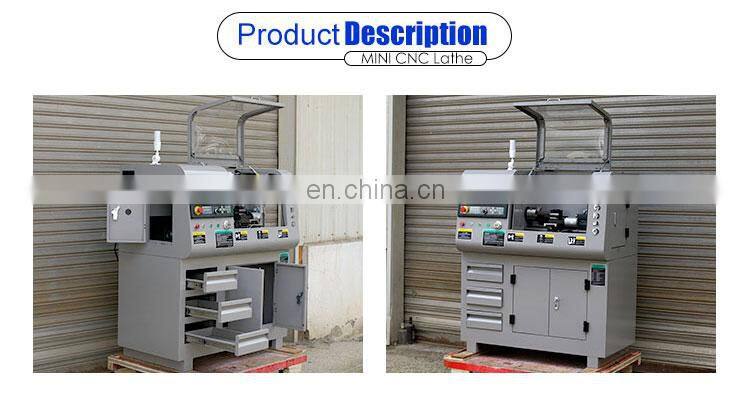

CNC mini lathe machine CNC210 with below features:

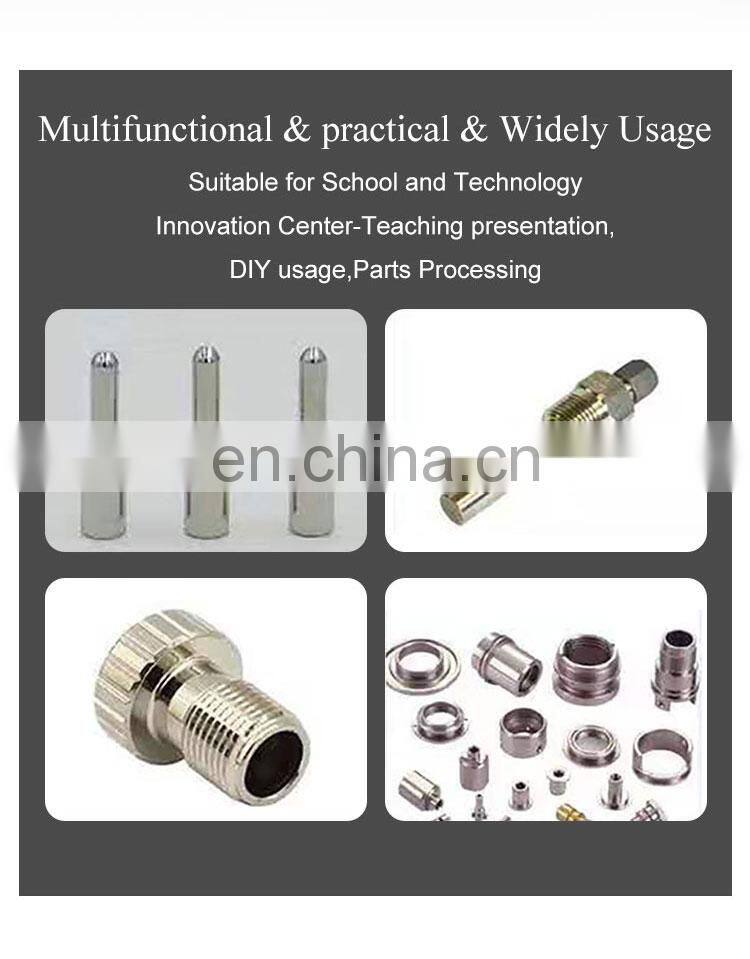

1. The machine can process precisely internal or external diameter, face, taper and threading with high efficiency.
2. DC brushless spindle motor.
3. Small occuping, lower energy consumption, easy operation, suitable for small processing.
4. High-quality spindle by high-precision grinding and support by Angular contact bearin.
5. Induction harden bed-way, Bed saddle with plastic sticker can improve the accuracy and service life of machine.

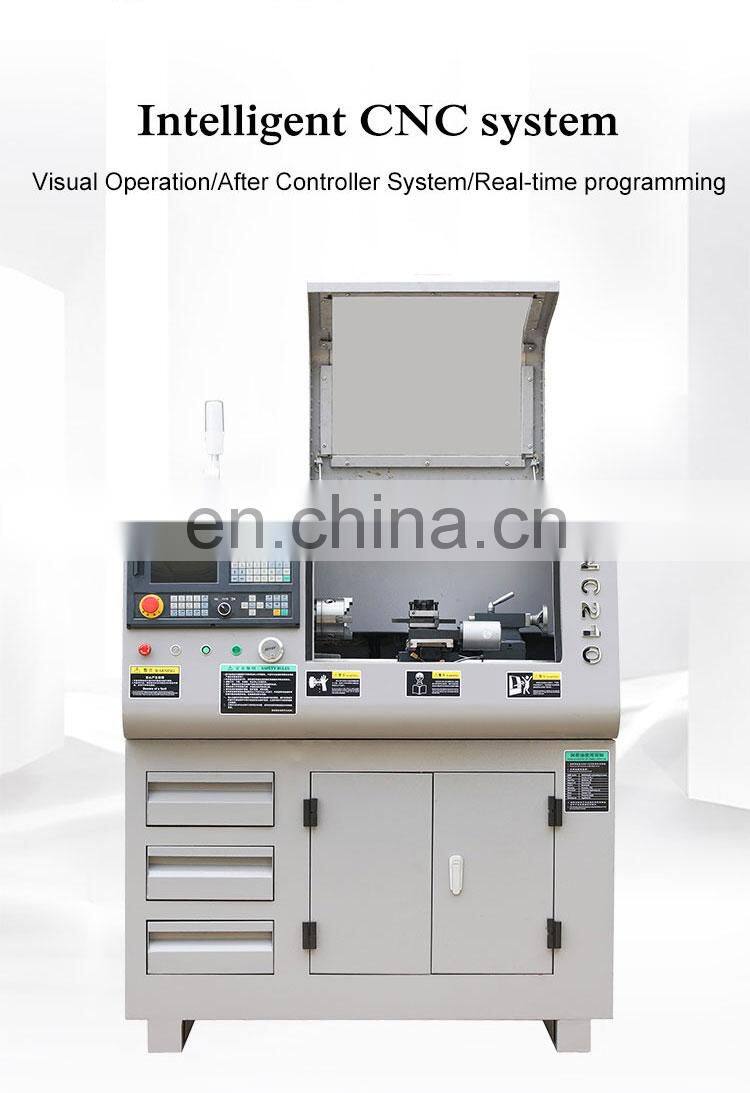

6. Macro arithmetic operation can be performed, the processing of complex parts, fully functional, economical and practical with a textbook for teaching.

Specification	CNC210
Max swing over bed	210mm
Max.swing over carriage	100mm
Max.length of work pieces	250mm
Spindle bore	26mm
Spindle taper	MT4
Spindle speed	100-3000rpm
Metric thread cutting	0.25-4mm
Inch thread cutting	6-80TPI

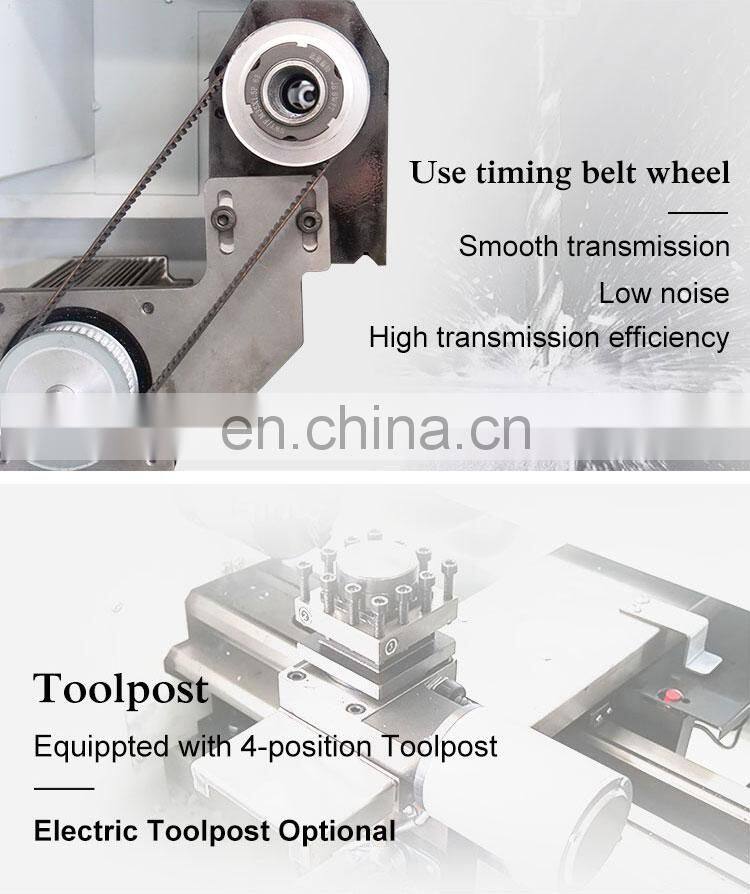

Electric toolpost	4-position
Gangtool bar size	12mm
X Travel	90mm
Z travel	300mm
X Moving speed	2000mm/min
Z Moving speed	2000mm/min
Spindle motor power	1.1kw
X Motor power	2NM
Z Motor power	2NM
Mini setting unit	0.001mm

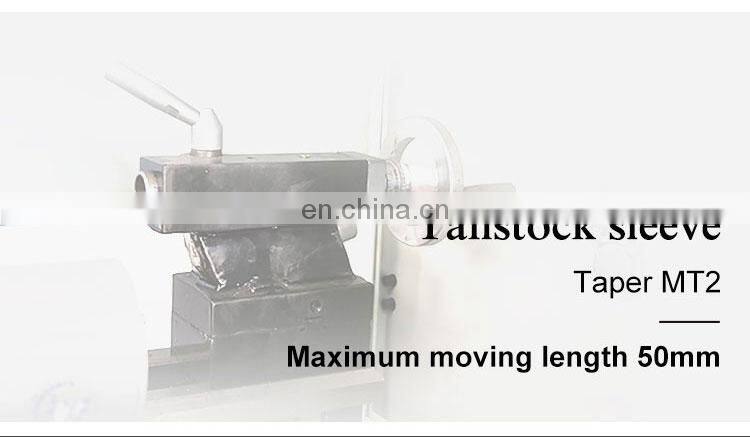

Tailstock diameter	22m
Tailstock Travel	50mm
Tailstock taper	MT2
Overall size	1185X930X1440mm
Net weight	300kgs

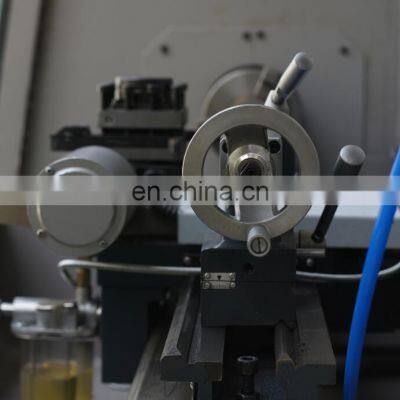

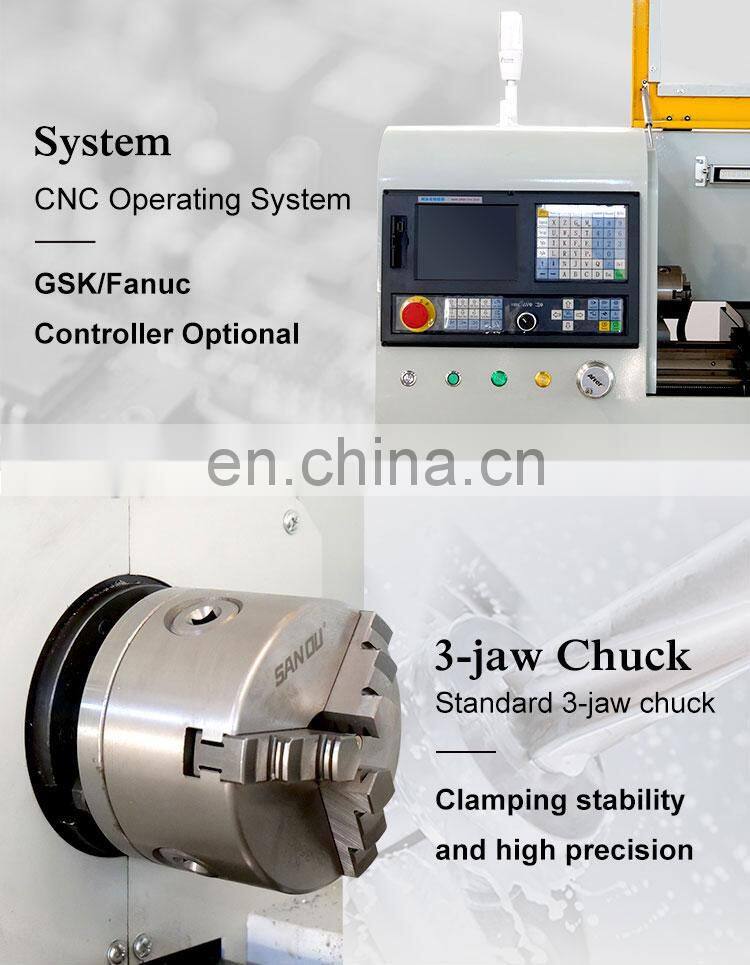

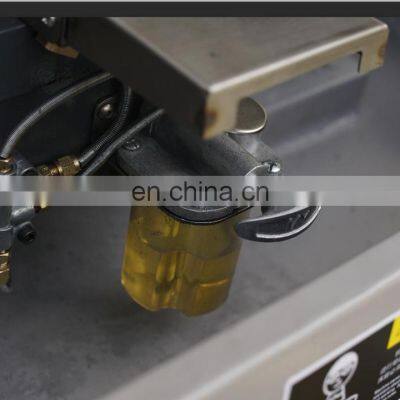

Details Images

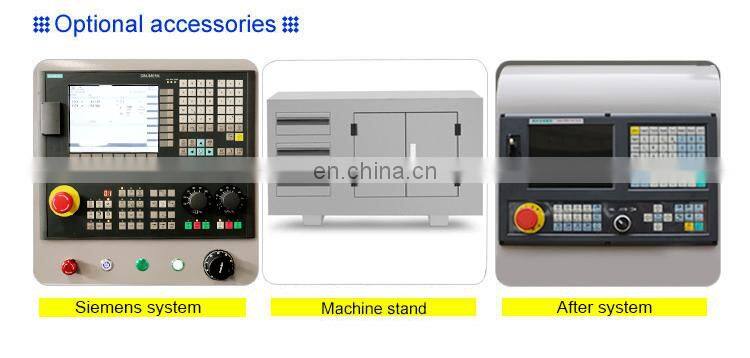

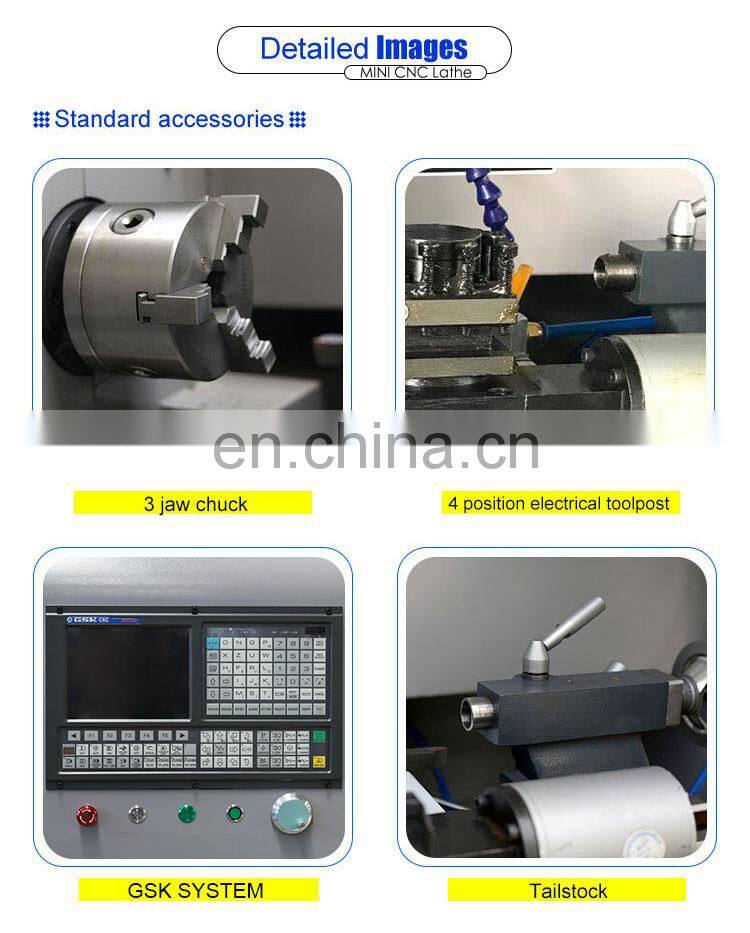

Machine Accessories

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
