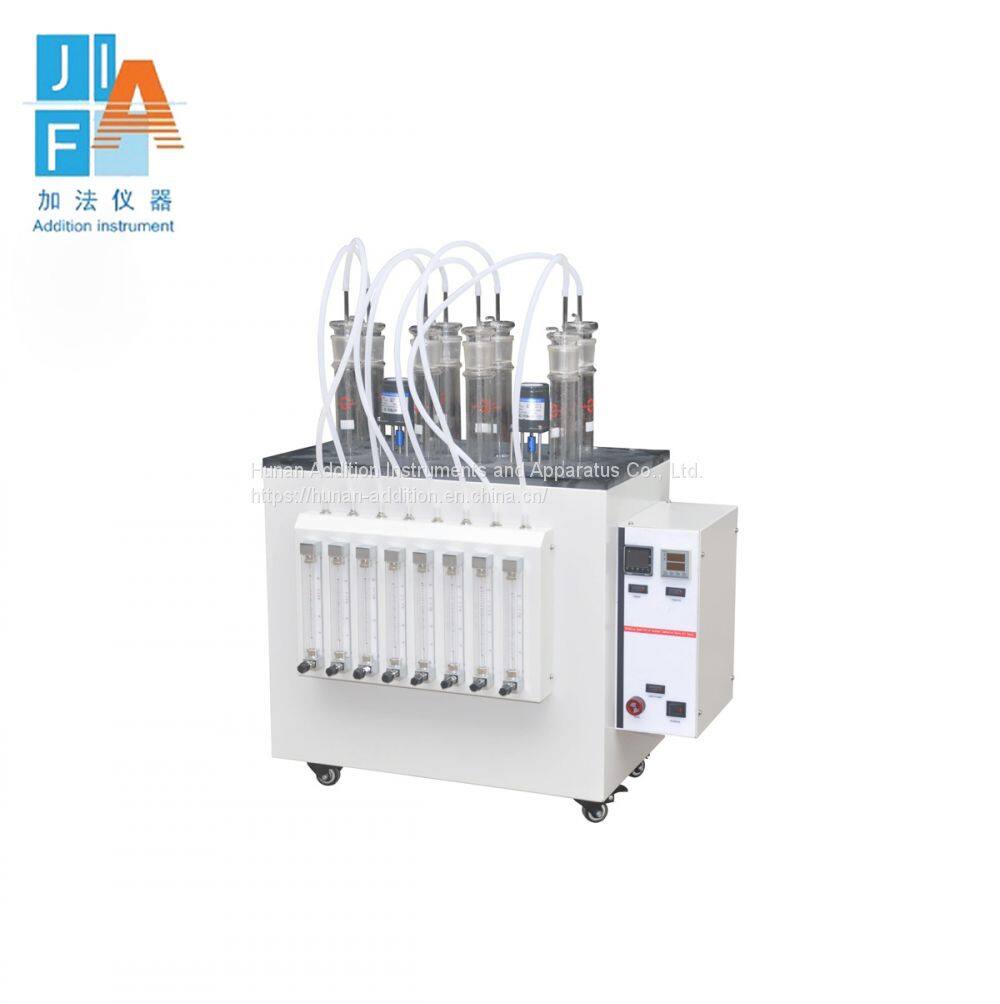

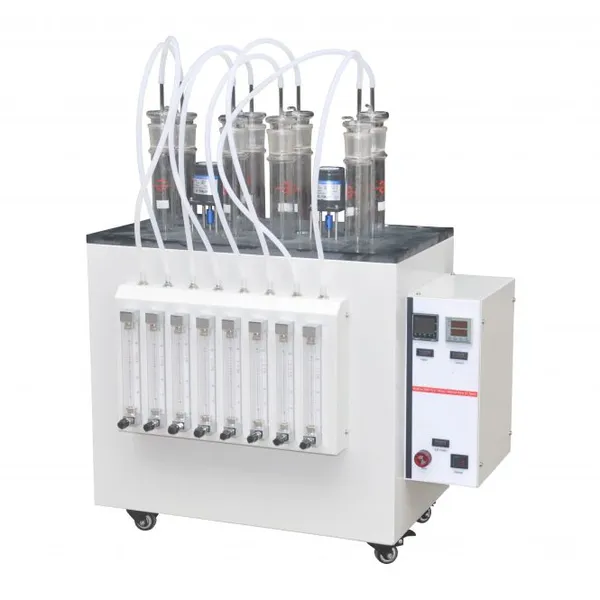

Internal Combustion Engine Oil Oxidation Stability Tester

Internal Combustion Engine Oil Oxidation Stability Tester

Product Model: JF0299

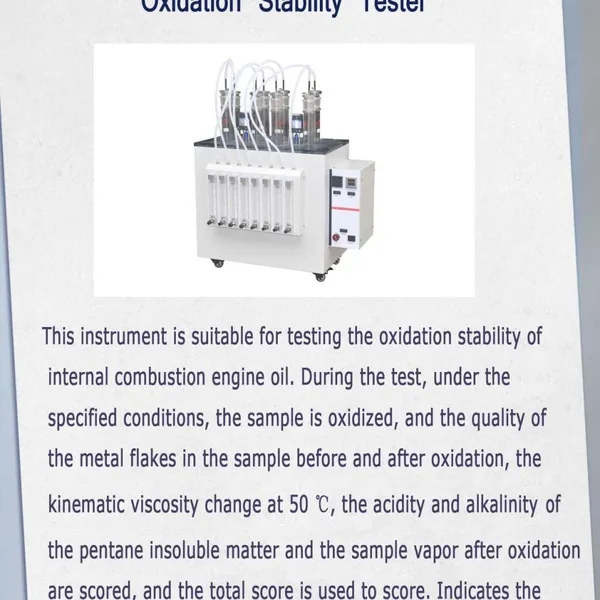

Instrument Introduction

This instrument is suitable for testing the oxidation stability of internal combustion engine oil. During the test, under the specified conditions, the sample is oxidized, and the quality of the metal flakes in the sample before and after oxidation, the kinematic viscosity change at 50 ℃, the acidity and alkalinity of the pentane insoluble matter and the sample vapor after oxidation are scored, and the total score is used to score. Indicates the oxidation stability of the sample. The lower the overall score, the better the oxidative stability.

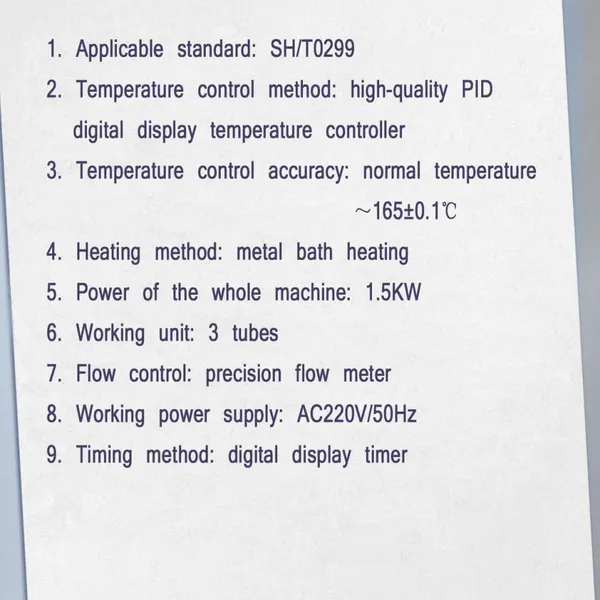

Product parameter

1. Applicable standard: SH/T0299

2. Temperature control method: high-quality PID digital display temperature controller

3. Temperature control accuracy: normal temperature~165±0.1℃

4. Heating method: metal bath heating

5. Power of the whole machine: 1.5KW

6. Working unit: 3 tubes

7. Flow control: precision flow meter

8. Working power supply: AC220V/50Hz

9. Timing method: digital display timer

Features

1. The instrument is a benchtop, including a heating bath and a flowmeter. There is a hole in the stainless steel cover, which can be put into the sample bottle;

2. Stainless steel structure with ceramic coating;

3. Environmentally friendly metal bath heating, reducing the harm of oil fume to the human body, and efficient thermal insulation effect;

4. Stainless steel heater;

5. Very high flow meter, with needle valve, flow rate 0~200mll/min;

6. Air filter with glass wool;

7. Microprocessor thermostat and PID control, digital display temperature, accuracy 0.1℃, Pt100 RTD temperature probe;

8. Operating temperature range: room temperature ~ 200°C; safety measures to prevent overheating or low liquid level.
