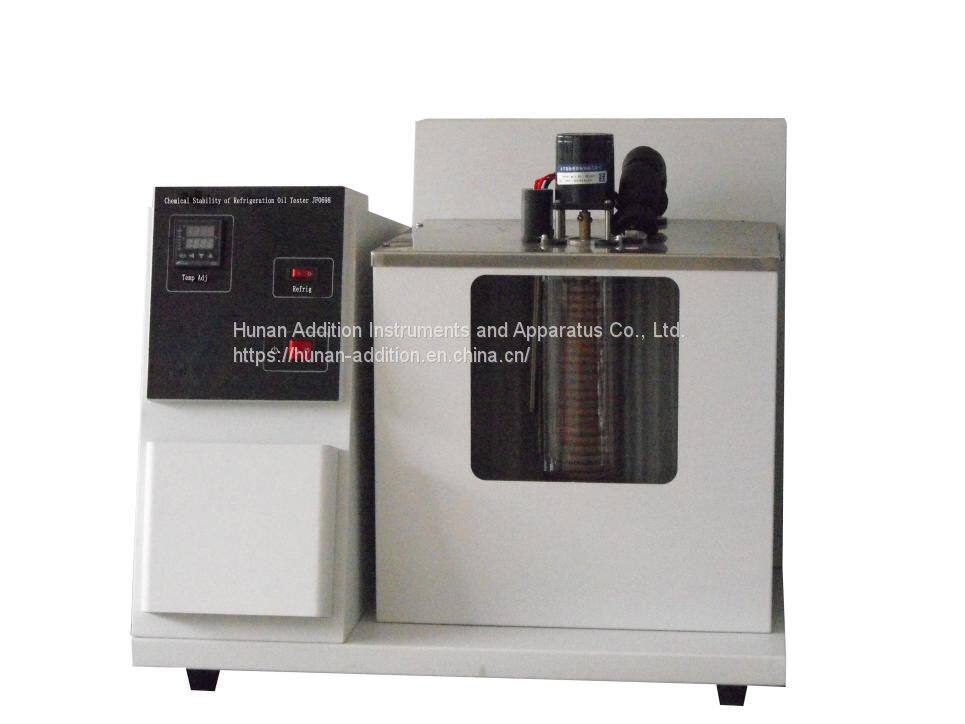

Chemical Stability Analyser Refrigeration Oil Tester

Chemical Stability of Refrigeration Oil Tester

 Product model: JF0698

Product Introduction

Metal materials such as steel and copper are put into special test tubes as catalysts, and a certain amount of refrigerating machine oil and refrigerant are injected in proportion, and then the test tubes are sealed. After heating the sealed test tube at a constant temperature for a predetermined time, the chemical stability of the refrigerator oil and the refrigerant was evaluated based on the appearance and color of the refrigerator oil and the catalyst. This instrument is suitable for refrigeration oil with R-12 or R-134a as refrigerant.

Technical Parameter

1. Applicable standard: SH/T0698

2. Heating method: metal bath heating

3. Timing method: digital display timer

4. Refrigeration method: compressor refrigeration

5. Temperature control method: digital display PID temperature controller

6. Refrigeration temperature: -60℃±1℃

7. Vacuum display: vacuum pressure gauge

8. Heating temperature: 175±1℃

9. Circulation mode: magnetic pump circulation

10. Vacuum degree: 50μmHg

11. Power of the whole machine: 1.5KW

12. Working power supply: AC220V/50HZ

13. Instrument size: low temperature bath: 670*910*520mm;

High temperature bath: 540*420*940mm

Net weight: low temperature bath: 70KG; high temperature bath: 50KG

Performance characteristics

1. The glass test tube meets the standard requirements, made of borosilicate glass: 9×7×180mm;

2. Double compressor cascade refrigeration, Dewar bottle is used as a cold bath, and the thermal insulation effect is good;

3. The refrigerant filling system has a filter drier, which can fill four test bottles;

4. The vacuum pressure ratio shows the degree of vacuum;

5. The metal heating aluminum block has 12 heating holes;

6. Metal wire: Ф1.6×50mm, copper wire Ф1.6×10mm;

7. The filling system is evacuated by a vacuum pump;

8. Microcomputer temperature controller, digital display, accuracy ±1℃ PT100 sensor;

9. Digital timer, record test time with alarm.
