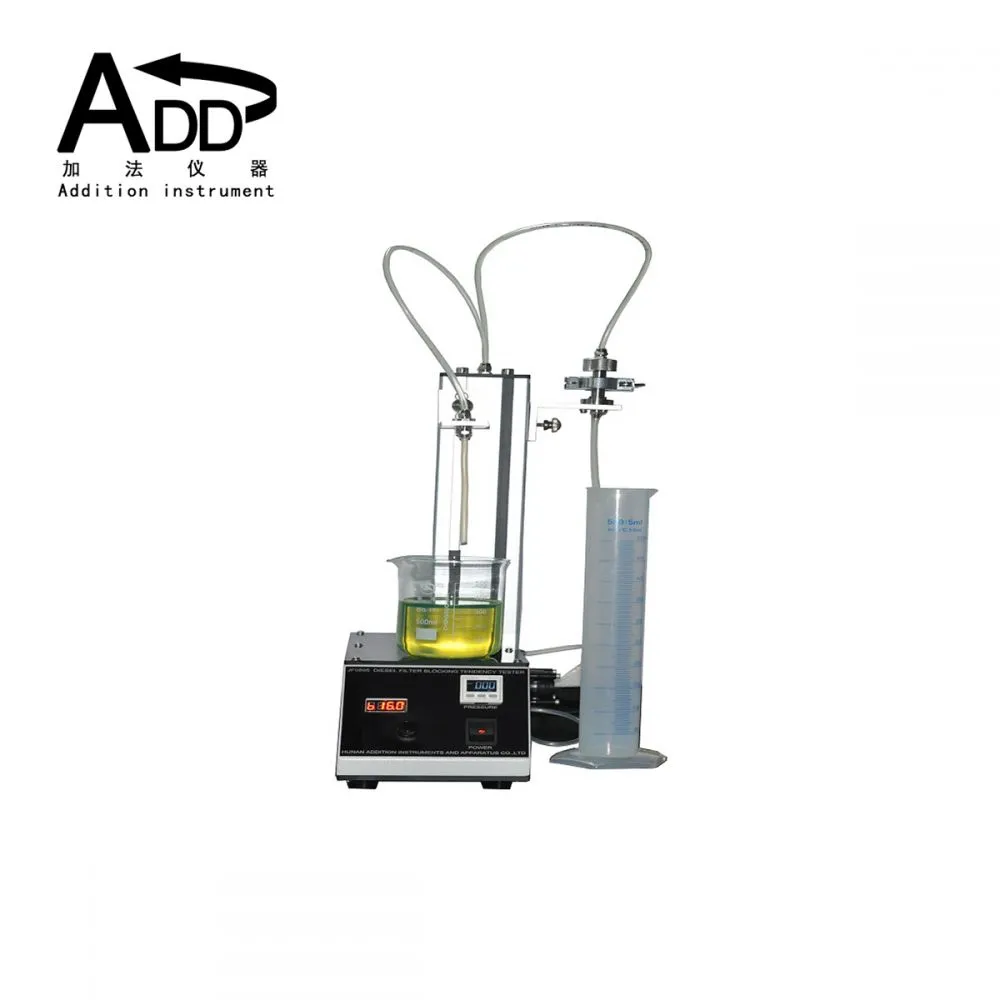

ASTM D2068 Filter Plugging Tendency of Distillate Fuel Oils Tester

Product model: JF0895

Instrument introduction

The testing principle of this instrument: The sample is passed through the specified filter medium at a constant flow rate (20 ml/min). The pressure difference across the filter, and the volume of fuel passing the filter, are monitored until the pressure reaches 105 kPa or the volume of fuel passing the filter medium reaches 300 mL. The pressure and flow are then used to calculate the filter blocking tendency, where a low number indicates a good fuel.

Technical Parameter

1. Applicable standards: ASTM D2068, SH/T0895,

2. Pressure range: 0~105KPA

3. Pressure resolution: 1kpa

4. Sample flow rate: 20ml/min

5. Filter membrane: 1.6μm, GF/A grade glass fiber

6. Flow control: Infinitely variable speed control

7. Flow calibration: Programmable

8. Working power supply: AC220V 50HZ

9. Power of the whole machine: 200W

10. Instrument size: 300*450*610mm

11. Net weight: 20KG

Main Feature

1. The instrument adopts standard regulation A method with all stainless steel filtration chamber.

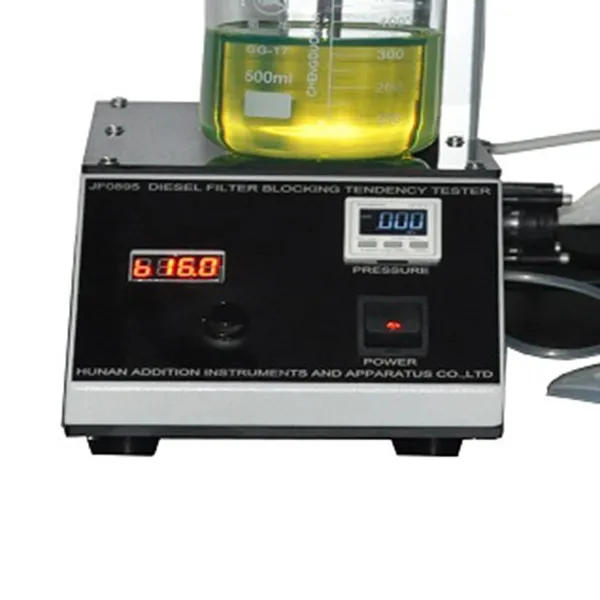

2. Digital display of test pressure.

3. Quick-disconnecting chamber, easy to operate.

4. Built-in pulse type damper to achieve the role of balancing pressure.

5. Safety protection measures, automatic stop when the pressure reaches 105KPA.

6.  Accurate metering pump to ensure stable flow rate.
