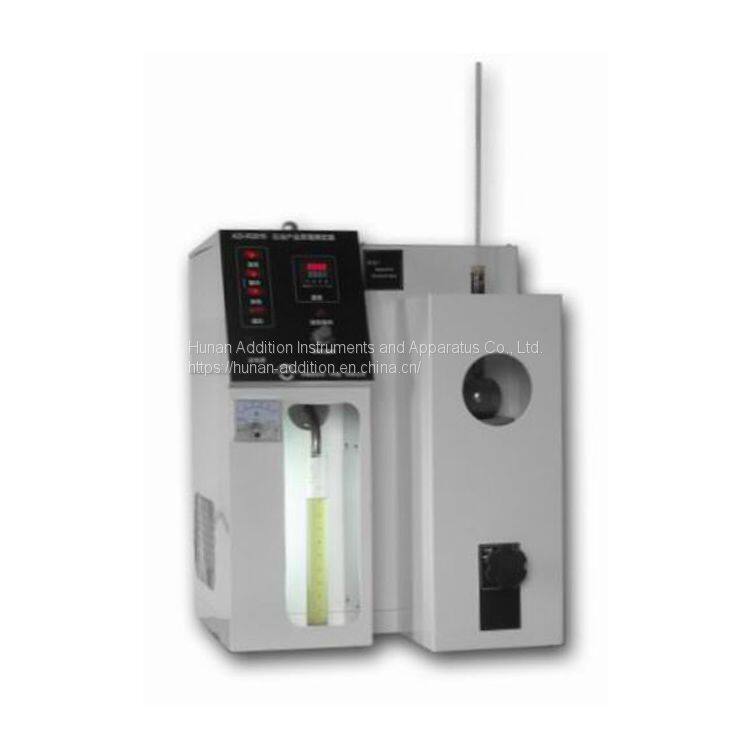

ASTM D86 Distillation of Petroleum Products Tester

Distillation of Petroleum Products Tester

Product Model: JF6536A

 Product Introduction

This instrument is suitable for testing the distillation of natural gasoline, motor gasoline, aviation fuel, jet fuel, naphtha, petroleum spirit, kerosene, diesel and other similar petroleum products. In operation, a certain amount of sample is distilled under specified conditions suitable for its properties. The thermometer readings and condensate volume are systematically observed, and based on these data, calculations are made and the results reported.

Technical Parameter

1. Applicable standard: ASTM D86 ISO3405 NFM07002 GB/T6536

2. Temperature control method: high-quality PID digital temperature controller

3. Temperature control accuracy: ±1℃

4. Heating method: electric heating rod heating

5. Power of the whole machine: 3000W

6. Working unit: Single-pipe

7. Circulation mode: self-priming pump circulation

8. Working power supply: AC220V/50Hz

9. Temperature range: 0~80℃

10. Refrigeration method: compressor refrigeration

11. Instrument size: 830*560*630mm

12. Net weight: 60KG

 Main Feature

1. The instrument is an integral type, which can do gasoline and diesel experiments at the same time.

2. Built-in self-priming pump imported from Taiwan for circulation to ensure that the switching experiment temperature can be completed within 5 minutes;

3. The thermostats of the hot bath and the cold bath are controlled separately;

4. Stainless steel heater;

5. Fully enclosed compressor refrigeration;

6. Built-in fan cooling distillation furnace;

7. PID thermostat, digital display temperature, accuracy
