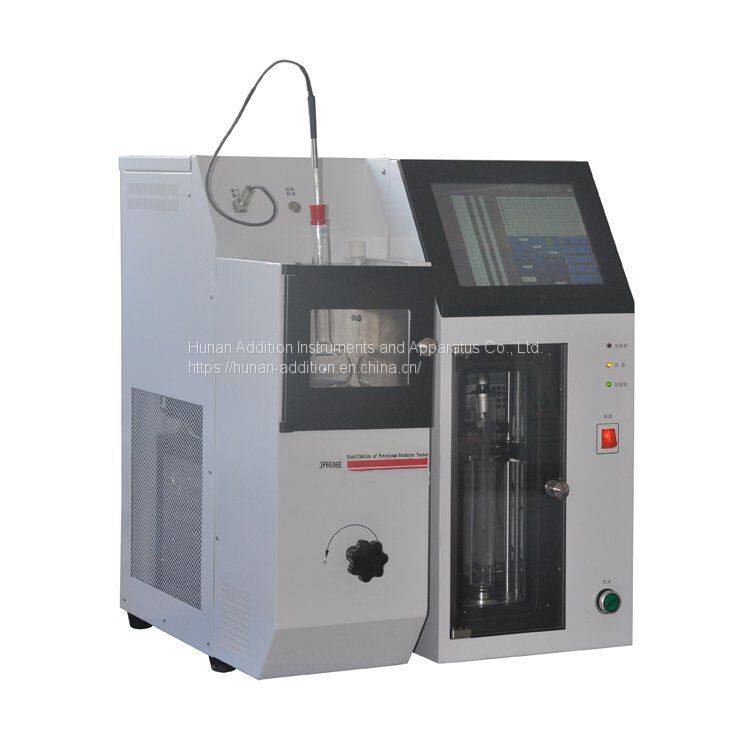

ASTM D86 Automatic Distillation of Petroleum Products Tester

Automatic Distillation of Petroleum Products Tester ASTM D86

Product Model: JF6536E

Product Introduction

The automatic distillation apparatus can be used to determine the distillation range of gasoline, fuel oil,volatile solvents, aromatic hydrocarbons and other mineral oils in petroleum products under normal pressure. Real-time temperature and recovery volume value display; automatic result correction; built-in cooling unit and safety protection system.

Technical Parameter

1. Meet the standards: ASTM D86, ISO 3405;

2. Measuring temperature: normal temperature～+400℃

3. Temperature control accuracy: +/- 0.1℃

4. Volume accuracy: +/- 0.1 ml

5. Temperature of measuring cylinder chamber: 0~60℃

6. Distillation rate: 4~5ml/min

7. Heating method: feedback heater

8. Display mode: 10-inch LCD monitor

9. Refrigeration method: compressor refrigeration

10. Heating power: 1200W

11. Working power supply: AC220V 50HZ

12. Instrument size: 600*450*650mm

13. Net weight: 53KG

 Main Feature

1. Large-screen liquid crystal display, real-time display of distillation rate, temperature, recovery volume ratio and other data;

2. Automatically optimize all parameters of heating power;

3. Feedback heater, place the sample to boil;

4. All components of the instrument are made of fireproof, high temperature resistant and non-toxic materials;

5. The measurement principle of infrared sensor ensures the accuracy of volume measurement and is not affected by ambient temperature;

6. Infrared measuring cylinder reading system
