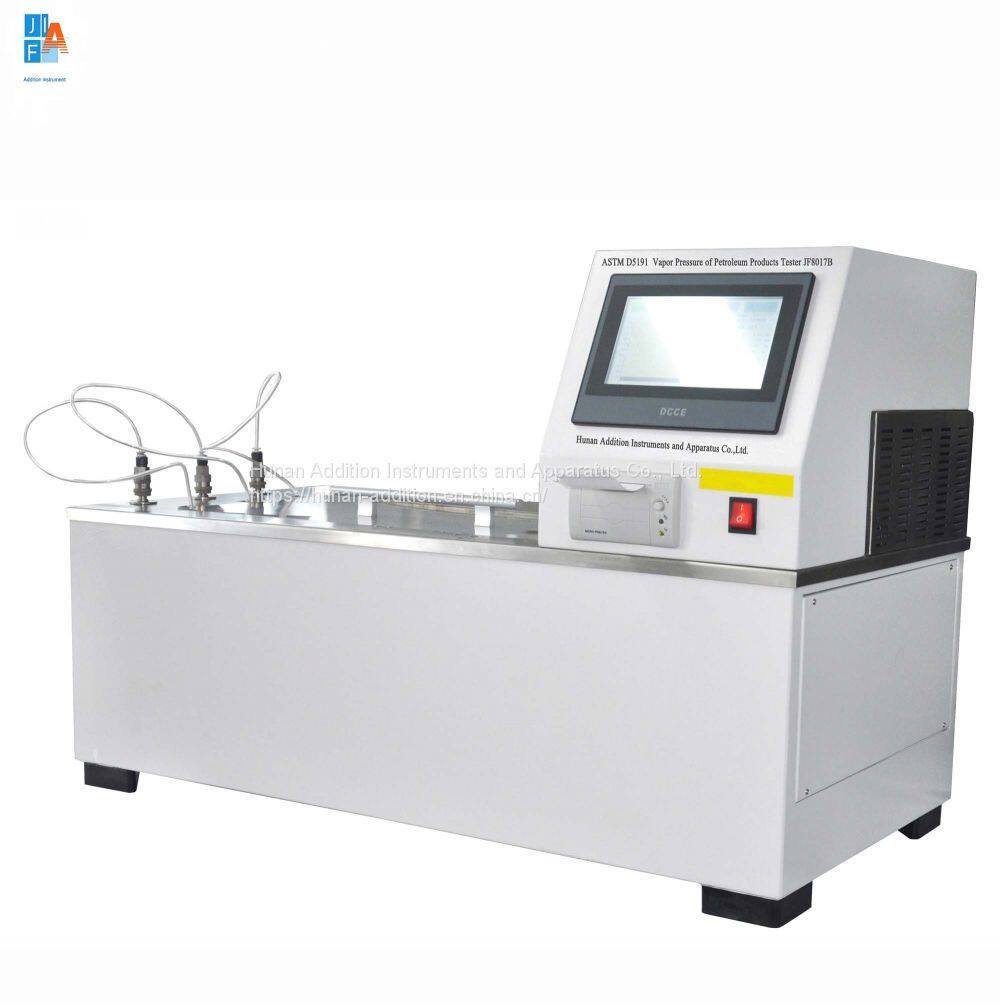

Full Automatic Vapor Pressure of Petroleum Products Tester ASTM D323

Full Automatic Vapor Pressure of Petroleum Products Tester

ASTM D323

 Model: JF8017Z

Product Introduction

This instrument is mainly suitable for detecting the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products; it is not suitable for detecting the vapor pressure of liquefied petroleum gas.

Technical Parameter

1. Applicable standard: ASTM D323 ISO3007 NFM07007

2. Temperature control method: high-quality PID digital thermostat

3. Temperature control: 37.8±0.1℃

4. Oscillation mode: horizontal automatic oscillation without manual operation

5. Working unit: two oxygen bombs

6. Pressure correction: externally connected to a pressure regulator, internally equipped with a deviation correction function

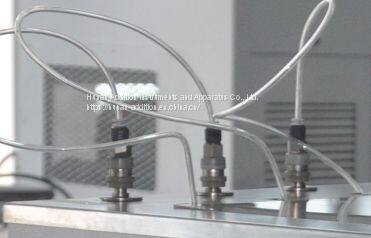

7. Connection method: high-quality stainless steel quick connector connection, no leakage

8. Display mode: large LCD screen

9. Working power supply: AC220V 50HZ

10. Power of the whole machine: 1200W

11. Instrument size: 750*450*450mm

12. Net weight: 50KG

Main Feature

1. The instrument is fully controlled by a microcomputer, the large LCD screen displays the experimental data, and the instrument automatically discriminates the results.

2. The instrument is made of cold-rolled steel plate, the surface is electrostatically sprayed, and has the functions of corrosion resistance and easy cleaning;

3. The instrument welding adopts touch welding technology, no solder joints, and the appearance is beautiful and generous;

4. The instrument adopts imported pressure transmitter, with high pressure display accuracy;

5. All stainless steel inner tank water bath to prevent rust;

6. Imported quick connector, plug and play, no leakage, easy to operate
