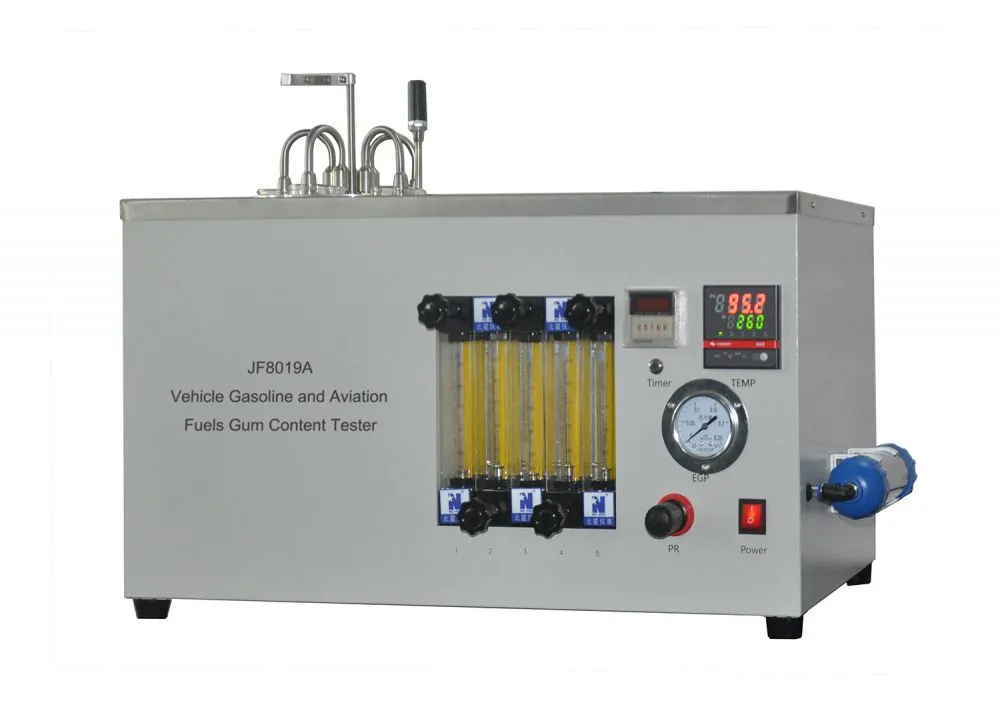

Vehicle Gasoline and Aviation Fuels Gum Content Tester ASTM D381

 Product Introduction

This instrument is suitable for the determination of vehicle gasoline, aviation gasoline and the actual gum used to prepare volatile fractions and aviation turbine fuel during the test. It can also be used to determine the unwashed gum content of motor gasoline.

Technical Parameter

1. Applicable standard: ASTM D381 GB/T8019

2. Temperature control range: normal temperature~400±1℃

3. Temperature control method: digital display PID temperature controller

4. Heating method: metal bath heating

5. Working unit: 3 holes

6. Pressure control: precision regulator valve

7. Pressure display: flow meter display

8. Working power supply: AC220,240V/50,60Hz

9. Power of the whole machine: 3KW

10. Dimensions: 500*450*520mm

11. Net weight: 40KG

Main Feature

1. Metal bath heating, safe and environmentally friendly;

2. Adjustable pressure-stabilizing valve to adjust the air source;

3. 3 sets of flowmeter adjustment, with gas filter adsorption device, flow rate 1000±15ml/min;

4. High-quality Omron PID thermostat, digital display temperature, accuracy 0.1℃

5. The glass test tube meets the standard requirements, the size is φ50×78mm;

6. One-piece structure, easy to operate;

7. Three copper receivers with 600μm copper mesh installed inside;
