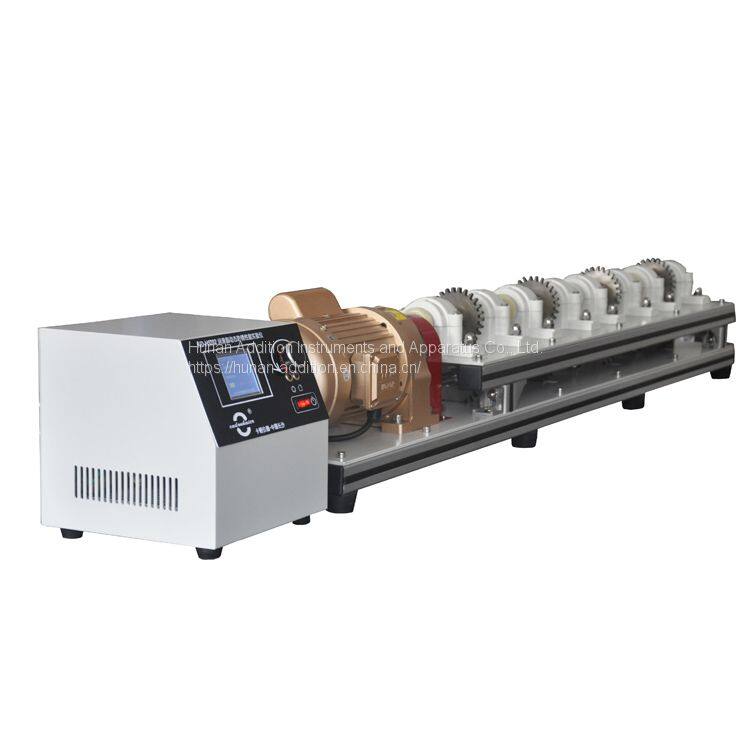

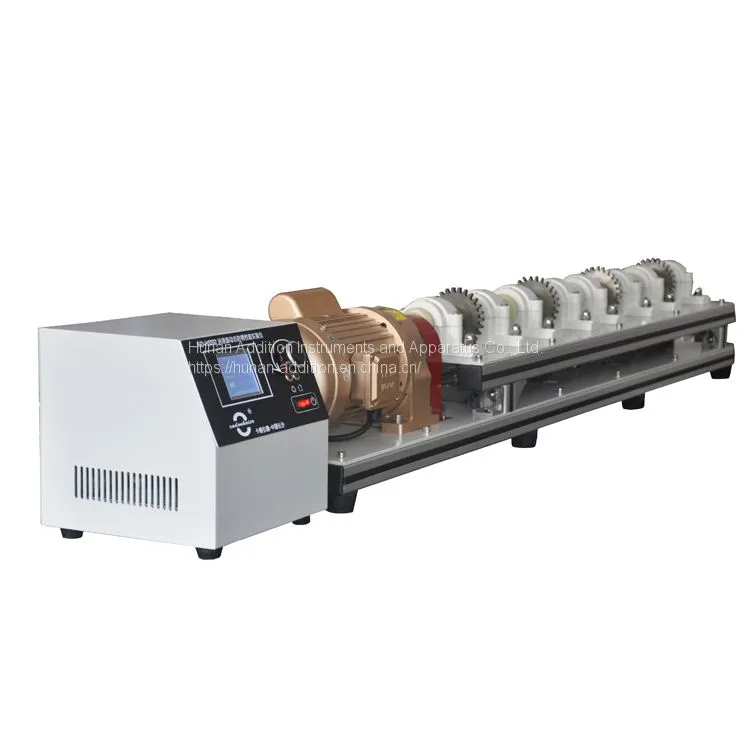

ASTM D6138 Grease Corrosion Protection Tester for Dynamic Wet Conditions

Product model: JF0700

Introduction

This instrument measures the ability of a grease to protect bearings against corrosion in the presence of water. Both sets of greased bearings were partially submerged in water and rotated at 80 rpm during the run and rest cycles. At the end of the test, check the bearing outer race for corrosion.

Product Parameter

1. Applicable standards: ASTM D6138, SH/T0700, ISO 11007

2. Rotation mode: AC motor drive

3. Rotation speed: 80～85r/min

4. Timing method: digital display timer

5, stop, start: time can be set

6. Working unit: 8 units

7. Working power supply: 220V 50Hz

8. Power of the whole machine: 600W

9. Instrument size: 1420*320*240mm

10. Net weight: 46KG

Main Feature

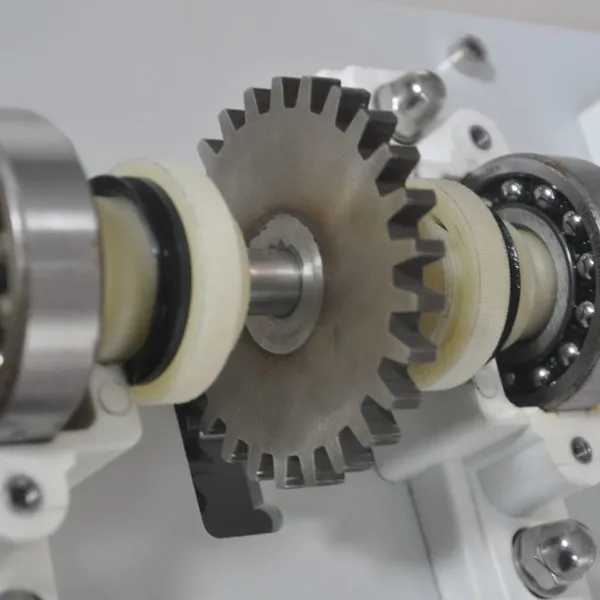

1. Matching standard test bearing, 30×72×19mm;

2. The mirror observation bearing without magnification function is convenient for operation;

3. High-torque motor, drive without hindrance;

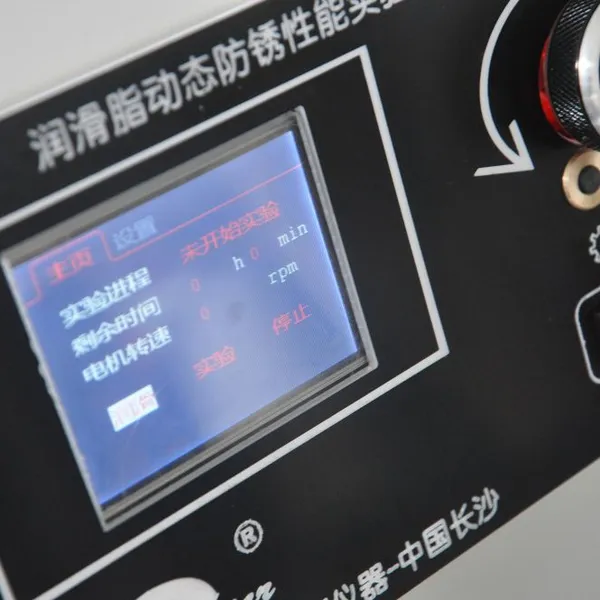

4. Digital display working time and stop time;

5. After the test, the motor will be automatically turned off;

6. Fixed and dynamic tests can be carried out;

7. Special engineering plastic bearing seat to avoid other metal corrosion affecting the experimental results
