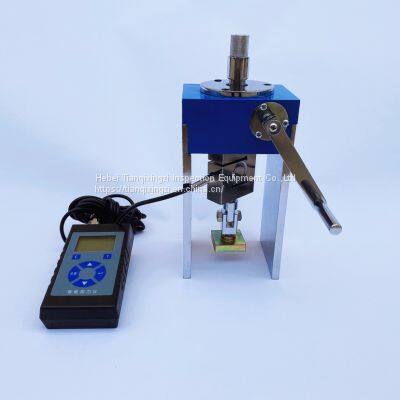

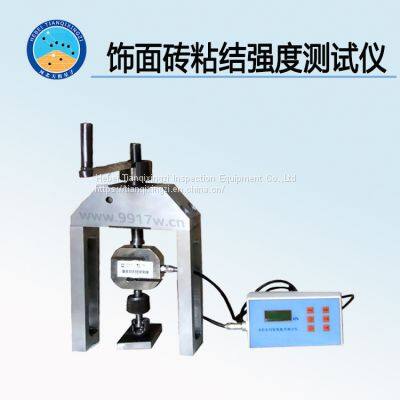

Veneer brick bond strength tester Adhesive strength tester for finishing brick

TD9799 - EQS tile adhesive strength tester is in accordance with the industry standard "regulations of external wall face brick engineering construction and acceptance" design, can be continuous uniform load, the structure is compact, durable, using liquid crystal display (LCD) bond value, automatic and accurate record of bond value and maintain peak, this product is a battery-powered, small and light, gross weight about 3 kg. Easy to carry and use on site, in full compliance with applicable standards: GB9799-88 Coating bond strength JGJ110-97 "Standard for Inspection of bond strength of building engineering veneer bricks" JGJ126-2000 "Code for Construction and Acceptance of Exterior wall veneer Bricks" JGJ144-2004 "Technical Code for Exterior Wall Insulation Engineering" JG158-2004 "rubber powder polystyrene particle exterior wall insulation system "JG149-2003" expansion polystyrene board thin plaster exterior wall insulation system "requirements, in view of the decorative brick bond strength is low and small characteristics, the maximum tension design 2kN, to ensure the detection accuracy of the instrument. And the formation of long, can do rivet pulling test.

TD9799 - EQS tile adhesive strength tester is the original volume, complicated structure, operating inconvenience the ideal substitute of detector, the detector has many construction units throughout the country, engineering quality testing station (center), laboratories, research institutes and supervision unit is widely used, was welcomed by the majority of engineering and technical personnel.

◆ Technical indicators:

1, measuring force range: 0 ~ 2000N;

2, stroke: 100mm (can do rivet drawing test);

3, measuring accuracy: ≤± 1% (better than other testing machine 1.5%);

4, minimum resolution: 1N;

5, monitor: liquid crystal display digital;
