SIMCom SIM800C-DS Qual Band GSM/GPRS Module, With LCC and LGA Pads
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Description



SIM800C-DS GSM/GPRS Module

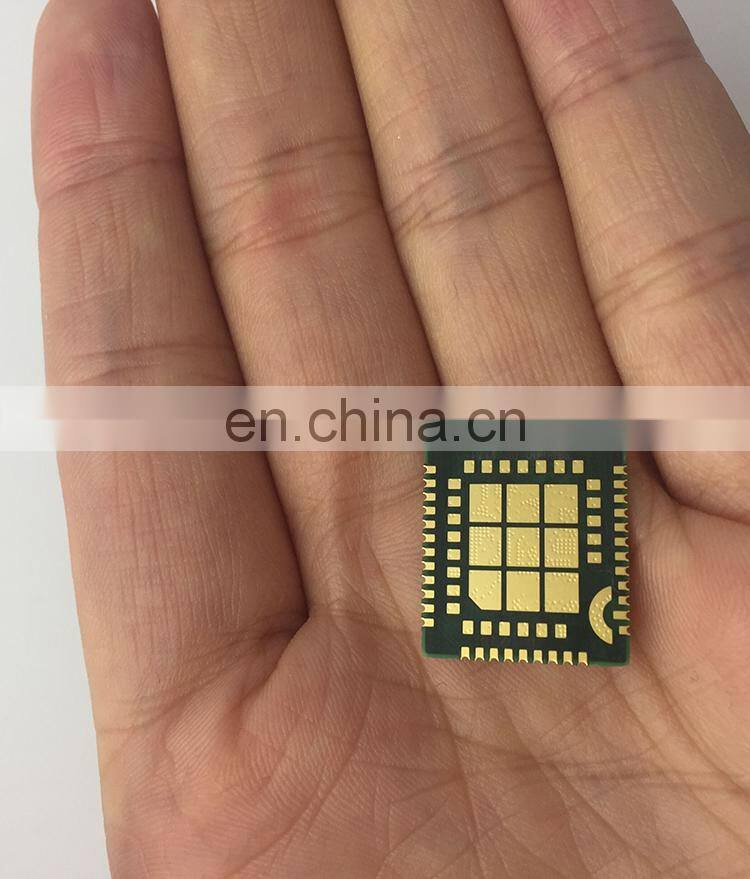

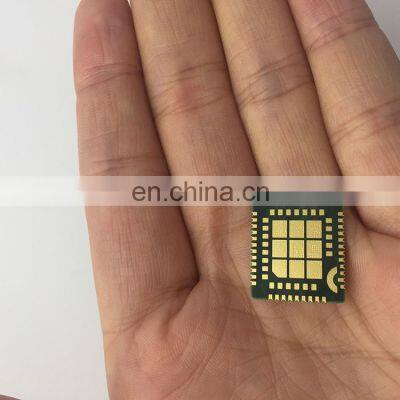

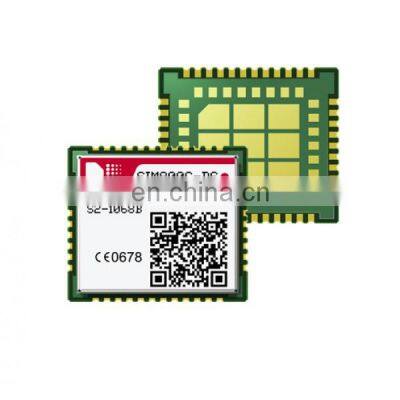

• SIM800C-DS is a complete Quad-band GSM/GPRS solution with LCC and LGA pads, support Dual-SIM, which allows customers to use two SIM cards in one device simultaneously.
• SIM800C-DS supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption.
• SIM800C-DS supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption.
• With tiny size of 17.6*15.7*2.3mm, it can smoothly fit into slim and compact demands of customer design.
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•TTS_CN (optional)
Specifications for voice
•Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
•Hands-free operation (Echo suppression)
Interfaces
77 SMT pins including
•SIM Card Interfaces (Dual Standby)
---SIM card 1: 3V/ 1.8V
---SIM card 2: 3V/ 1.8V
•Analog audio interface
•RTC backup
•I2C interface
•USB interface
•Serial interface
•PCM
•SD
•GPIO
•ADC
•GSM Antenna pad
Certification
•CE
Compatibility
•AT cellular command interface
General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
•Weight: 1.3g
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
•Weight: 1.3g
•Dimensions: 17.6*15.7*2.3mm
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•TTS_CN (optional)
Specifications for voice
•Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
•Hands-free operation (Echo suppression)
Interfaces
77 SMT pins including
•SIM Card Interfaces (Dual Standby)
---SIM card 1: 3V/ 1.8V
---SIM card 2: 3V/ 1.8V
•Analog audio interface
•RTC backup
•I2C interface
•USB interface
•Serial interface
•PCM
•SD
•GPIO
•ADC
•GSM Antenna pad
Certification
•CE
Compatibility
•AT cellular command interface
Why Choose Us

FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
