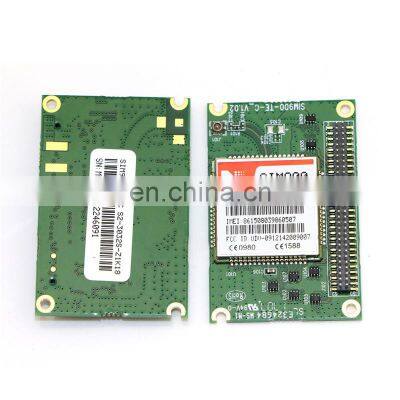

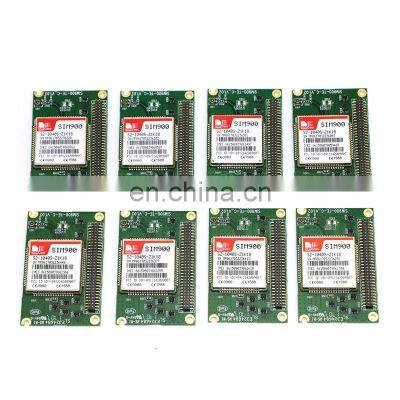

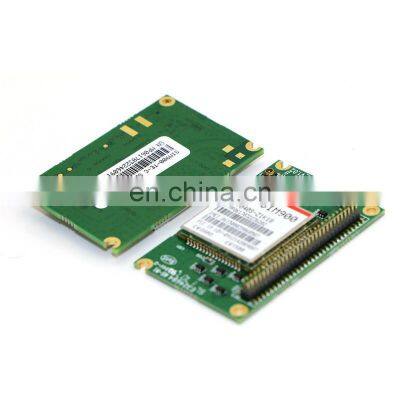

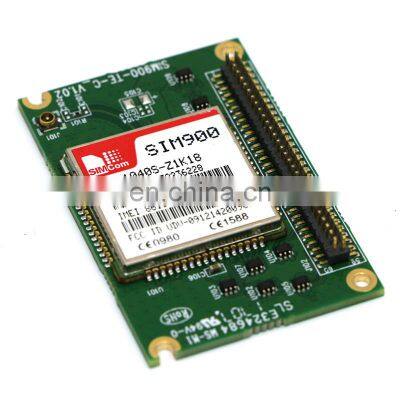

SIMCOM SIM900 GSM GPRS Module Sim900te-c Datasheet
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIM800 Pin to Pin Sim900a Sim900 Quad Band Gsm Gprs ModuleNegotiableMOQ: 1 -
SIM900 SIMCOM GPRS Gps Wifi Gsm MODULENegotiableMOQ: 1
-
SIMCOM Communication Module SIM800 2G GSM GPRS Module Wireless Transceiver Moduels SIM800 SIM800C SIM800L SIM800A SIM800FNegotiableMOQ: 1
-
Simcom Sim900 Micro Mtk Gsm Module Gsm SimconNegotiableMOQ: 1
-
SIMCOM Distributor Wholesale New & Original GSM/GPRS+GNSS Module SIM868ENegotiableMOQ: 1
Description
General Features
•Quad-Band GSM 850/900/18001900MHz
•GPRS multi-slot class 10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+ -Class 4 (2 W @ 850/900 MHz) -Class 1 (1 W @ 1800/1900MHz)
•Control via AT commands
(GSM 07.07 ,07.05 and SIMCom enhanced AT Commands)
•SIM application toolkit
•Supply voltage range: -GPRS: 3.2 ~ 4.8 -V-GPS: 3.0 ~ 4.5V
•Low power consumption
•Dimensions: 50*33*6.3mm
•Weight:
•Operation temperature:-40°C to +85 °C
Specifications for SMS via GSM / GPRS
•Point-to-point MO and MT
•SMS cell broadcast
•Text and PDU mode Specifications for audi o
•Tricodec
-Half rate (HR)
-Full rate (FR)
-Enhanced Full rate (EFR)
•Hands-free operation
•Echo cancellation
Specifications for data transfer
•GPRS class 8/10: max. 85.6 kbps (downlink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•CSD up to 14.4 kbps
•USSD
•Non transparent mode
•PPP-stack
•Integrated TCP/IP stack
Compatibility
•AT cellular command interface
Sensitivity2
Tracking -162dBm
Navigation -160dBm
Cold starts 148dBm
•Time-To-First-Fix3
Cold starts 35s
Warm starts 24s
Hot starts 1s
Accuracy
Automatic Position4 1.5m CEP Interfaces
•60 pin DIP connector
•Interface to external SIM 3V/ 1.8V
•one analog audio interface
•SPI interface
•RTC backup
•A serial interface and a debug interface for GSM/GPRS
• A serial interface and a debug interface for GNSS
•Two separate antenna connectors for GSM/GPRS&GPS
1.Autonomous ST-AGPS mode
2.Demonstrated in lab
3.All SV @ –130 dBm 4.50% 24 hr static, -130dBm
Specification for GNSS
•Support GPS/GLONASS/Galileo/QZSS
•Support SBAS/ST-AGPS1
•Support Jamming Removing
•Integrated Low-noise amplifier
•Receiver type
32 tracking channel and 2 fast acquisition channel which are compatible with GPS, Galileo,
QZSS and Glonass systems
•Max update rate : 10Hz
