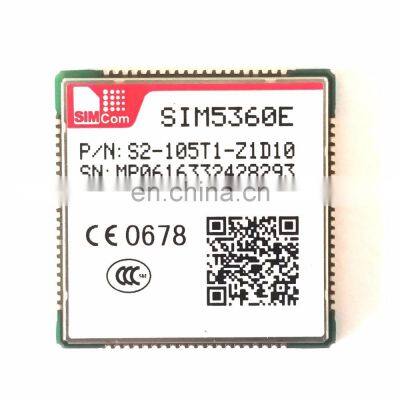

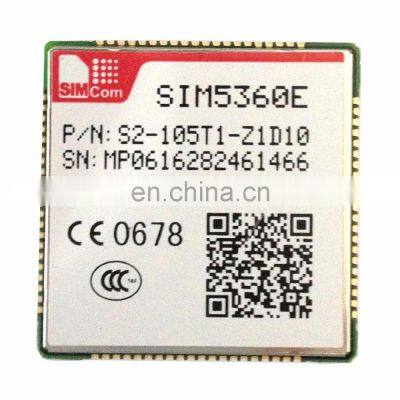

SIM5360E SIMCOM WCDMA 3G Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCom SIM5215 Multi-Band WCDMA/GSM/GPRS/EDGE Module SIM5215E SIM5215A SIM5215JNegotiableMOQ: 1 -
Sim5320 Simcom Gsm/gprs Gps ModuleNegotiableMOQ: 1
-
SIMCOM 3G Module, SIM5320, SIM5320A, SIM5320E, SIM5320JNegotiableMOQ: 1
-
SIMCOM SIM5320 3G/GSM/GPRS Module Sim5320A Sim5320E Sim5320JNegotiableMOQ: 1
-
2017 Original New Stock Electronics ic Simcom Sim5300EA/sim5300E Wcdma 3g Gsm Module Low Price WholesaleNegotiableMOQ: 1
Description
SIM5360 WCDMA/HSPA/HSPA+ Module SIM5360A, SIM5360J, SIM5360E
• The SIM5360 series is Dual-Band HSPA+/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSPA+ up to 14.4Mbps for downlink data transfer.
• It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, etc. With abundant application capability like TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.
• SIM5360(J)E:
- Dual-Band UMTS/HSPA+ 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360J(D):
- Dual-Band UMTS/HSPA+ 800(850)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.7g
Specifications for GPS
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
• GLonass
Specifications for Data transfer
• HSPA+
- Max. 14.4Mbps(DL), Max. 5.76Mbps(UL)
• WCDMA
- Max. 384Kbps(DL), Max. 384Kbps(UL)
• EDGE Class:
- Max. 236.8Kbps(DL), Max. 236.8Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Other features
• USB Driver for Microsoft Windows 2000/ XP/ Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux/Android
• Firmware update via USB
• Embedded AT
• LUA Script Language
• MMS
• TCP/IP
• FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3/ DNS
• FOTA
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad(5*5)
• Constant current sink
• GPIO
• RTC
• ADC
• SDIO
• PCM *
Certifications
• SIM5360A
- FCC
- ROHS
- REACH
• SIM5360JE/JD
- Telec
- JATE
- ROHS
- REACH
• SIM5360E
- CE
- GCF
- ROHS
- REACH
- CCC
• It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, etc. With abundant application capability like TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.
General features
• SIM5360A:
- Dual-Band UMTS/HSPA+ 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360A:
- Dual-Band UMTS/HSPA+ 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360(J)E:
- Dual-Band UMTS/HSPA+ 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360J(D):
- Dual-Band UMTS/HSPA+ 800(850)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.7g
Specifications for GPS
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
• GLonass
Specifications for Data transfer
• HSPA+
- Max. 14.4Mbps(DL), Max. 5.76Mbps(UL)
• WCDMA
- Max. 384Kbps(DL), Max. 384Kbps(UL)
• EDGE Class:
- Max. 236.8Kbps(DL), Max. 236.8Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Other features
• USB Driver for Microsoft Windows 2000/ XP/ Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux/Android
• Firmware update via USB
• Embedded AT
• LUA Script Language
• MMS
• TCP/IP
• FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3/ DNS
• FOTA
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad(5*5)
• Constant current sink
• GPIO
• RTC
• ADC
• SDIO
• PCM *
Certifications
• SIM5360A
- FCC
- ROHS
- REACH
• SIM5360JE/JD
- Telec
- JATE
- ROHS
- REACH
• SIM5360E
- CE
- GCF
- ROHS
- REACH
- CCC
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
