Original New Simcom Module SIM808,the Newest Gsm/gprs+gps Chip Datasheet Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Low Power Gsm Gprs Sim900 Gsm 2G ModuleNegotiableMOQ: 1 -
SIM900 GSM GPRS ModuleNegotiableMOQ: 1
-
SIMCom SIM900 SMS Smallest Gps Gsm Gps Chip ModuleNegotiableMOQ: 1
-
SIMCOM SIM900+SIM68 Quad-band GSM GPRS + GPS GNSS ModuleNegotiableMOQ: 1
-
Low Cost Gsm Gprs Gsm Wifi Chip Module Sim900NegotiableMOQ: 1
Description

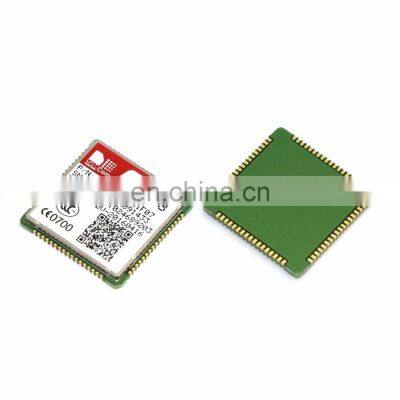

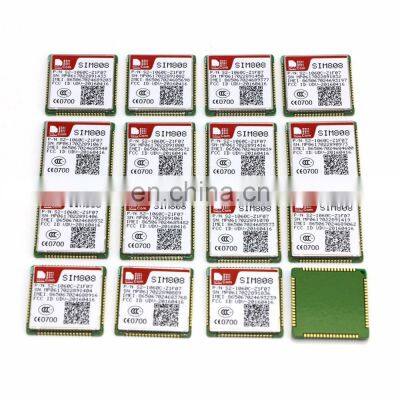

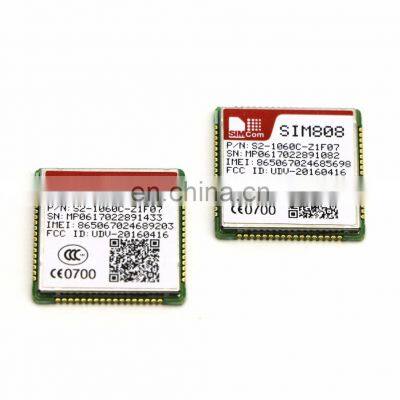

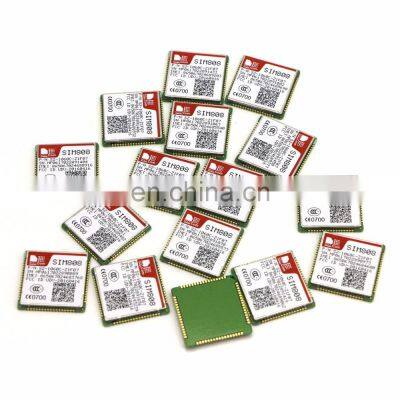

GSM/GPRS+GPS Module
• SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a LCC package will significantly save both time and costs for customers to develop GPS enabled applications.
• Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900MHz)
– Class 1 (1 W @ 1800/1900MHz)
•Dimensions: 24*24*2.6mm
•Weight: 3.3g
•Control via AT commands (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Compatibility
•AT cellular command interface
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•SSL
•Bluetooth 3.0 (optional)
•TTS CN(optional)
•Embedded AT (optional)
Specification for GPS
•Receiver type
-22 tracking /66 acquisition -channel
-GPS L1 C/A code
•Sensitivity
-Tracking: -165 dBm
-Cold starts : -148 dBm
•Time-To-First-Fix
-Cold starts: 32s (typ.)
-Hot starts: <1s
-Warm starts: 3s
•Accuracy
-Horizontal position : <2.5m CEP
Interfaces
•68 SMT pads including
•Analog audio interface
•PCM interface(optional)
•SPI interface (optional)
•RTC backup
•Serial interface
•USB interface
•Interface to external SIM 3V/1.8V
•Keypad interface
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad
•GPS Antenna pad
Certifications
•CE
•FCC
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900MHz)
– Class 1 (1 W @ 1800/1900MHz)
•Dimensions: 24*24*2.6mm
•Weight: 3.3g
•Control via AT commands (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Compatibility
•AT cellular command interface
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•SSL
•Bluetooth 3.0 (optional)
•TTS CN(optional)
•Embedded AT (optional)
Specification for GPS
•Receiver type
-22 tracking /66 acquisition -channel
-GPS L1 C/A code
•Sensitivity
-Tracking: -165 dBm
-Cold starts : -148 dBm
•Time-To-First-Fix
-Cold starts: 32s (typ.)
-Hot starts: <1s
-Warm starts: 3s
•Accuracy
-Horizontal position : <2.5m CEP
Interfaces
•68 SMT pads including
•Analog audio interface
•PCM interface(optional)
•SPI interface (optional)
•RTC backup
•Serial interface
•USB interface
•Interface to external SIM 3V/1.8V
•Keypad interface
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad
•GPS Antenna pad
Certifications
•CE
•FCC
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
