SIMCOM Distributor Wholesale New & Original GSM/GPRS+GNSS Module SIM868E
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIM868 SIMCOM GSM GPS Combo ModuleNegotiableMOQ: 1 -
Smallest Gps Gsm Module Sim900NegotiableMOQ: 1
-
SIM800 SIM900 GSM ModuleNegotiableMOQ: 1
-
Original New Quad-band Combo Chip Module Sim808NegotiableMOQ: 1
-
Original New Simcom Module SIM808,the Newest Gsm/gprs+gps Chip Datasheet ModuleNegotiableMOQ: 1
Description

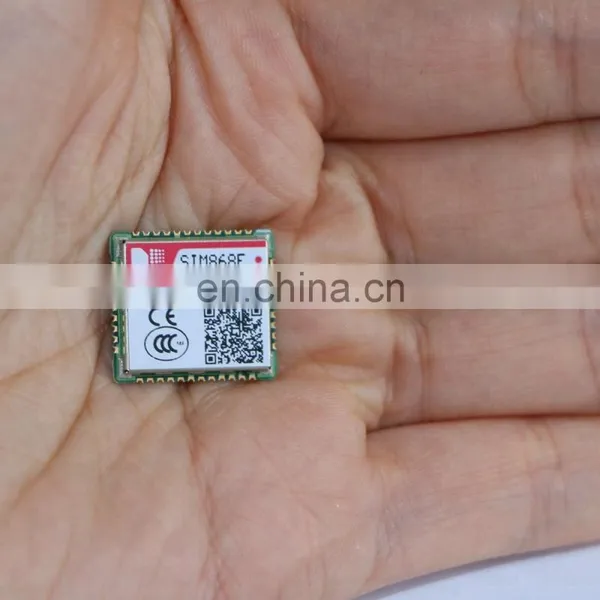

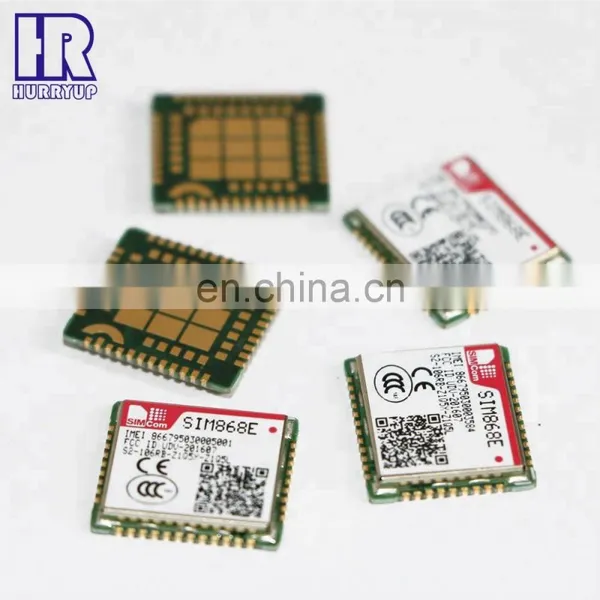

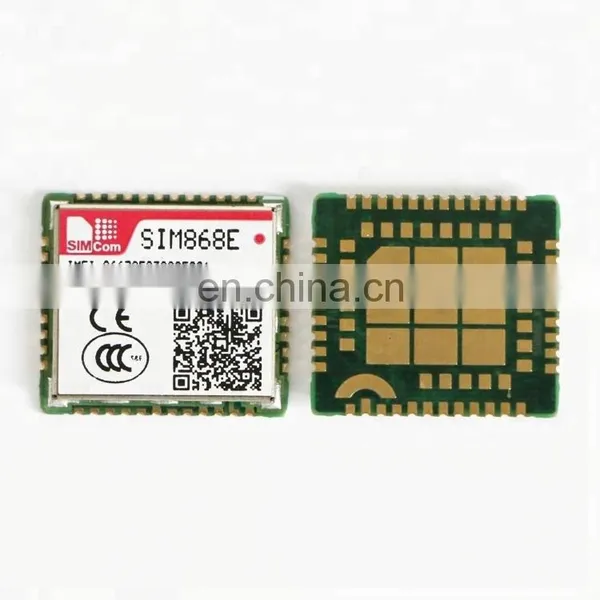

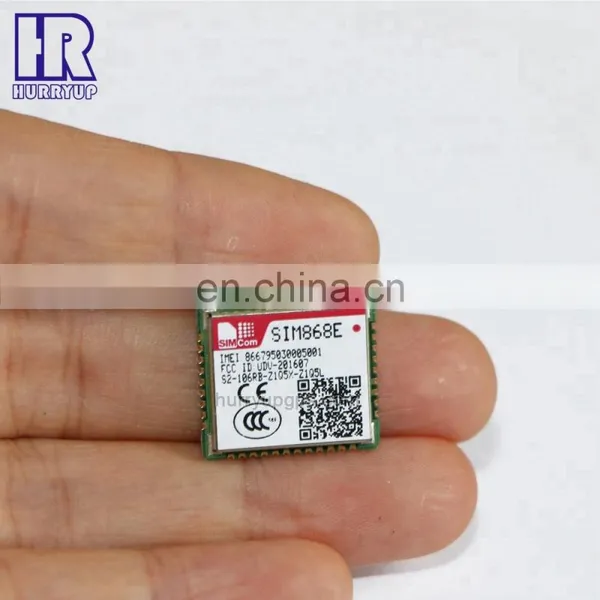

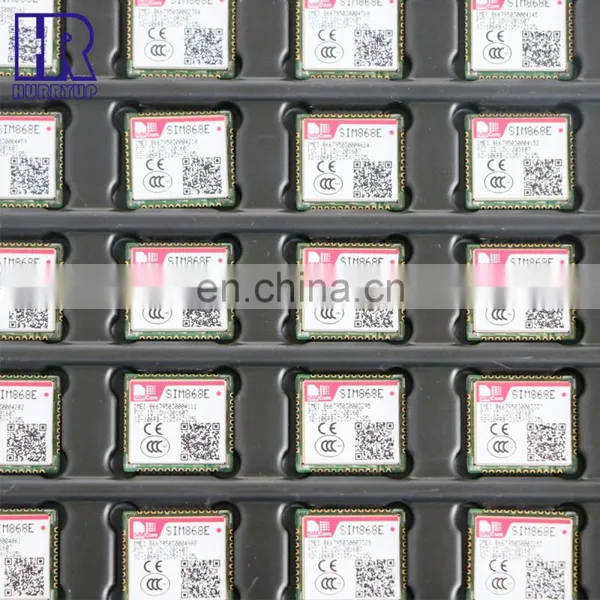

SIMCOM Distributor wholesale New & Original GSM/GPRS+GNSS Module SIM868E
• SIM868E module is a complete Quad-Band GSM/GPRS module which combines GNSS( GPS/GLONASS/BDS) technology for satellite navigation.
• The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications. It is fully pin-to-pin compatible with SIM868, and supports both BT4.0 and BT3.0 specifications.
• The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications. It is fully pin-to-pin compatible with SIM868, and supports both BT4.0 and BT3.0 specifications.
• BLE (Bluetooth Low Energy) technology features ultra-low peak, average and idel mode power consumption, Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• POP3/SMTP
• DTMF
• Jamming Detection
• Audio Record
• SSL
Specification for GNSS
Receiver type
-33 tracking /99 acquisition -channel
Sensitivity
-Tracking: -167 dBm
-Reacquisition: -161 dBm
-Cold starts : -149 dBm
Time-To-First-Fix
-Cold starts: 28s (typ.)
-Hot starts: <1s
-Warm starts: 22s
Accuracy
-Horizontal position : <2.5m CEP
Interfaces
• 77 SMT pads
• SIM Card Interfaces
---SIM card: 3V/ 1.8V
• Analog audio interface
• Bluetooth
BT4.0 BLE Profile: GATT/PXP/FMP
BT3.0 Profile: SPP/HFP-AG
• RTC GNSS backup
• I2C interface
• USB interface
• Serial interface
• SD
• GPIO
• ADC
• GSM Antenna pad
• GNSS Antenna pad
• Bluetooth Antenna pad
Certifications
• CE
• FCC
• ROHS
• REACH
• CCC
• TA
General features
• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
• Support GPS/GLONASS/BD
• Dimensions: 17.6*15.7*2.3mm
• Weight: 1.5g
• Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
• BT4.0 Current Consumption
Advertising : 1.46mA
Connection : 1.55mA
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• USSD
Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode
• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
• Support GPS/GLONASS/BD
• Dimensions: 17.6*15.7*2.3mm
• Weight: 1.5g
• Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
• BT4.0 Current Consumption
Advertising : 1.46mA
Connection : 1.55mA
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• USSD
Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode
Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• POP3/SMTP
• DTMF
• Jamming Detection
• Audio Record
• SSL
Specification for GNSS
Receiver type
-33 tracking /99 acquisition -channel
Sensitivity
-Tracking: -167 dBm
-Reacquisition: -161 dBm
-Cold starts : -149 dBm
Time-To-First-Fix
-Cold starts: 28s (typ.)
-Hot starts: <1s
-Warm starts: 22s
Accuracy
-Horizontal position : <2.5m CEP
Interfaces
• 77 SMT pads
• SIM Card Interfaces
---SIM card: 3V/ 1.8V
• Analog audio interface
• Bluetooth
BT4.0 BLE Profile: GATT/PXP/FMP
BT3.0 Profile: SPP/HFP-AG
• RTC GNSS backup
• I2C interface
• USB interface
• Serial interface
• SD
• GPIO
• ADC
• GSM Antenna pad
• GNSS Antenna pad
• Bluetooth Antenna pad
Certifications
• CE
• FCC
• ROHS
• REACH
• CCC
• TA
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
