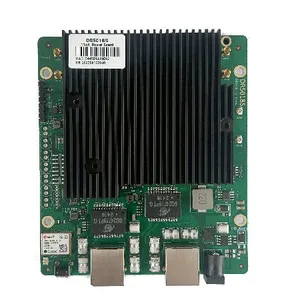

WiFi6 routerboard IPQ5018 SOC 2.4G&5G&6G on board openwifi

Features

• Dual-core ARM 64 bit A53@1.0GHzProcessor

• 512MB DDRL3L System Memory

• 8MB NOR Flash, 256MB NAND Flash

• Support BT5.1(optional)

• 2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate

• 2x2 On-board 5GHz radio,up to 2402Mbps physical Data Rate

• 2x2 On-board 6GHz radio,up to 2402Mbps physical Data Rate

• Support GPS(optional)

• Support Openwifi

• Certification: FCC/CE/UKCA


Applications


• 802.11ax MU- MIMO OFDMA Access Point

• Mesh router supporting Easy Mesh Hotel Wireless

• Smart AP TWT

Product Description


 DR5018S, based on the IPQ5018 chipset, is an enterprise-grade wireless module that integrates a BT5.1 radio module, along with 2x2 2.4GHz, 2x2 5GHz, and 2x2 6GHz high-power radio modules. It is specifically designed to provide users with mobile access to high-bandwidth video streaming, voice communication, and data transmission, making it ideal for office environments as well as challenging RF conditions in factories and warehouses.





Absolute Maximum Rating



Parameter	Rating	Unit
Supply Voltage	12V-48V(DC Jack)	V
Operating Temperature Range	-40 70	ºC
Storage Temperature Range	-45 to 105	ºC
Operating Humidity Range	5 ~95 (non-condensing)	%
Storage Humidity Range	0 ~ 90 (non-condensing	%



Hardware Specifications



Symbol	Parameter
CPU	Qualcomm-Atheros IPQ5018
CPU Frequency	Dual-core ARM 64 bit A53 @1.0 GHz processor
System Memory	512MB DDR3L 16-bit interface with 32-bit memory bus design
Ethernet Port	1 x 1Gbps Ethernet Port,1x2.5Gbps Ethernet Port
USB	1x USB2.0 Interface
SGMII	1x SGMII Interface
UART	1x UART Interface
Wireless	2x2 On-board 2.4GHz radio,up to 573Mbps physical Data Rate    2x2 On-board 5GHz radio,up to 2402Mbps physical Data Rate   2x2 On-board 6GHz radio,up to 2402Mbps physical Data Rate
Channel Spectrum Widths for WLAN	Support 20/40MHz at 2.4GHz Support 20/40/80/160MHz at 5GHz Support 20/40/80/160MHz at 6GHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Power	1)DC Jack: 12V-52V DC power supply 2）POE:Active POE，802.3at/BT,48V passive POE
Nor Flash	8 MB
Nand Flash	128 MB
DDR	512MB
Dimension	12.2x10.5x2.1cm (heat sink included)
Certification	FCC/CE/UKCA
Surge	IEC61000-4-5、EN61000-4-5、GB/T17626.5 10/700us 6KV



Product Version



	P/N	Radio	Frequency	Certification
1	DR5018S	2.4Ghz 5Ghz 6Ghz	2.5G+1G Ethernet & POE	Running	with GPS
2	DR5018S-5G	5Ghz	1G Ethernet & POE	CE,UKCA,FCC	without GPS
3	DR5018S-DB	2.4Ghz 5Ghz	1G Ethernet & POE	CE,UKCA,FCC	without GPS
4	DR5018-2G6G	2.4Ghz 6Ghz	1G Ethernet & POE	Running	with GPS
5	DR5018-5G6G	5Ghz 6Ghz	1G Ethernet & POE	Running	with GPS
