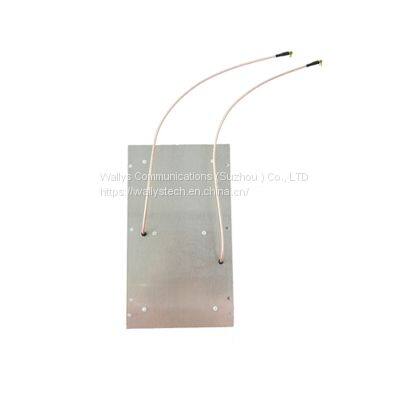

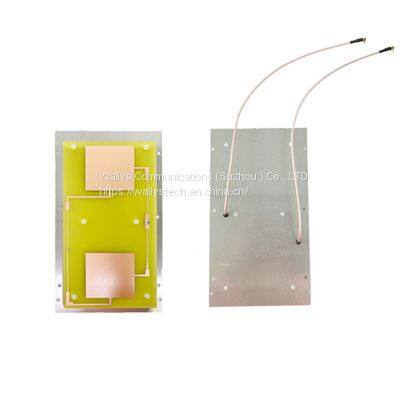

Wallys/DR2G11 Panel Antenna 2.4GHz 11dbi support 802.11ac/ax IPQ4019/IPQ4029mmcx connector

Wallys/DR2G11 Panel Antenna 2.4GHz 11dbi support 802.11ac/ax IPQ4019/IPQ4029mmcx connector

Wallys  has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.

Skype/EMAIL:sales@wallystech.com

This antenna, can be used with wallys DR40X9, can do indoor and outdoor enclosure, details can be contacted at any time

APPLICATIONS

+ Profi WiFi hotspot coverage

+ Commercial radio coverage

+ Hotel Wireless application

+ Country coverage

+ Internet for passengers (bus, train, plane, …)

+ Security Surveillance

+ Some special scene application

+ Heavy-duty industrial environment use

DR2G11

1. Feature

* 11dBi Dual Polarized Micro strip  Antenna Array

* 2.4GHz of frequency

* MMCX connector

* Support 802. 11AX/AC/AN

* RoHS compliance

2. Application

* 2.4GHz Wireless Communication

* WLAN device, WLAN Router, e.g., AP, PIC Wireless Card

3. Description

This antenna array is designed for 2.4GHz applications and can be easily built-in portable devices with MHF processes. It has excellent stability and sensitivity to consistently provide high signal reception efficiency.

General Data





Product Name	Dual Polarized Micro strip Antenna Array
Part No.	DR2G11
Frequency	2.4GHz-2.482GHz
V.S.W.R	<1.85
Gain (dBi)	11dbi
Polarization	Vertical & horizontal
Isolation	>30db
Storage Temp	-20°C~70°C
Operating Temperature	-20°C~60°C
Antenna Type	Antenna Array
Dimension	160*100mm
Weight
