PET PVC Film Roll to Sheet Cutting Machine With Conveyor Belt
- T/T Credit Card
You May Like
-
Roll to Sheet Cutting Machine for Paper Label Foam PET PVC Film
-
Paper PET PVC Film Roll to Sheet Cutting Machine
-
PET PVC Film Roll to Sheet Cutting Machine Foam Label Paper Cutter Cut 600mm Speed 50-80 Times/minute Production Capacity
-
Paper Roll to Sheet Cutting Machine Cut 600mm Speed 1-180 Times/minute Production Capacity 600mm Max. Workable Width
-
Adhesive Foam Sheet Cutter,tape Roll Kiss Cutting Machine With Slitting Function
-
With Laminating Function Foam Sheet Cutting Machine Adhesive Tape Kiss Cutting Machine MITSUBISHI 1200mm MCGS
Product Description

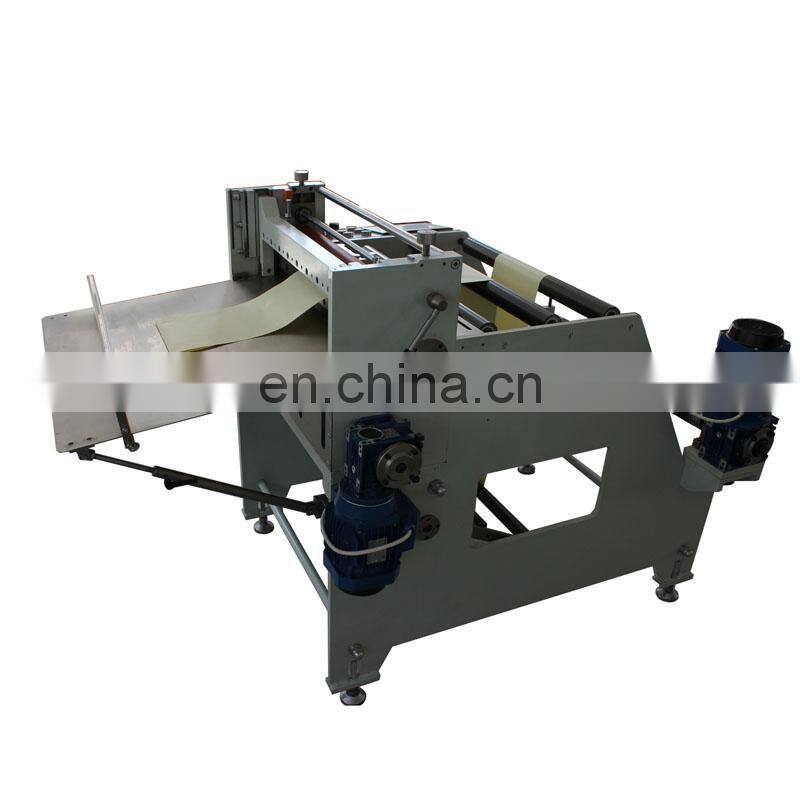

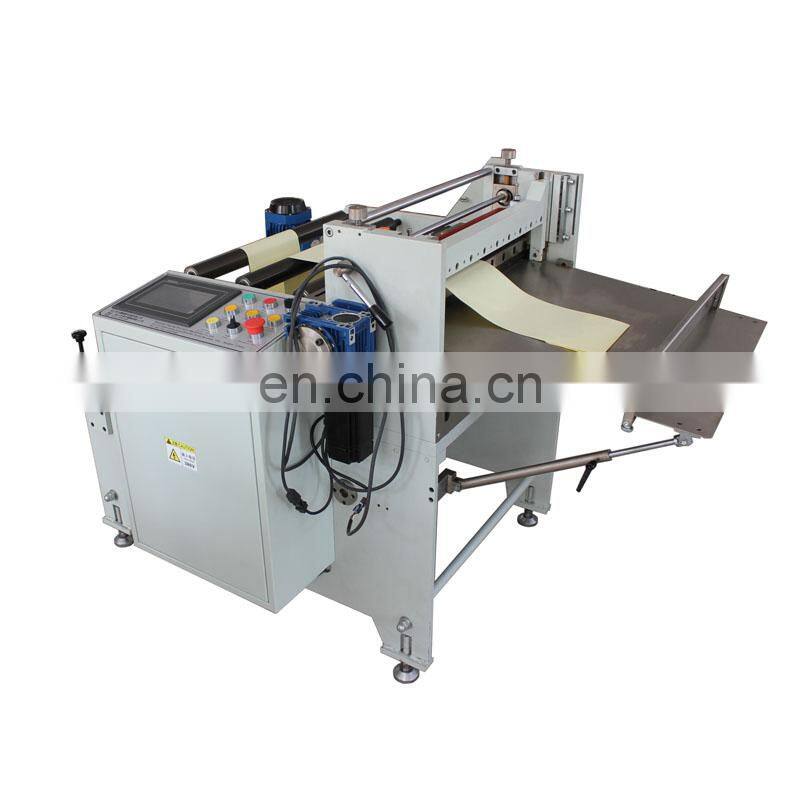

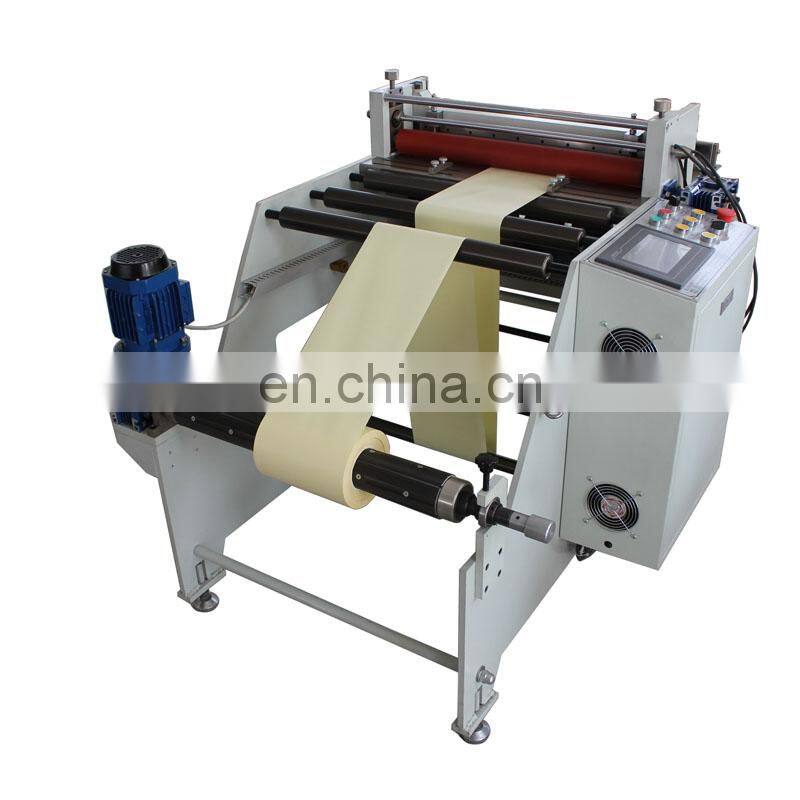

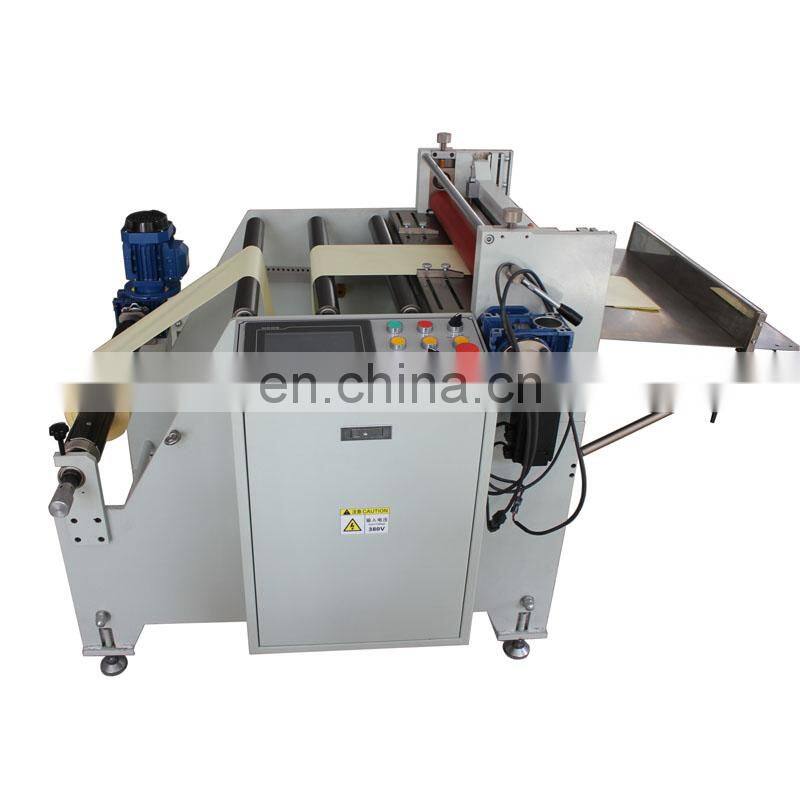

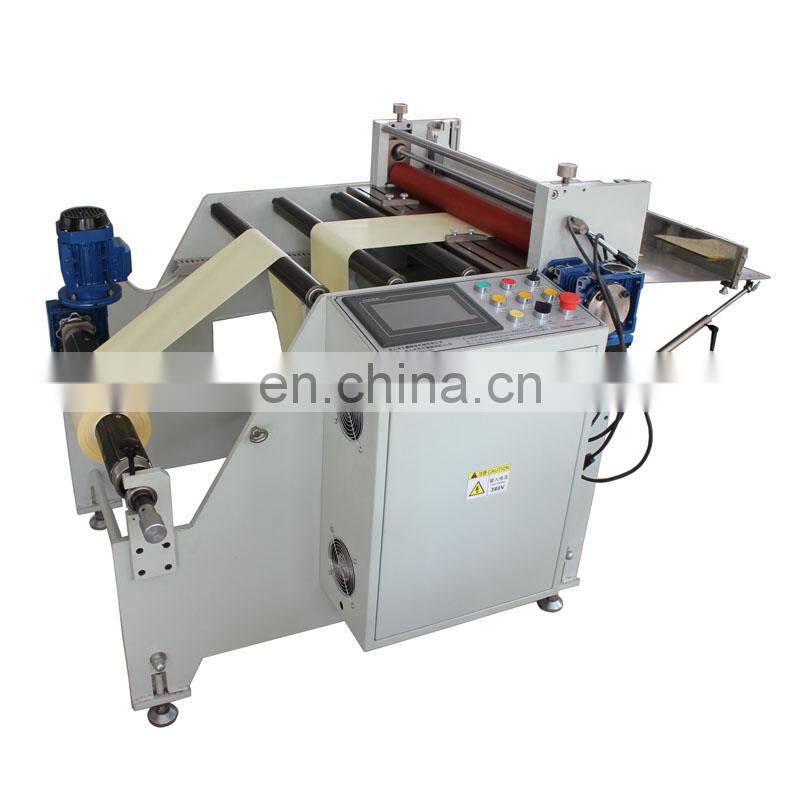

PET PVC film roll to sheet cutting machine with conveyor belt
Application:
This machine can cut flexible materials,such as plastic,paper,label,film,Mylar,foam,aluminum foil,copper foil, PET, PVC, PCB, FPC,silicon rubber, conductive fabric,double-sided adhesive tape,industrial tape,electronic tape,adhesive tape etc.
Feature:

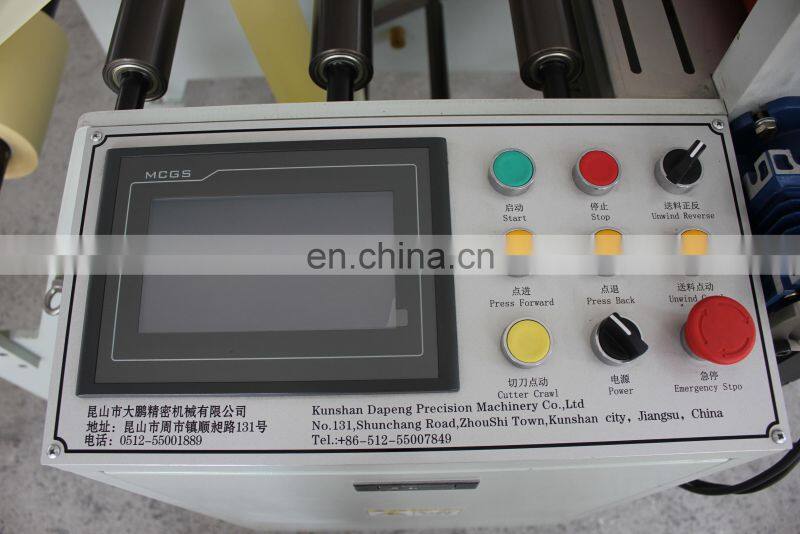

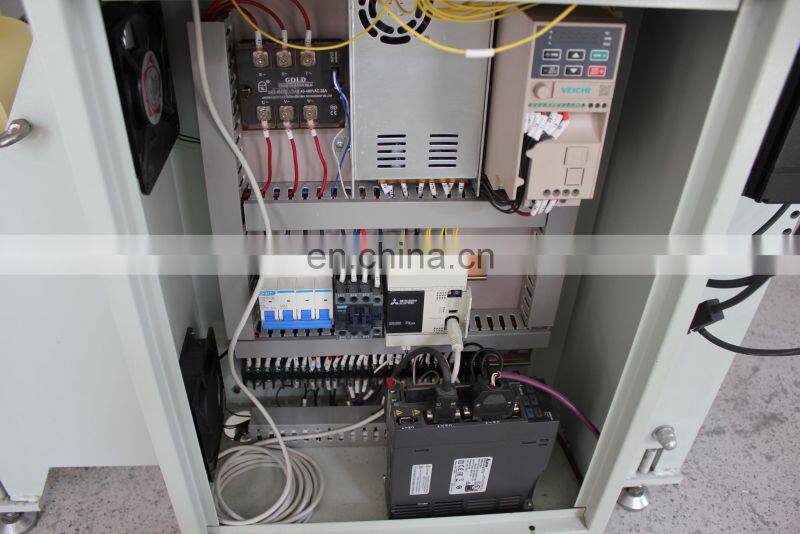

This machine employs DELTA servo motor to feed material,high precision,MITSUBISHI PLC with touch screen to set any length,quantity,speed,equipped with 3 inch inflatable shaft for unwinding.Panasonic photocell to track the printed mark for precise cutting.Electrical static eliminator to remove static electricity.
Technical Data:
|
Model |
DP-600 |
|
Max Feeding Width ( mm ) |
600 |
|
Max unwind roll diameter(mm ) |
600 |
| Max unwind roll weight(kg) | 40 |
| Unwind shaft diameter | 3 inch |
| Cut 600mm speed ( times/minute ) | 50-80 |
| Main Engineer Power | 2.5kw |
| PLC | MITSUBISHI |
| Servo Motor Servo Driver | DELTA |
| Precision ( mm ) | ±0.10 |
|
Voltage |
380V 50HZ |

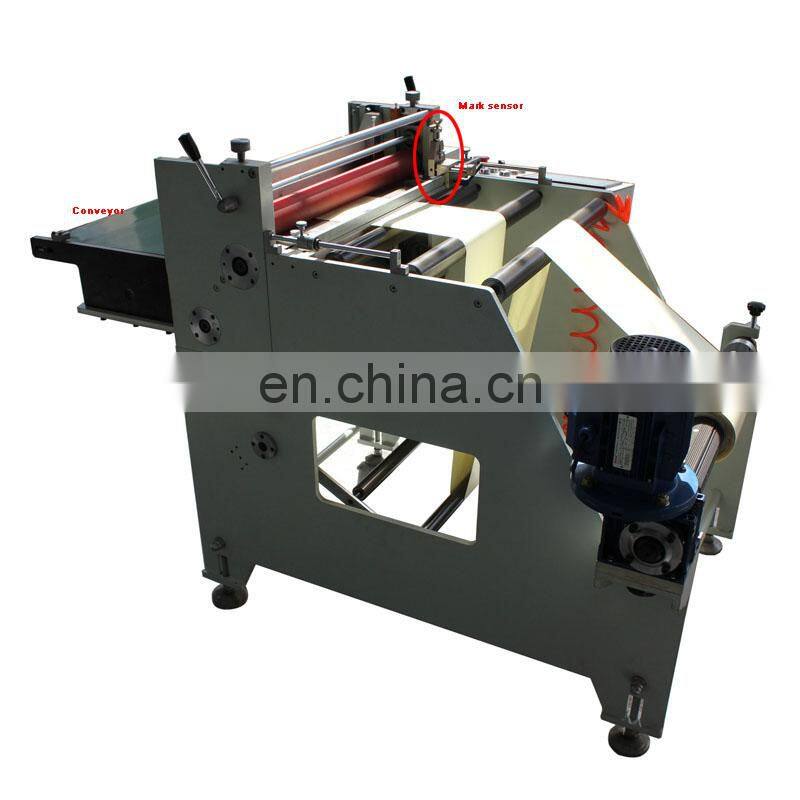

Mark sensor and conveyor are optional:
Other standard machine:360mm,500mm,800mm,1000mm,1400mm.
