Roll Protector Film Automatic Slitting Laminating Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Automatic insulation paper slitting machine
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery

Functional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and
receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to
detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and
metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
There are two selection ofr main engine, single electric motor, double electric motors.

Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum
foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,
leather, clothes making, plastic, etc.

Main Technical Parameter:

data as below is for reference only , you can customize to other data if required

Model	DP-650FQ
Max Feeding Width	650mm
Main Engineer Power	2.2kw
Speed	80m/min
Size	2400x1700x1300mm
Weight	1000kg
Rewinding Diameter	600mm
Winding Diameter	450mm
Precision	±0.1mm
Power	220V 50HZ

Model	1300 slitting machine	1600 slitting machine
Max Feeding Width ( mm )	1300	1600
Main Engineer Power ( KW )	6	6
Speed (T/M )	120	120
Size ( mm )	240020001300	240023001300
Weight (kg)	1200	1500
Rewinding diameter ( mm )	800	800
Winding diameter ( mm )	450	450
precision ( mm )	±0.10	±0.10
Power	380V 50HZ	380V 50HZ

waste rewinding motor part

this item can add the rewinding and unwinding air-shaft , add motor on it can running forward and reverse

Touch screen optional

when you need constant tension control ,

we can use PLC and Touch Screen to control the operation if required

Anti-sticking guiding roller optional

when you want to slitting some with Low viscosity adhesive rubber tape / paper tape etc , can choose use this kind guiding roller

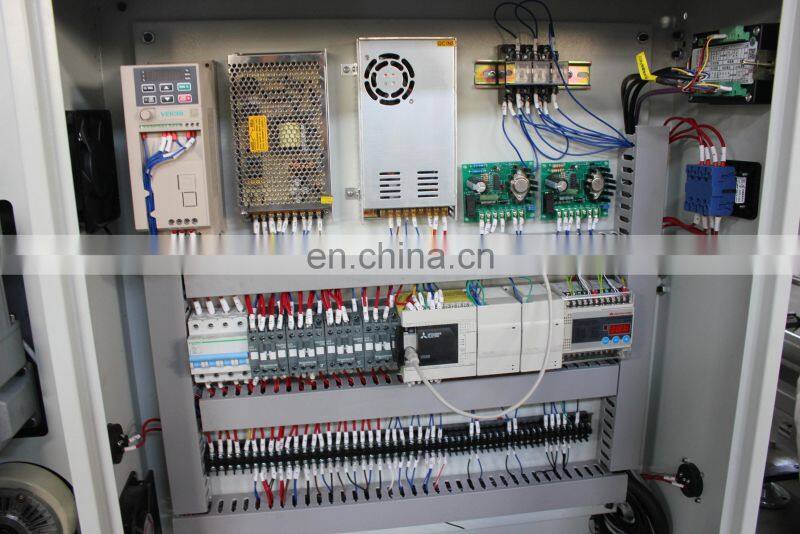

electric box of slitting machine

the slitting machine can choose PLC control

the PLC we use is Mitsubishi brand

with tension control board

with frequency control

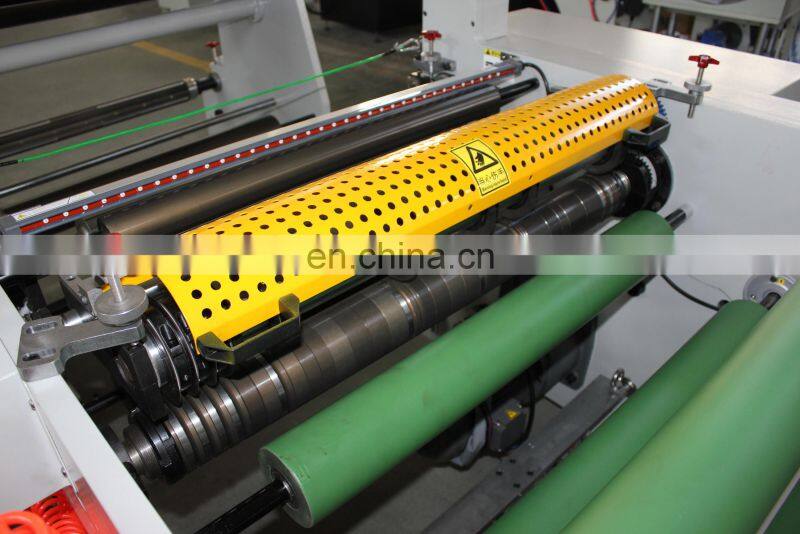

cutting blade part have protective cover

to keep operation safety , when you setted well the cutting blade , please cover the protective cover

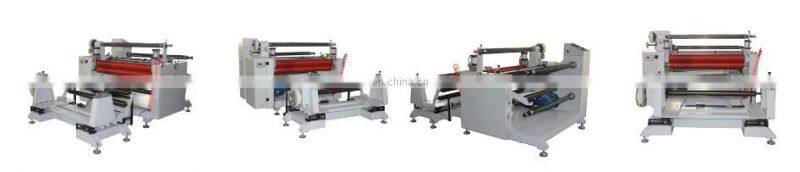

DIFFERENT ANGLE OF MACHINE

BELOW to show you our standard machine different angle view

Charatertistics and Functions

1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.

3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain

Purpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :

1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Features for

Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm / 1300mm / 1600mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years

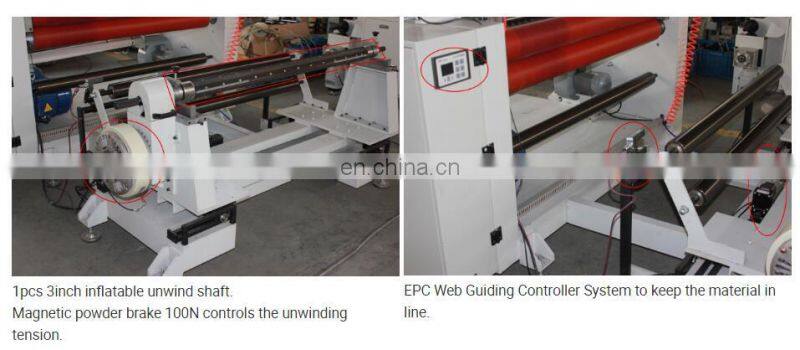

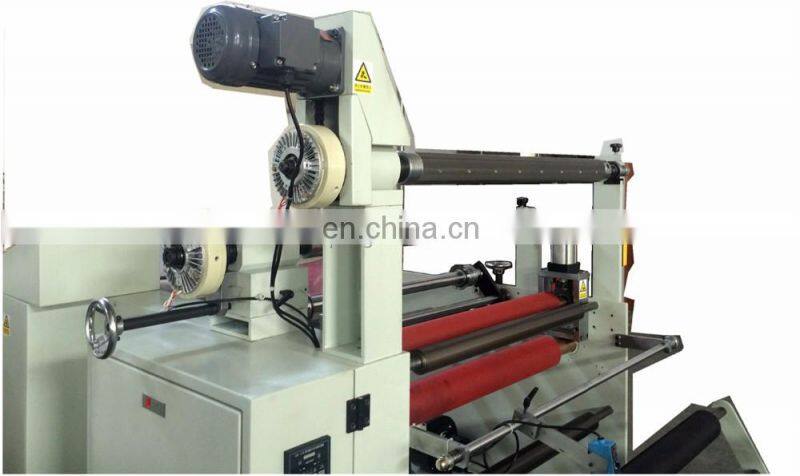

Unwinding part description

3 inch air-shaft for unwinding - can optional of 6 inch unwinding shaft too

Magnetic powder brake 100N also can be 150 or 200 that as required

EPC include the controller , driver and sensor

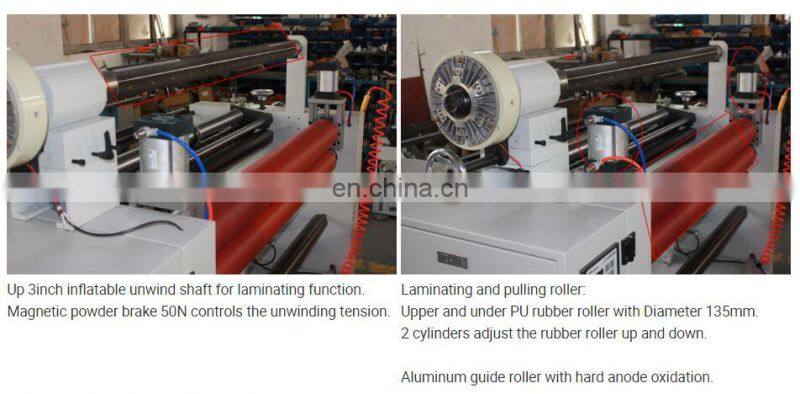

laminating and pulling material part

the up part unwinding is optional to use or not

when just one material slitting , then it not use

and when two material unwinding, it is function of cold laminating

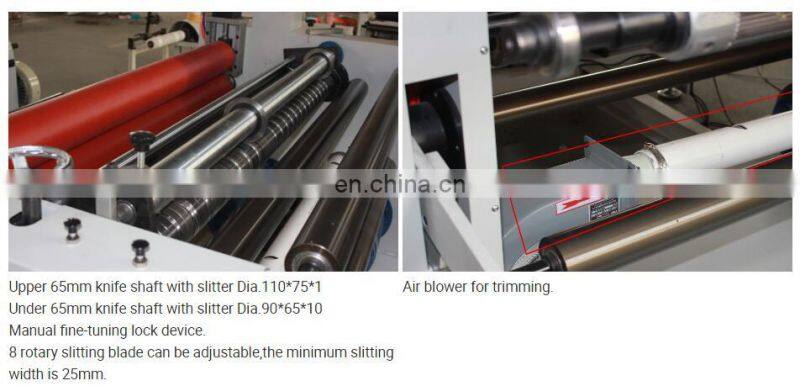

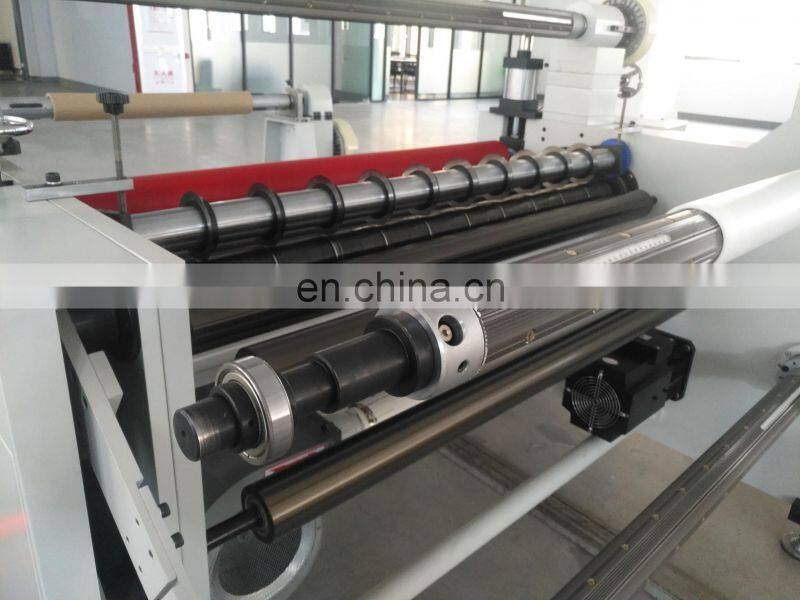

Slitting part and waste trimming part

the blade size upwards is standard of 1300mm machine size , other larger diameter also optional

and down part can be Nylon roller optional when need slitting EVA sponge mterials

slitting blade 8 sets is standard , you can buy more when required

and minimum slitting width 10mm is optional

Rewinding part

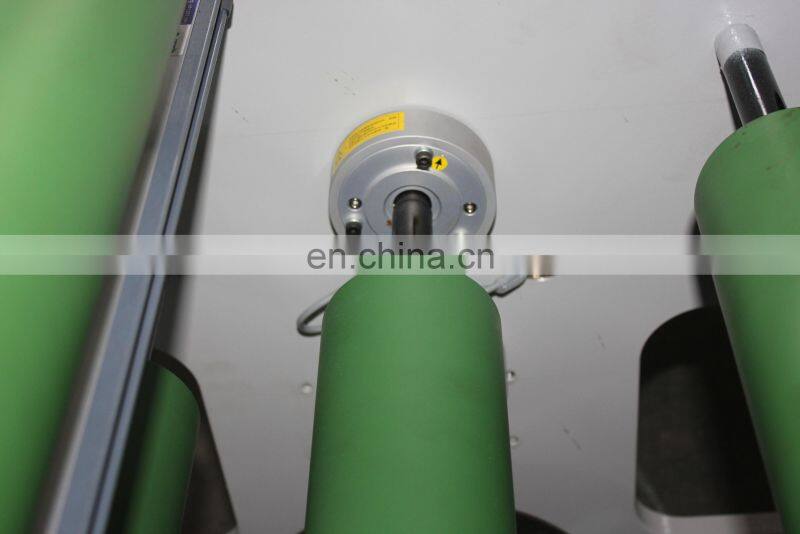

2pcs 3 inch inflatable rewinding airshaft , magnetic powder clutch 50 N control the rewinding tension

double main motor

2 pneumatic arms to hold the rewinding shaft

the rewinding air-shaft diameter 1 inch and 2 inch are optionaland slip shaft optional

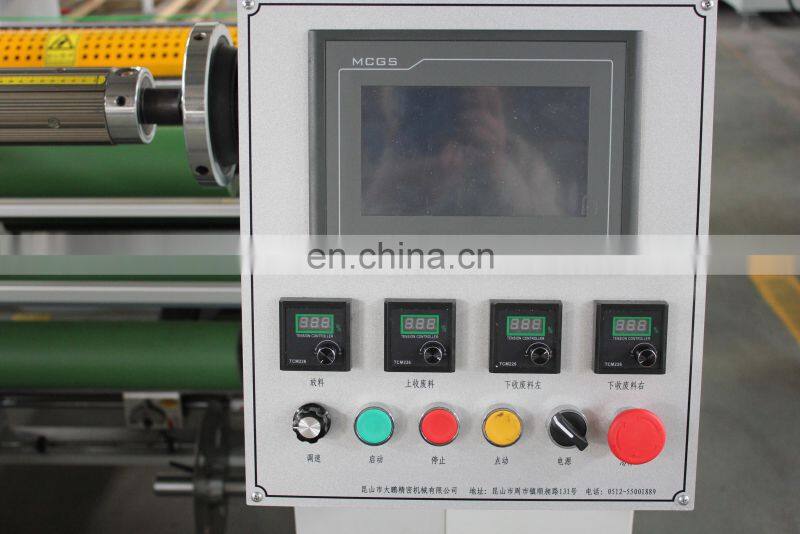

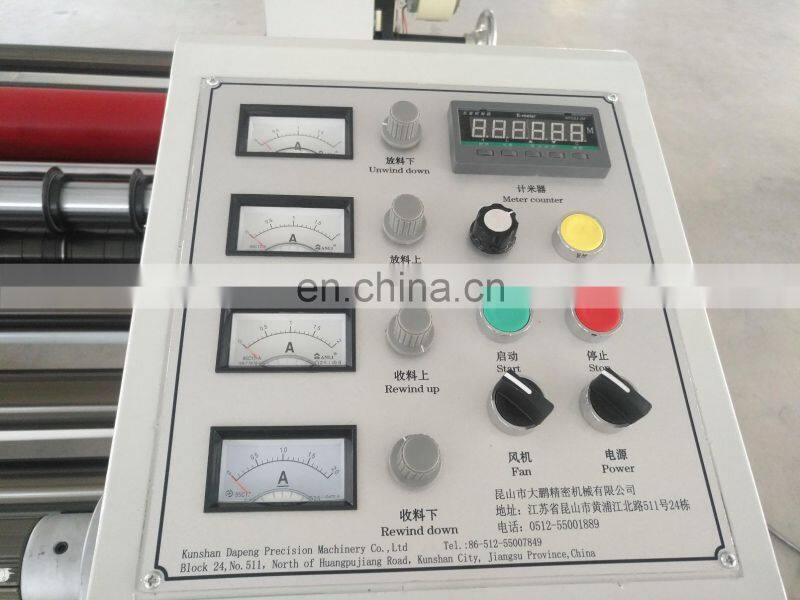

operation board

the slitting speed and the tension can be set on this control panel ,

with meter counter

Specification

item	value
Type	Laminating Machine
Applicable Industries	Roll Protector Film Automatic Slitting Laminating
Showroom Location	Roll Protector Film Automatic Slitting Laminating Machine
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	PLC, Motor
Condition	New
Application	Machinery & Hardware
Packaging Type	Cartons
Packaging Material	Paper
Automatic Grade	Automatic
Driven Type	Mechanical
Voltage	380V/50HZ
Place of Origin	China
	Jiangsu
Brand Name	DAPENG MACHINERY
Dimension(LWH)	240023001300
Weight	2000KG
Warranty	1 Year
Key Selling Points	Easy to Operate
After-sales Service Provided	Engineers available to service machinery overseas
Product name	Roll Protector Film Automatic Slitting & Laminating Machine
Trade Term	FOB/CFR/CIF/FCA
Speed	60-150m/min
Base Material	Stainless Steel

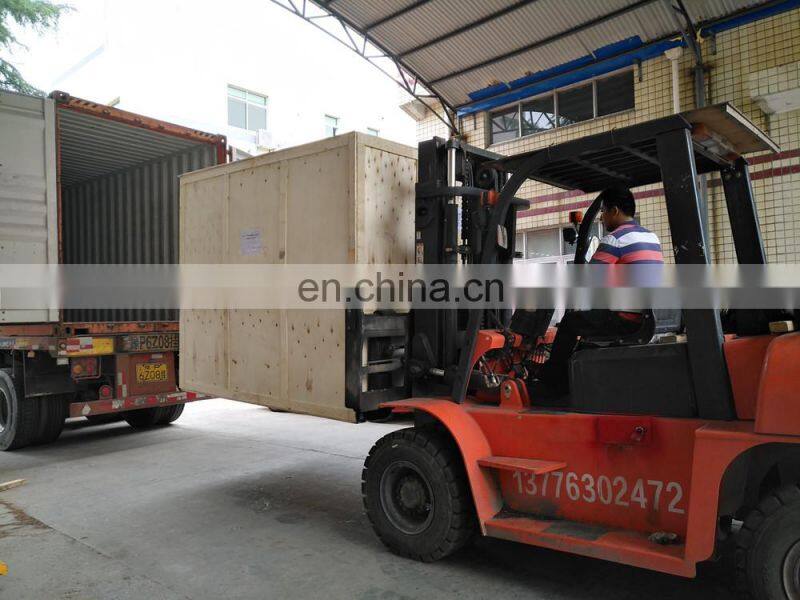

Packing & Delivery

standard wooden case packing

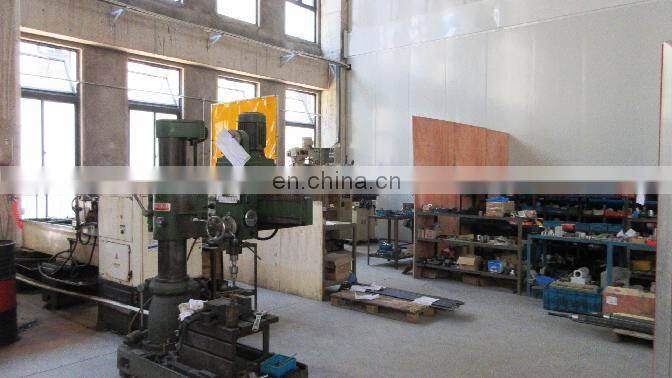

Company Profile
