650 Splicing Machine 220v/380v Paper Processing Machinery Slitting Rewinding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Foil Slitting Rewinding MachineNegotiableMOQ: 1 -
Kraft Paper Adhesive Tape Printing Laminate Slitting Rewinding Machine Slitting Rewinder 150 M/min Production Capacity +/- 0.1mmNegotiableMOQ: 1
-
Automatic Paper Slitting and Rewinding MachineNegotiableMOQ: 1
-
Automatic Roll BOPP Film Paper Slitter Rewinder MachineNegotiableMOQ: 1
-
Automatic Slitting Machine for Paper (slitting Rewinder) 150 M/min Production Capacity 1600mm Max. Workable WidthNegotiableMOQ: 1
Automatic insulation paper slitting machine
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
Features:
This machine employs photoelectric track and rectification system, and the magnetic powder clutch is adopted to control the
feeding and receiving tension. Main machine adopts frequency conversion speed regulation. The movement of the rubber covered
roller is controlled by the cylinder. Sticking and slitting be done at one time , sticking or slitting can be done separately.
Accurate slitting, fast speed, easy to operate and maintenance .
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
Features:
This machine employs photoelectric track and rectification system, and the magnetic powder clutch is adopted to control the
feeding and receiving tension. Main machine adopts frequency conversion speed regulation. The movement of the rubber covered
roller is controlled by the cylinder. Sticking and slitting be done at one time , sticking or slitting can be done separately.
Accurate slitting, fast speed, easy to operate and maintenance .
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Main Technical Parameter:
data as below is for reference only , you can customize to other data if required
Model |
DP-650FQ |
Max Feeding Width |
650mm |
Main Engineer Power |
2.2kw |
Speed |
80m/min |
Size |
2400x1700x1300mm |
Weight |
1000kg |
Rewinding Diameter |
600mm |
Winding Diameter |
450mm |
Precision |
±0.1mm |
Power |
220V 50HZ |
waste rewinding motor part
this item can add the rewinding and unwinding air-shaft , add motor on it can running forward and reverse
Touch screen optional
when you need constant tension control ,
we can use PLC and Touch Screen to control the operation if required
Anti-sticking guiding roller optional
when you want to slitting some with Low viscosity adhesive rubber tape / paper tape etc , can choose use this kind guiding roller
electric box of slitting machine
the slitting machine can choose PLC control
the PLC we use is Mitsubishi brand
with tension control board
with frequency control
cutting blade part have protective cover
to keep operation safety , when you setted well the cutting blade , please cover the protective cover

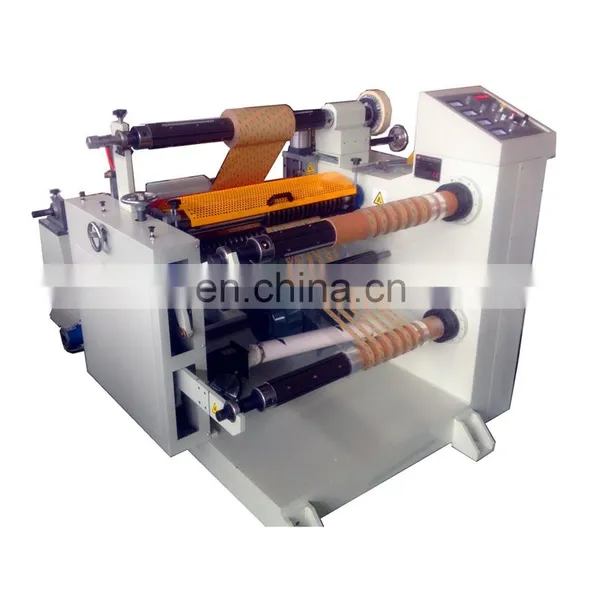

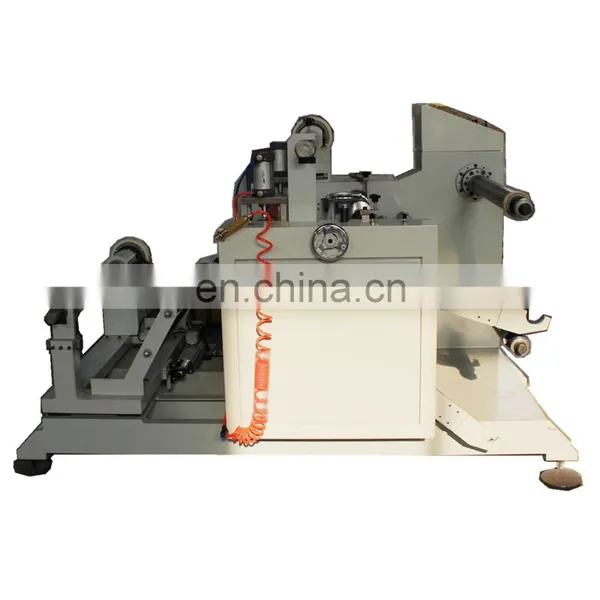

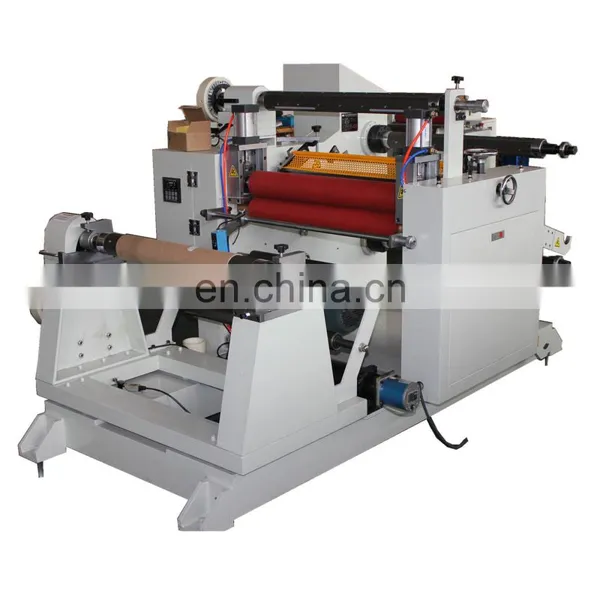

DIFFERENT ANGLE OF MACHINE
BELOW to show you our standard machine different angle view
Charatertistics and Functions
1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Features for
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
