portable 5000N cable tension meter for high speed rail industry
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Food testing lab equipment Pesticide residue test meter
-
Carbamate and Heavy metal testing pesticide residue tester
-
Food safety analyzer pocket type LCD automatic pesticide residue test meter
-
Vegetable food fruit testing laboratory equipment pesticide residue tester
-
Reliable quality high efficiency pesticide residue analyzer with self-calibration function
-
Lab fruit pesticide residue rapid test food safety tester
Product Description
Product Description

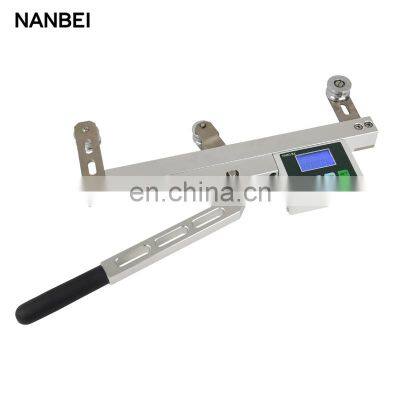

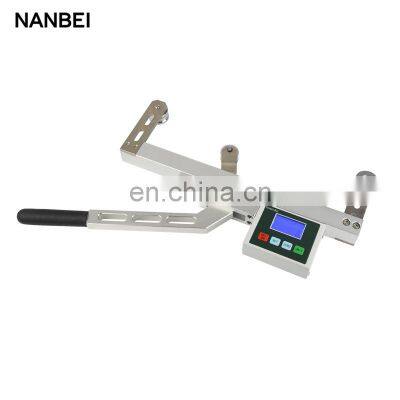

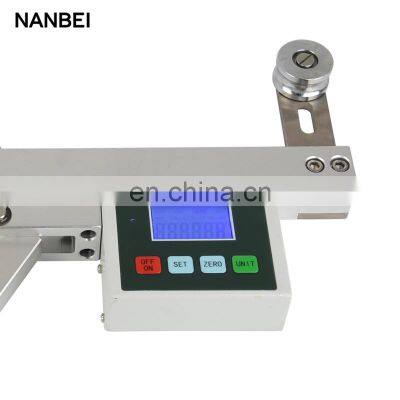

AZGH cable tension meter for high speed rail industry
The AZGH series cable tension meter is an on-line measurement of wire and cable, fiber and rope
tension equipment, suitable for high-speed rail industry, power industry, communications industry,
transportation industry, construction industry, playground, etc. involving wire rope tension
measurement When used. Also applies to the major scientific research institutions, testing
organizations and other occasions.
tension equipment, suitable for high-speed rail industry, power industry, communications industry,
transportation industry, construction industry, playground, etc. involving wire rope tension
measurement When used. Also applies to the major scientific research institutions, testing
organizations and other occasions.
Feature
1. On-line measurement: When measuring rope, the rope does not need to be disassembled, can be measured on-line tension cable, real-time loading rope tension, can be observed online real-time tension.
2. portable: the instrument uses high-strength aluminum alloy structure, light weight, small size,easy to carry, measuring rope tension, one person can complete all operations.
3. easy to operate: the instrument loading mechanism with a lever structure, only need to pushthe instrument handle in the end can correctly measure the rope tension; easy to operate, a person in 30 seconds to complete a measurement.
4.instrument performance is stable, high precision, when the measured rope specifications and
the wattage stored in the same number of rope, in the range can be measured within the
measurement accuracy of up to 5%.
5.Instrument built-in three kinds of preset specifications of the rope, the measurement only
need to select the appropriate rope number can be.
6.digital display force value, the instrument uses LCD display measurement force value, reading more convenient.
7.Three units of switching: the instrument can switch N, Kgf and Lbf three force values.
8.The instrument can store 383 sets of measurement data, and the saved data can be exported from the computer.
1. On-line measurement: When measuring rope, the rope does not need to be disassembled, can be measured on-line tension cable, real-time loading rope tension, can be observed online real-time tension.
2. portable: the instrument uses high-strength aluminum alloy structure, light weight, small size,easy to carry, measuring rope tension, one person can complete all operations.
3. easy to operate: the instrument loading mechanism with a lever structure, only need to pushthe instrument handle in the end can correctly measure the rope tension; easy to operate, a person in 30 seconds to complete a measurement.
4.instrument performance is stable, high precision, when the measured rope specifications and
the wattage stored in the same number of rope, in the range can be measured within the
measurement accuracy of up to 5%.
5.Instrument built-in three kinds of preset specifications of the rope, the measurement only
need to select the appropriate rope number can be.
6.digital display force value, the instrument uses LCD display measurement force value, reading more convenient.
7.Three units of switching: the instrument can switch N, Kgf and Lbf three force values.
8.The instrument can store 383 sets of measurement data, and the saved data can be exported from the computer.
Specification
Copper stranded wire tension meter built-in specification table model AZGH-A-5000G
Wire diameter(mm) | full range(N) |
Copper stranded wire | Copper stranded wire |
φ7.5 | 5000 |
φ9 | 5000 |
φ10.5 | 5000 |
Copper stranded wire tension meter built-in specification table model AZGH-B-5000G
Wire diameter(mm) | full range(N) |
Copper stranded wire | Copper stranded wire |
Φ10.5 | 5000 |
Φ12.5 | 5000 |
Φ14 | 5000 |
Copper stranded wire tension meter built-in specification table model AZGH-C-5000G
Wire diameter(mm) | full range(N) |
Copper stranded wire | Copper stranded wire |
Φ12.5 | 5000 |
Φ14 | 5000 |
Φ16 | 5000 |
Exterior structure
