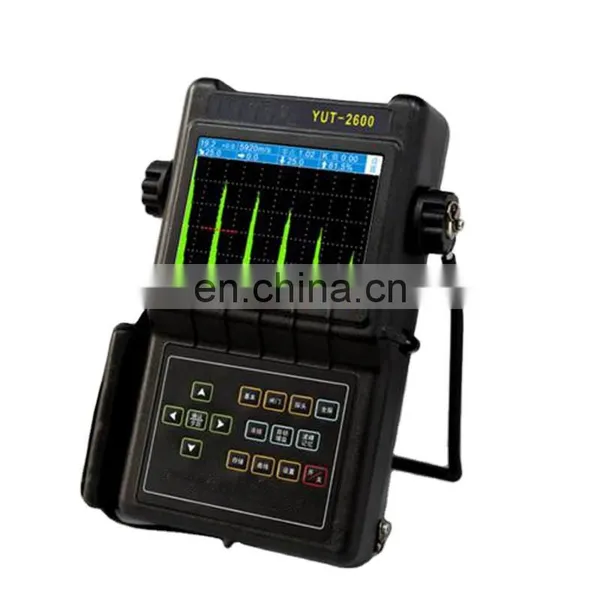

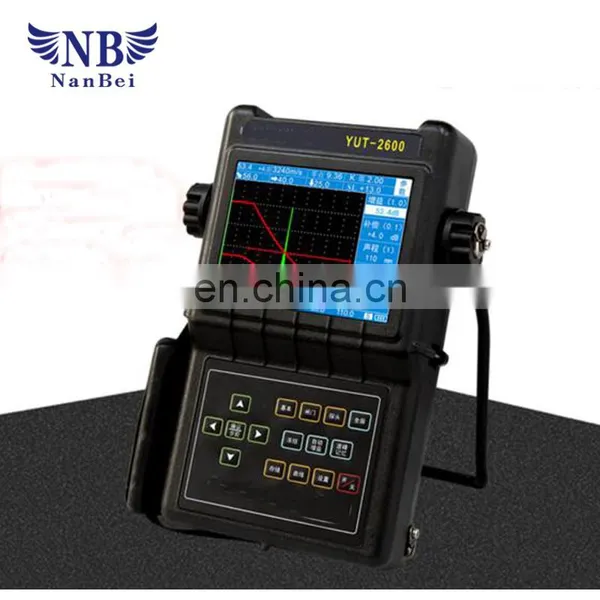

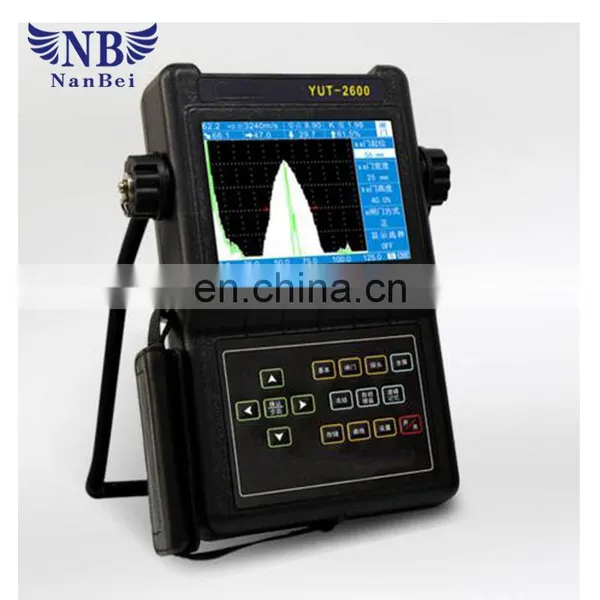

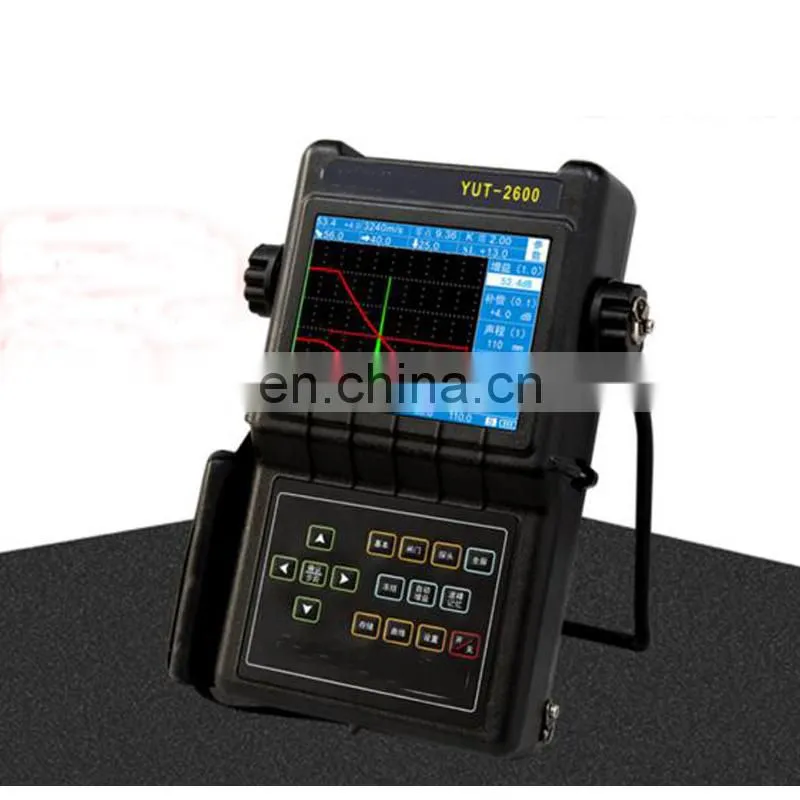

Digital portable ndt ultrasonic flaw detector with high precision
1.Feature and Description
1. Fully sealed design, including instrument housing, battery case, fastening screws, external interface
2. Sturdy shell, plastic housing inlaid with 31 copper nuts
3. Innovative rotary positioning bracket for easy access
4. Can be left and right to install hand strap, left hand, right hand machine are applicable

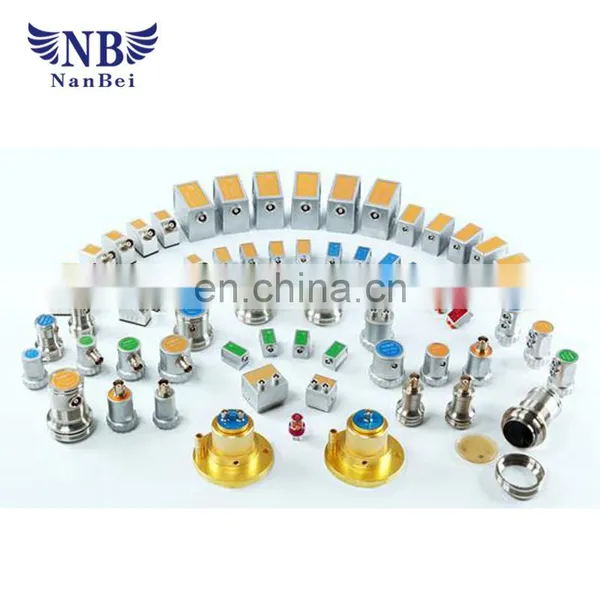

5. The probe interface is available with BNC or Lemo
6. The D-ring on the instrument makes it easy to install the chest strap
7. Corrosion texture on the shell surface
8. Innovative computer notebook type high energy lithium battery
Full-screen display: so that the echo display area covers the entire screen, giving workers the greatest window experience
Solid waveform display: increase the waveform visual contrast, fast scan is not easy to leak detection
Large capacity memory: that can store up to 1000 data sets, including waveforms, curves, parameters, etc. (including the traditional sense of the 1000 channels)
Chinese and English interface
Simple operation: the user can quickly grasp the use of the instrument
basic skills
Peak memory: real-time envelope shows the highest wave of defects, record the maximum defect, contribute to the precise positioning of defects and rapid scanning, but also with the envelope waveform to qualitative
Automatic Gain: Automatically adjusts the gain to the set amplitude height
Alarm function: wave / loss alarm
Real Time Clock: Automatically records the date and time of the stored waveform
Display Freeze: Capture waveform and sound data at any time and move the gate to measure echo parameters after freezing
Defect location: real-time display sound path S, horizontal X, depth Y, wave height H
Digital suppression: 0-80%, by 1% increase, does not affect the linearity and gain

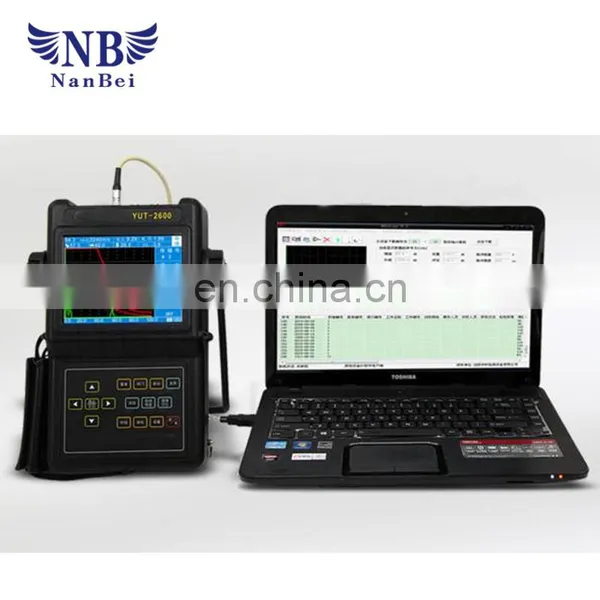

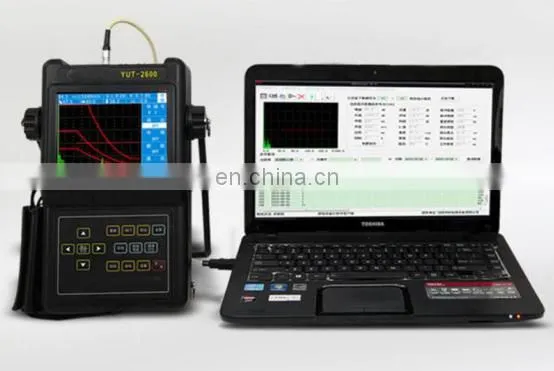

Data communication: through the RS232 interface and computer communication, waveform, data transmission, to achieve the detection of the results on the computer management and inspection report generation, print output, etc.
2 independent measuring gates to monitor echo amplitude and sound distance
The depth of the second and third wave defects in the transverse wave detection is automatically calculated according to the thickness
Perfect DAC curve function, curve with the gain, sound path, displacement changes
Adjustable brightness of the true color TFT LCD screen, with a variety of color options freely
2.Picture for Our product
3.Usage and Application

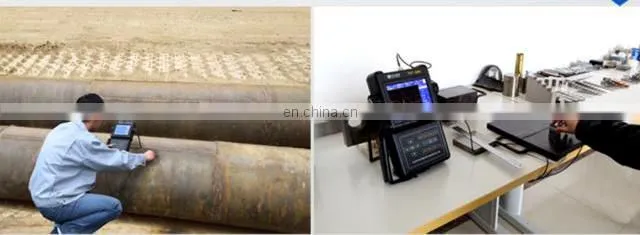

Ultrasonic flaw detector is a portable industrial nondestructive testing equipment, it can quickly, easily, without damage, accurate inside the workpiece a variety of defects (cracks, loose, pores, inclusions, etc.) detection, positioning, assessment and diagnosis. Can be used in the laboratory, can also be used for engineering site. Widely used in boilers, pressure vessels, aerospace, aviation, electricity, petroleum, chemical, offshore oil, pipeline, shipbuilding, automobile, machinery manufacturing, metallurgy, metal processing industry, steel structure, railway transportation, nuclear power, universities industry.
4.Technical Data
|
Operating frequency |
(0.5-15) MHz |
|
Detection range |
(0-4500) mm (steel longitudinal wave) |
|
Material sound velocity |
(1000-9999) m / s |
|
Work way |
pulse echo, twin crystal |
|
Pulse shift |
(0-2000) mm |
|
probe zero |
(0-99.99) us |
|
gain adjustment |
(0-110) dB, 0.1dB, 2dB, 6dB step, fully automatic adjustment |
|
vertical linearity error |
≤ 3% |
|
horizontal linearity error |
≤ 0.3% |
|
Resolution |
≥ 32dB (5P14) |
|
dynamic range |
≥ 30dB |
|
sensitivity margin |
≥ 60dB (deep 200mm Φ2 flat bottom hole) |
|
communication |
RS232 interface and computer connection |
|
Average noise level |
≤10% |
|
TFT color LCD display |
320 * 240 5.7 inch bright TFT display LCD screen |
|
large-capacity storage |
can store up to 1000 data sets, including waveforms, curves, parameters, etc. (including the traditional sense of the 1000 channels) |
|
gate alarm |
into the door / lost door sound alarm, width, height, position continuously adjustable |
|
battery working time |
10 hours |
|
Operating temperature |
-10 ℃ ~ 50 ℃ |
|
Power |
220VAC, 11VDC 6600mA large capacity lithium battery, can work continuously 9 hours |
|
Overall dimensions |
270mmX190mmX60mm |
|
Weight |
1.4Kg without battery
|
5.Packing and Shipping
6.Related Product
|

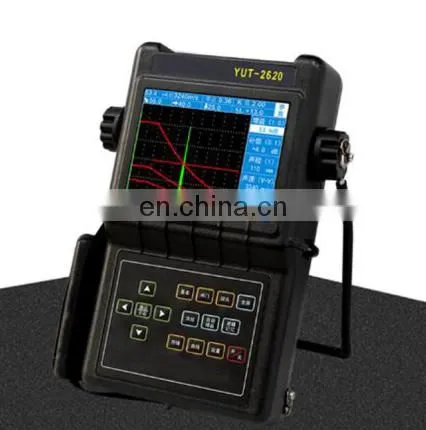

YUT-2620 Features: True Color TFT LCD DAC Curve AVG Curve Φ Value Calculation Distance Compensation Data Logger UtView Software + MORE |
|
|
YUT-2800 Features: True Color TFT LCD DAC Curve Changeable Squared Ultrasonic Pulse Wide/Narrow Band Filters Four Impedance Matching Data Logger UtView Software + MORE |
|
|
YUT-2820 Features: True Color TFT LCD DAC Curve AVG Curve Φ Value Calculation Distance Compensation Changeable Squared Ultrasonic Pulse Wide/Narrow Band Filters Four Impedance Matching Data Logger UtView Software + MORE |
|
|
NB5100 Detection range: 0-10000mm |
|
1.Company Show
2.Factory Show
1.Certification
2.Warranty and After-sale service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
1.Customer Photo
2.Transaction History
We are one of the leading NDT weliding test equipment manufacturer in China. Many types are available. For more products information, or any problems, please no hesitation to contact us↓, we will reply you ASAP!
