Lab Testing Equipment Electric Single Column Vertical Force Gauge Test Stand

Lab Testing Equipment Electric Single Column Vertical Force Gauge Test Stand thumbnail-1
Lab Testing Equipment Electric Single Column Vertical Force Gauge Test Stand thumbnail-2
Lab Testing Equipment Electric Single Column Vertical Force Gauge Test Stand thumbnail-3
Lab Testing Equipment Electric Single Column Vertical Force Gauge Test Stand photo-1
Lab Testing Equipment Electric Single Column Vertical Force Gauge Test Stand photo-2
Lab Testing Equipment Electric Single Column Vertical Force Gauge Test Stand photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
NANBEI
Place of Origin:
China
Model Number:
AEL Series
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NANBEI
Place of Origin China
Model Number AEL Series

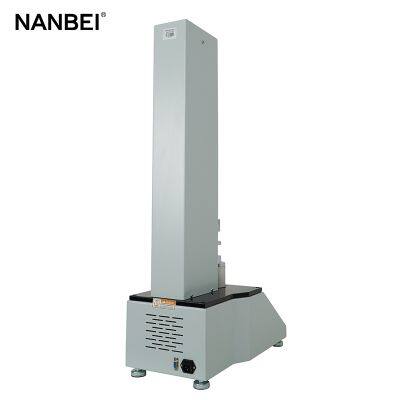

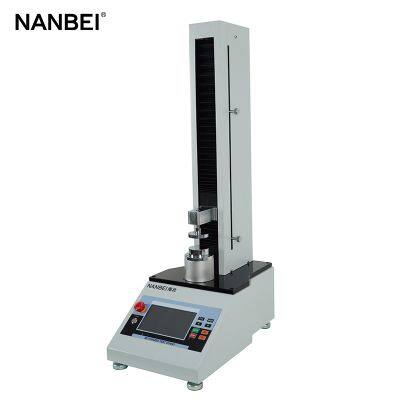

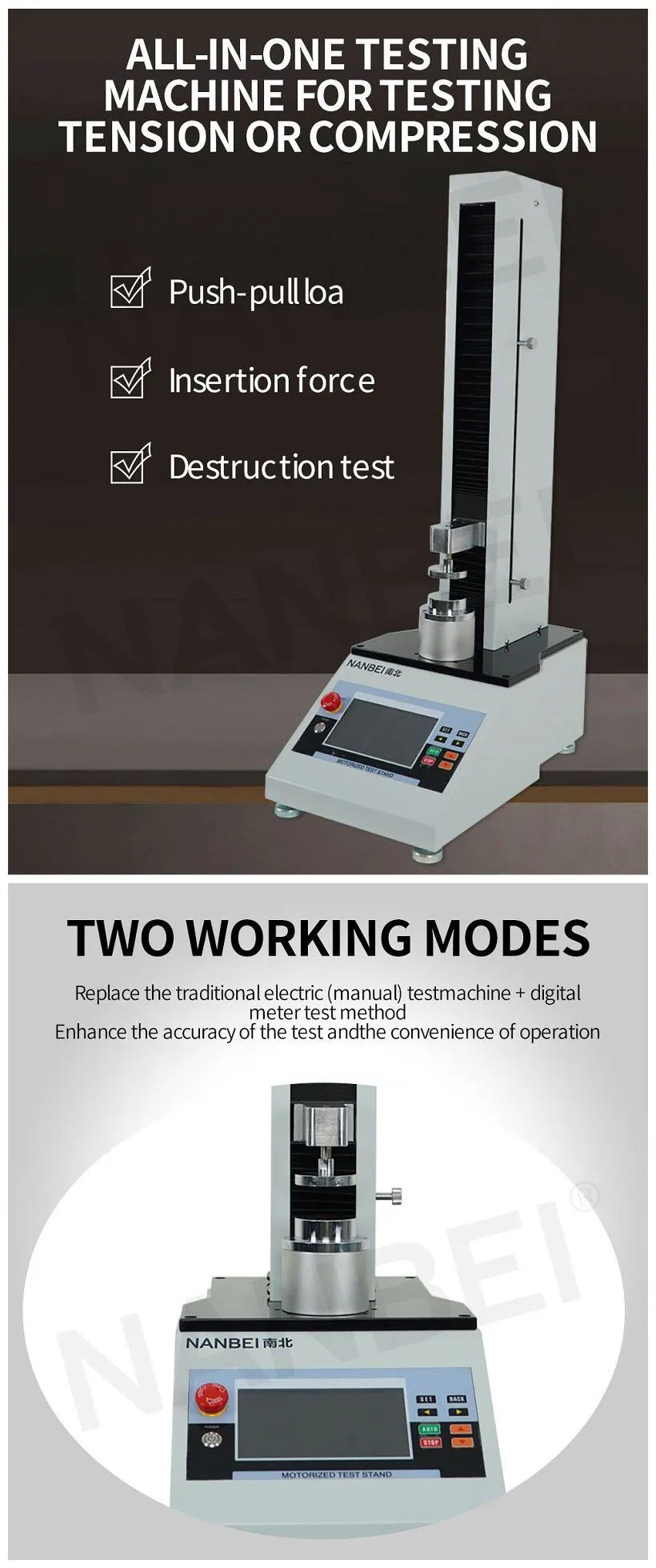

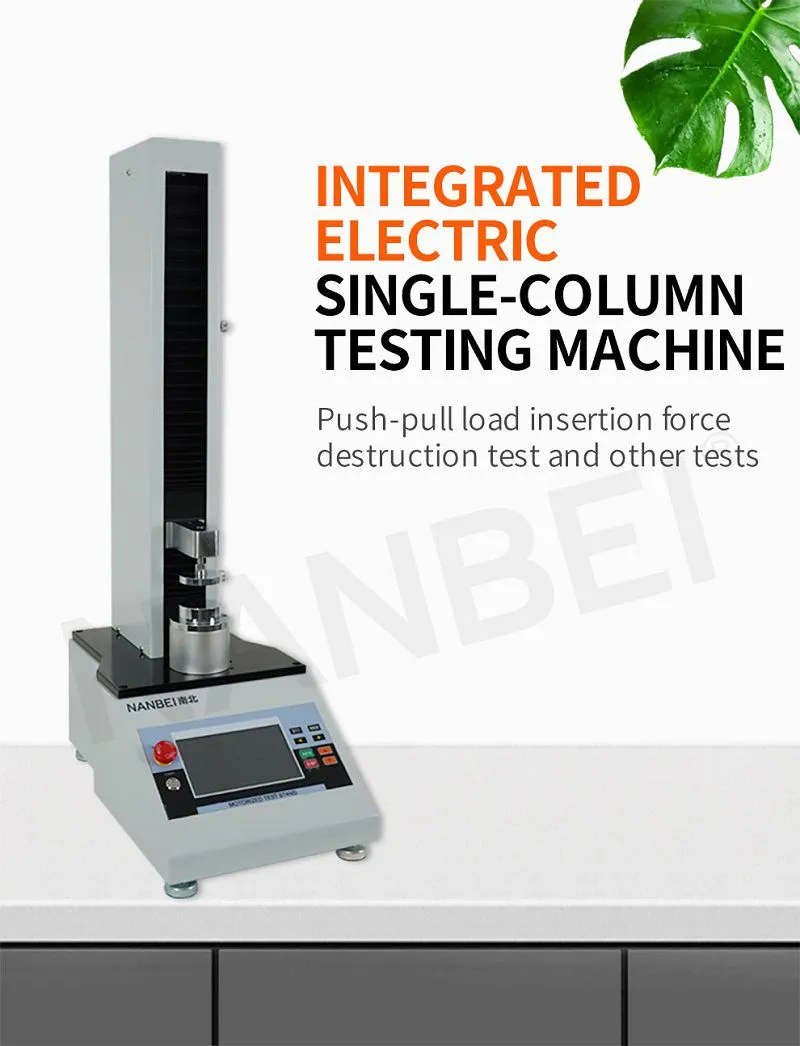

Electric Single Column Vertical Force Gauge Test Stand

Features

1:Electric load, step less speed regulation, gear drive

2:Compact structure, stable drive

3:Simple operation, able to be used with various kinds of clips

Specifications and Parameters

1: Maximum load: 500N

2: Effective travel: 200mm

3: Test speed:15~240 or 60-500 mm/min(choose by customer)

4: Working voltage: 110-220V

5: Outline dimension: 400x320x620mm

6: Net weight: 30-40kg

More models

Model
AEL-A-2
AEL-A-3
AEL-A-5
AEL-A-10
AEL-A-20
AEL-A-30
MAX load
2N
3N
5N
10N
20N
30N
0.2kg
0.3kg
0.5kg
1kg
2kg
3kg
0.45L
0.65L
1.1L
2.2L
4.5L
6.5L
Load value graduation value
0.001N
0.01N
0.0001kg
0.001kg
0.0001Lb
0.001Lb
Accuracy
+-0.5%
Valid itinerary
400mm
Test speed
1-300mm/min
Operating Voltage
AC:110V/AC:220V
Dimensions
290mm*500mm*900mm
net weight
37kg


Model
AEL-A-50
AEL-A-100
AEL-A-200
AEL-A-300
AEL-A-500
AEL-A-1000
MAX load
50N
100N
200N
300N
500N
1000N
5kg
10kg
20kg
30kg
50kg
100kg
11Lb
22Lb
45Lb
65Lb
110Lb
220Lb
Load value graduation value
0.01N
0.1N
0.001kg
0.01kg
0.001Lb
0.01Lb
Accuracy
+-0.5%
+-0.1%
Valid itinerary
400mm
Test speed
1-300mm/min
Operating Voltage
AC:110V/AC:220V
Dimensions
290mm*500mm*900mm
net weight
37kg
