Weld inspection electronic ultrasonic flaw detector price
1.Feature and Description
The 3600 digital ultrasonic flaw detector offers state-of-the-art technology in a package that is compact and lightweight 1.28kg. It is a full-featured and reliable instrument which can be used in various industries. suitable for various detection demands of forged pieces, welding lines, airplane parts
The NB-3600 adopts an embedded computer system and a super large-scale field programmable IC design, which combine all good performance of a large ultrasound system in a very small space: at least 65dB detection sensitivity surplus will meet detection demand for large forged pieces or coarse-crystal material; LAN Ethernet port for real-time communication with a PC (Host) and remote control; Cine loop function for recording the dynamic scanning process; The new-type color TFT LCD results in optimize read & measure effect and visual comfort; The simple but convenient surface wave tracking function is good for immersion detection; Together with new techniques and new functions such as DAC, RF echo display, large memory and USB port, the OND-3600 becomes a handy ultrasonic flaw detector with excellent performance. Furthermore, the fast response time of the color TFT LCD enables display of fast scanning echoes; the touch keypad is reliable and comfortable for use; Its outstanding EMC design significantly increases field anti-interference of the system.

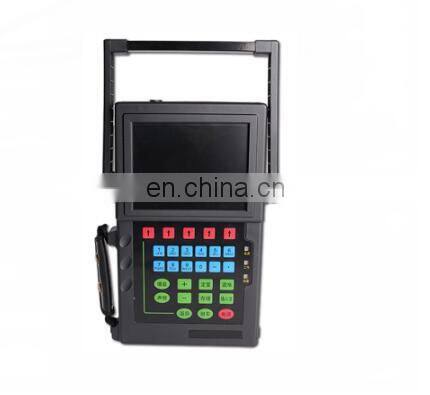

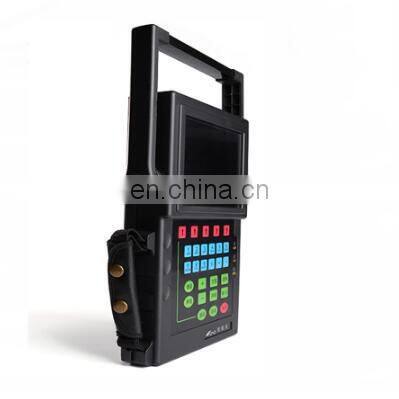

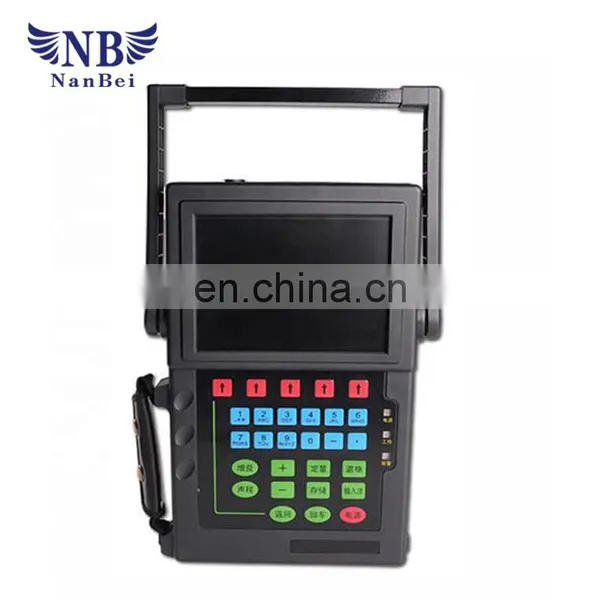

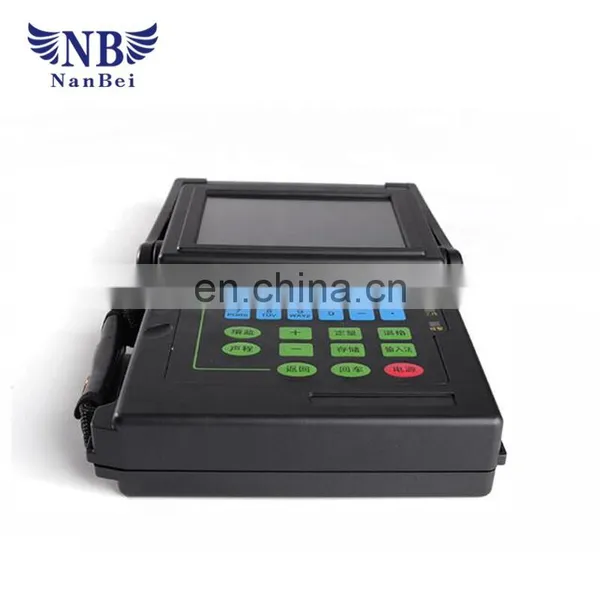

2.Picture for Our product

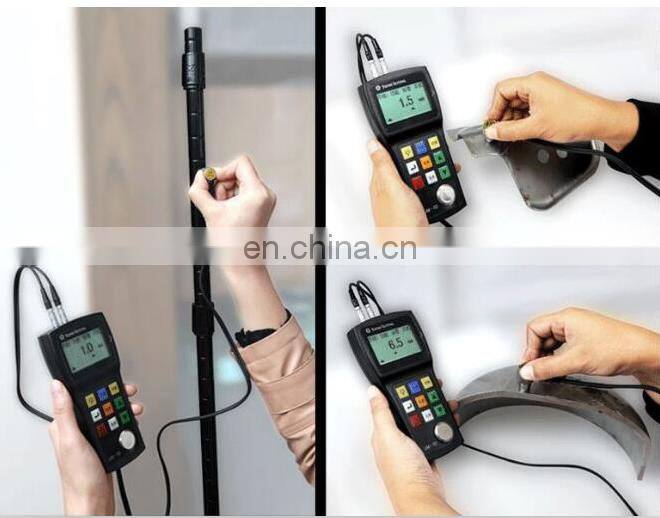

3.Usage and Application
Ultrasonic flaw detector is a portable industrial non-destructive testing equipment, it can quickly, easily, without damage, accurate inside the workpiece a variety of defects (cracks, loose, pores, inclusions, etc.) detection, positioning, assessment and diagnosis. Can be used in the laboratory, can also be used for engineering site. Widely used in the boiler, pressure vessel, aerospace, aviation, electricity, petroleum, chemical, offshore oil, pipeline, shipbuilding, automobile, machinery manufacturing, metallurgy, metal processing industry, steel structure, railway transportation, nuclear power, universities industry.
4.Technical Data
|
Transmitter Pulse |
Square Wave Pulser |
|
Transmitter Pulse Voltage: 25 ~ 400V, continuously |
|
|
Test Modes |
Pulse echo and dual transmission |
|
Damping |
400, 80 Ohm |
|
Frequency |
0.5 ~ 20MHz. Broadband / narrowband optional |
|
Gain |
0.0~ 110.0dB. Steps as 0.1, 1.0, 2.0, 6.0 dB |
|
Material Velocity |
1000 ~ 15000m/s continuously adjustable. 30 common material velocities selectable |
|
Range |
0.0~ 8000mm longitudinal wave at steel velocity. Range continuously variable with minimum 0.1mm increments |
|
Rectification |
Positive halfwave, negative halfwave, full wave, RF |
|
Alarm |
Real-time alarm signal indicated by horn or LED indicator |
|
Display |
5.7" high-brightness TFT color LCD |
|
Pulse Shift |
-20 ~ 3000μs |
|
Probe Zero Offset |
0 ~ 999.9μs |
|
Pulse Repetition Frequency (PRF) |
25 ~ 1000Hz, auto and manual adjustment modes optional |
|
Vertical Linearity Accuracy |
≤3% |
|
Horizontal Linearity Accuracy |
≤0.1% |
|
Surplus Sensitivity |
≥56dB (200 2 flat bottom hole) |
|
Resolutions |
≥34dB |
|
Dynamic Range |
≥30dB |
|
Reject (suppression) |
0 ~ 90% |
|
Electric Noise Level |
<10% |
|
Interface |
C6 transducer connections, USB HOST, LAN, RF OUT, Two-dimensional encoder interface |
|
Power Supply |
Large-capacity Li Battery, no memory effect; Battery Operating time: More than 6 hours |
|
Environmental Temperature |
-30 ~ 50℃ |
|
Relative Humidity |
20% ~ 95%RH |
|
Weight |
1.5Kg (with battery) |

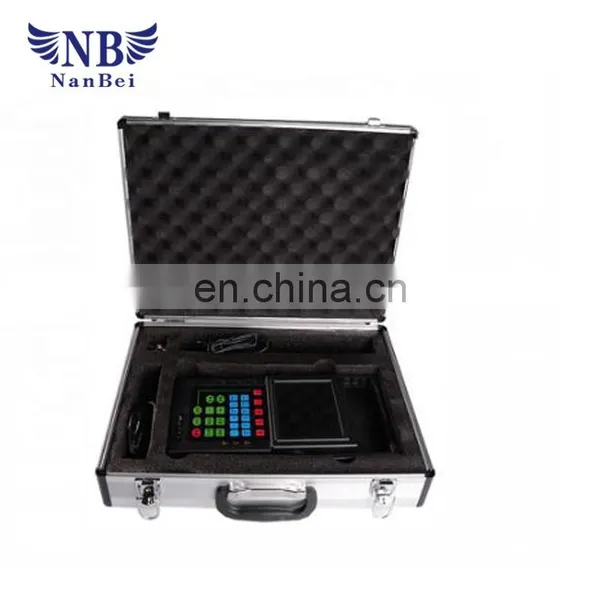

5.Packing and Shipping
6.Related Product
| ultrasonic coating thickness gauge |
|
Warranty and After-sale service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
