Electric cheap price ultrasonic thickness measuring device
1.Feature and Description

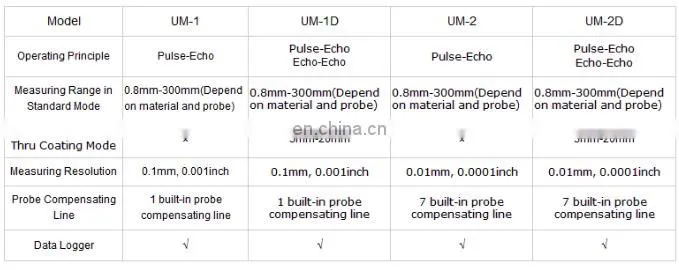

UM -1 is the basic thickness meter and UM-1D offers this special function, when there is oil paint on the surface of the object, the net thickness of the material can be directly measured without necessarily remove the paint.
General thickness measurement mode measures the thickness of an object by calculating the time difference T1 of the probe sending ultrasonic pulse to the object and the probe receiving the reflection from the first bottom echo(including the coating thickness).
Through coating mode measures the thickness of an object by precisely calculating the time difference T2 between two consecutive bottom echo (excluding the coating thickness).
UM series ultrasonic thickness gauge is extremely suitable for measuring the pipes about their thickness lose after corrosion.

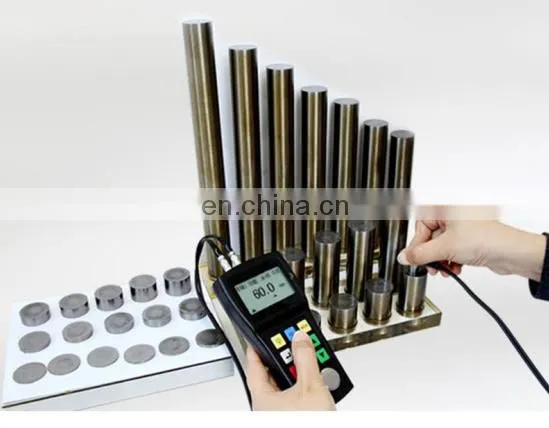

Each instrument has been calibrated by 34 standard test blocks before delivery to ensure the accuracy of the measurement.

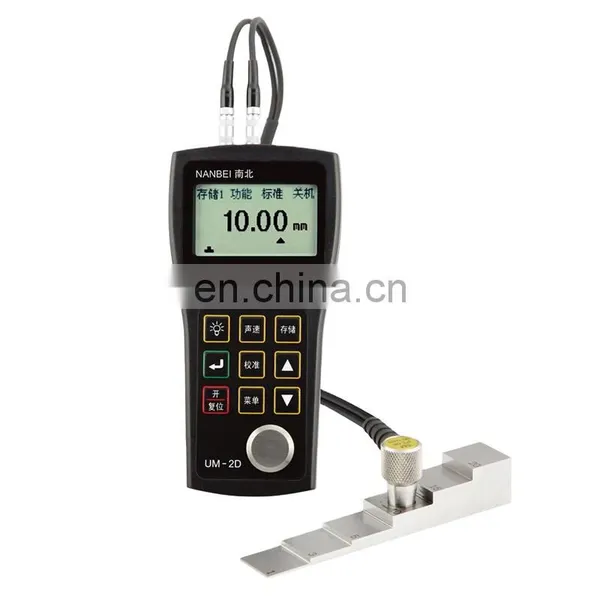

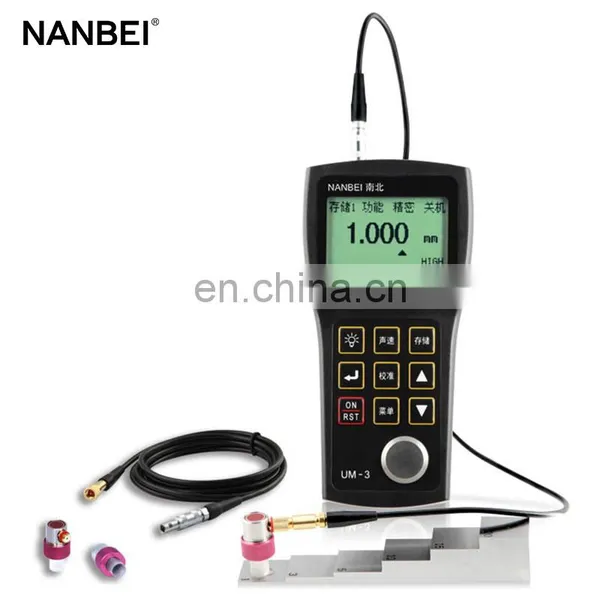

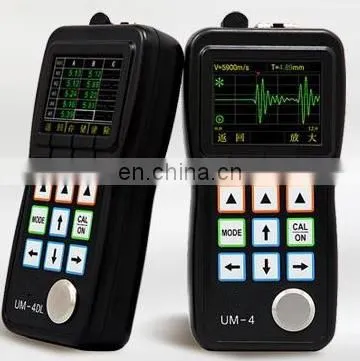

2.Picture for Our product

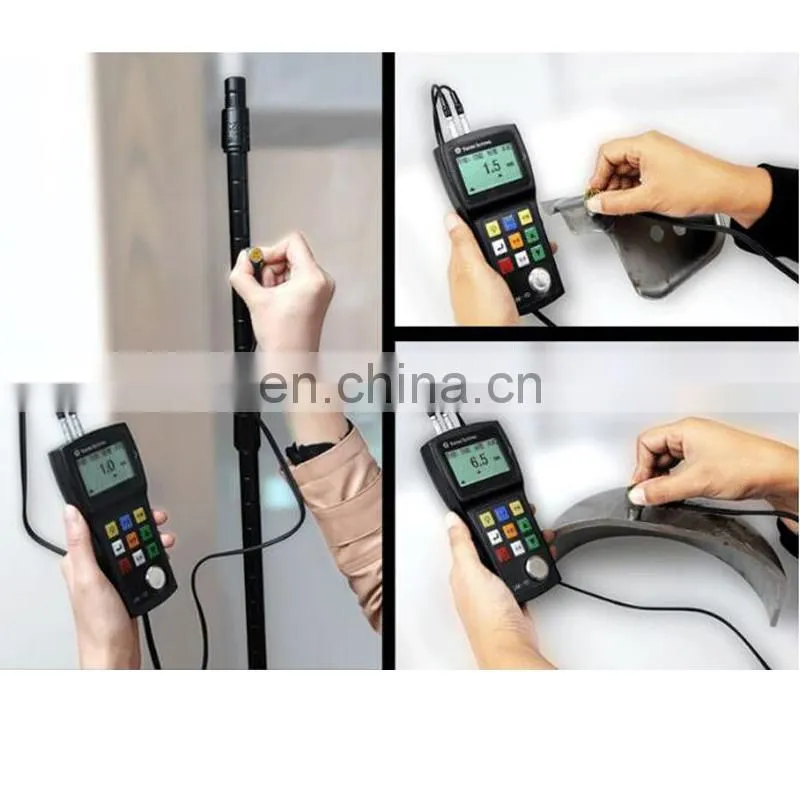

3.Usage and Application
It can measure the thickness of metal materials, high temperature pipes, pipes, plates (steel, aluminum), plastic, iron pipe, PVC pipe, glass and other materials. Can be widely used in manufacturing, metal processing industry, chemical industry, commercial inspection and other testing areas, but also on the production equipment in a variety of pipes and pressure vessels to monitor their use in the process of monitoring the degree of corrosion after the reduction is Material protection necessary special equipment.
4.Technical data
| Display Type | 128 ×64 dot-matrix LCD screen with EL backlight |
| Operating Principle | P-E (pulse-echo) with dual-crystal probes |
| Measuring Limits of Tube(Steel) | Φ20mm × 3.0mm (PT-08 probe) Φ15mm × 2.0mm (PT-06 probe) The measuring error is up to ± 0.1mm |
| Measuring Error | Low limit to 10mm: ±0.1mm 10mm to high limit: ± ± (1%H+0.1) mm Note: H is the actual thickness of the testing material |
| Repeatability | 0.1mm |
| Display Resolution | 0.1mm, 0.001inch |
| Units | Inch or Millimeter |
| Calibration Method | Zero calibration, Two-point calibration |
| V-Path Correction | Automatic |
| Update Rate | 4Hz |
| Material Velocity Range | 1000~9999m/s (0.0394 to 0.3937in/μs) |
| Memory Function | 5 arrays are divided to store 500 thickness values |
| Minimum Value Checking | Move the probe along the surface of the testing material, the gauge is able find the thinnest point automatically |
| Warning Function | If the measured value exceeds the pre-set thickness limit, the warning tone will start |
| Velocity Storage | Velocities of 5 different materials can be stored totally |
| Languages | English and Chinese |
| Communication Port | USB port or Serial RS 232 port (Optional) |
| Application Software | UmView Software for transmission,storage,analysis and documents editing (Optional) |
| Power Requirements | Two 1.5V AA alkaline batteries (Warning with low battery voltage) |
| Operating Time | Up to 200 hours with alkaline batteries (without backlight) |
| Instrument Shut-off | AUTO OFF after 5 minutes of inactivity |
| Operating Temperature | -10 °C to +50 °C , -20 °C in special requirements |
| Size | 149mm X 73mm X 32mm(H X W X D) |
| Weight | 210g including batteries |
