Stainless Steel Vertical Pressure Autoclave Steam Sterilizer With Self-inflating Type Seal

Stainless Steel Vertical Pressure Autoclave Steam Sterilizer With Self-inflating Type Seal photo-1

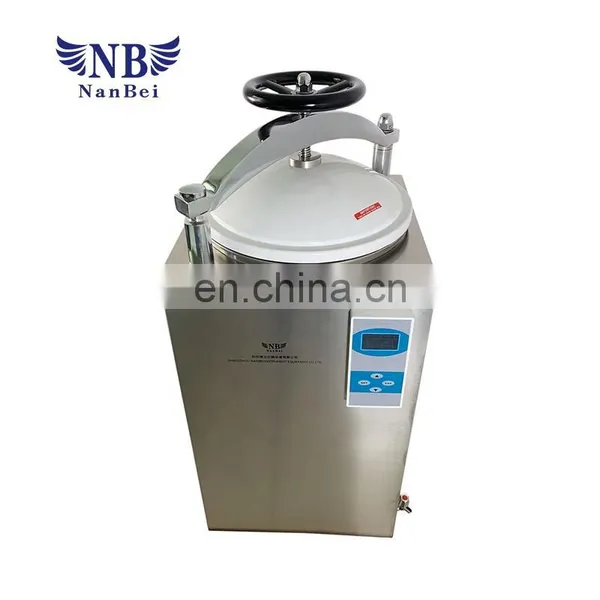

Stainless Steel Vertical Pressure Autoclave Steam Sterilizer With Self-inflating Type Seal photo-2

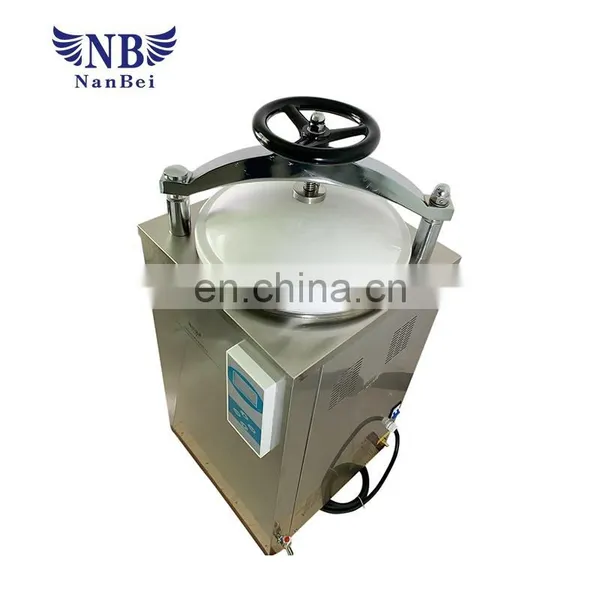

Stainless Steel Vertical Pressure Autoclave Steam Sterilizer With Self-inflating Type Seal photo-3

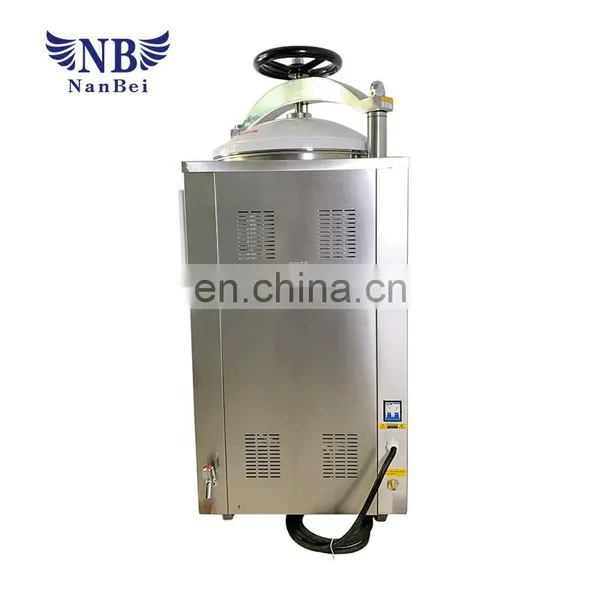

Stainless Steel Vertical Pressure Autoclave Steam Sterilizer With Self-inflating Type Seal photo-4

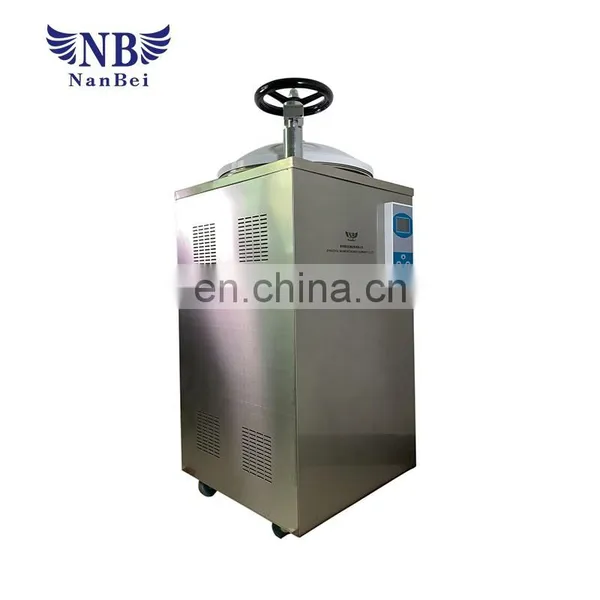

Stainless Steel Vertical Pressure Autoclave Steam Sterilizer With Self-inflating Type Seal photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Hospital autoclave vertical pressure steam sterilizer

Our Product

•Feature and Description

l .Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging automatically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.Used for sterilization of medical instruments, medical cotton products.
11.Fully stainless steel SUS304/AISI 304 -3mm
12.24 months warranty
13.Possible to install drying system according request

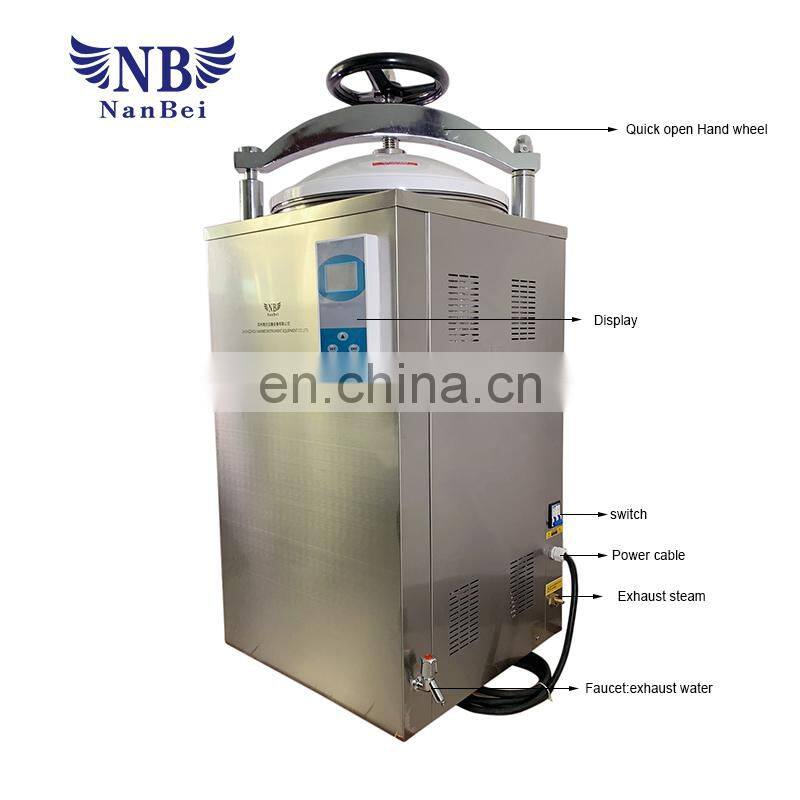

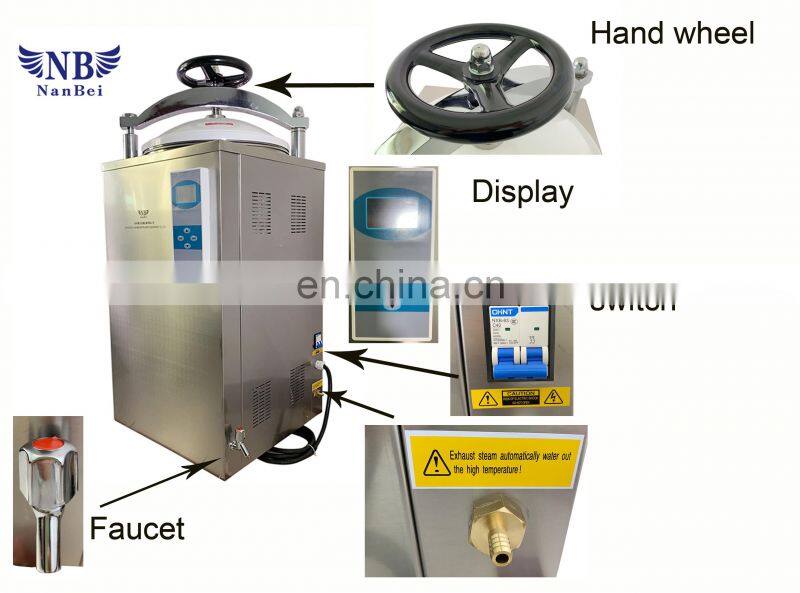

•Picture for Our product

Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal

Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal

•Usage and Application

The vertical steam sterilizer is a safe, reliable, and automatic controlling sterilizing equipment, which is equipped with heater, disinfection tube, container tube, safety valve, releasing steam valve, pressure temperature indicator, and sterilization end alarm, and the device of automatically cutting off the power ect. The container has the advantages of reliable disinfection and sterilization, easy operation, safe use, energy saving and excellent price. This type steam sterilizer are the ideal  equipment for disinfection and sterilization of surgical instruments, dressings, utensils and medium for medical and health research.

•Technical data

Model

technical data

NB-35HD

(automatic)

NB-50HD

(automatic)

NB-75HD

(automatic)

NB-100HD

(automatic)

Chamber volume

35L

(φ318×450)mm

50L

(φ340×550) mm

75L

(φ400×600) mm

100L

(φ440×650) mm

Working pressure

0.22MPa

0.14 MPa

Working temperature

134℃

126℃

Max working pressure

0.23 Mpa

0.165 Mpa

Heat average

≤±1℃



Timer

0~99min  or 0~99hour59min

Adjustment of temperature

105~134℃

105~126℃

Power

2.5Kw/AC220V.50Hz

4.5Kw/AC220V.50Hz

Overall dimension

450×450×1010(mm)

560×560×1120 (mm)

540×560×1250 (mm)

Transport dimension

570×550×1150(mm)

650×630×1280(mm)

680×630×1370(mm)

G.W/N.W

72Kg/56Kg

100Kg/ 80Kg

110Kg/ 85Kg

•Packing and Shipping

Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal



Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal
•Related Product

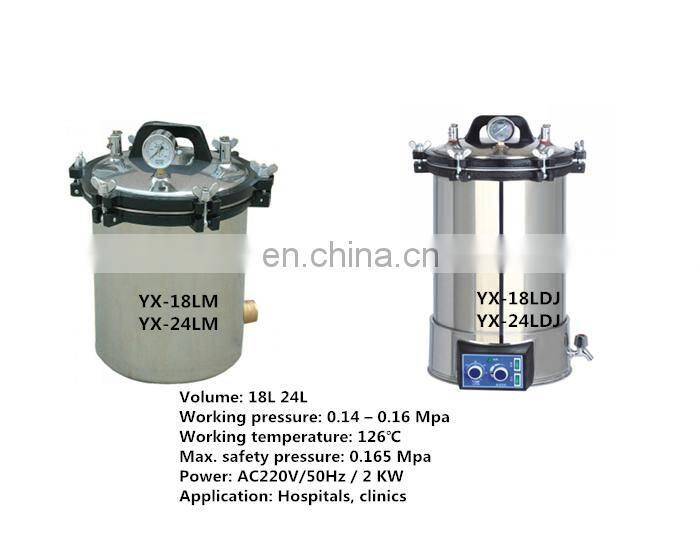

1. Portable type

Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal

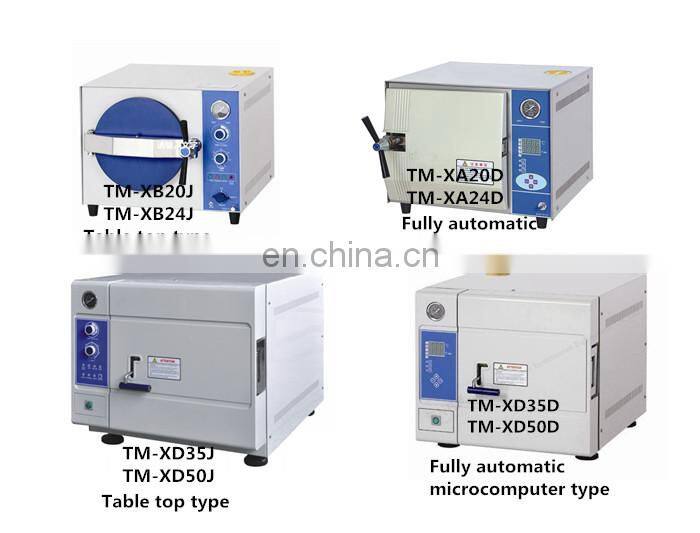

2. Table type

Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal

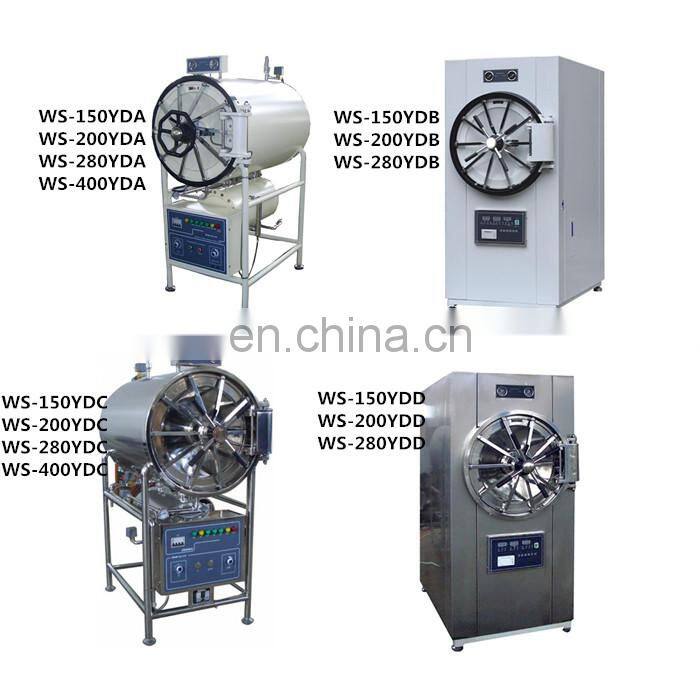

3.Horizontal Type

Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal

Our Copmany

1.Company Show

Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal

2.Factory Show

Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal

Our Services

1.Certification

Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal

2.Warranty And After-sale Service

♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥

Stainless steel vertical pressure autoclave steam sterilizer with self-inflating type seal
