Chemical Drying Mini Laboratory Sale Spray Dryer Price

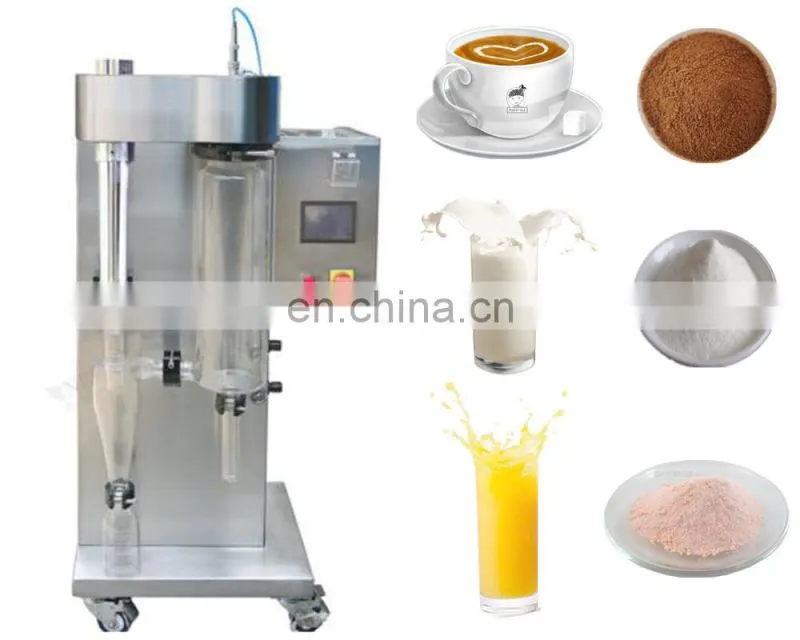

Chemical drying mini laboratory sale spray dryer price

1 Various fields where the production of a free powder sample is required

2 NSP-1500 has successfully processed samples in the following areas: beverage, flavorous and colorings, milk and egg products, plant and vegetable extracts. pharmaceuticals, synthetics heat sensitive materials, plastics polymers and resins, perfumes, blood, ceramics and superconductors biochemicals, dyestuffs, soaps and detergents, foodstuffs, adhesives, oxides, textiles, bones, teeth and tooth amalgam and many others.

Features:

1 Special for lab research, min 20-30ml liquid to finish one test

2 All borosilicate glass for easy visual monitoring of process status

3 Spray chamber, cyclone separator, receiving talk are all made of borosilicate glass which can resist strong acid/alkali, high temperature, it can work in a no-pollution and stable environment

4 Easy to clean and very simple to assemble and break down

5 The air compressor is no oil and don't pollute compress air, the sound is low than 50db and following the GMP understands.

6 Inlet/outlet temperature is accurate controlled by PID.

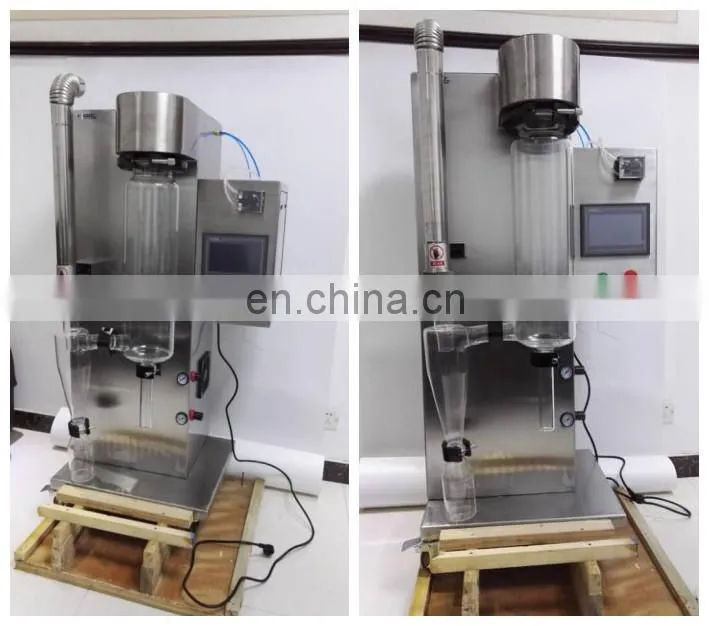

7 The unit is  self contained and supplied complete and ready for immediate operation

8 Using screed touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency

9 Product feeding with RS2559605 rotary pump, capacity is adjustable

10 Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled

Parameters:

1 Max capacity:2000 ml/h

2 Temperature range of inlet air:30C-280C

3 Temperature range of  outlet air:40C-120C

4 Precision of temperature:+_1C

5 Dryer time:1.0-1.5s

6 Speed of squirmy pump:30-2000ml/h

7 Consume of dryer air:0-3303/h, max pressure:686pa

8 Consume of spray air:0-4.2m3/h, spray pressure:2-5bar

9 Spray system:2 liquid nozzles with standard 0.7 mm jet and options of 0.5/1.0/1.5/2.0/2.5mm

10 Spray direction: downwards co-current

11 Power:3.5KW  220V

Dimensions:650*500*1550mm

NSP-1500 SPRAYER DRYER STANDARD LIST:

NSP-1500 SPRAYER DRYER OPTION LIST:
