Home > Products > Laboratory Instruments > 1200C High Temperature Pottery Glass Heating Ceramic Kiln
1200C High Temperature Pottery Glass Heating Ceramic Kiln
- 1000 per Month
- T/T Credit Card
- Novel fast heating 5L laboratory hot plate magnetic stirrer with strong mixing force
- Medical steam vertical dental laboratory steam sterilizer autoclave price
- Widely used 13L laboratory muffle furnace with self-tuning and self-diagnostic functions
- Portable small pressure steam sterilizer autoclave
- uv sterilizing equipment Digital display vertical autoclave steam sterilizer 100 liter
- Cell Micro-Plate Thermostatic Laboratory Incubator Shaker
Product Description
1200C High Temperature Pottery Glass Heating Ceramic Kiln
1.Feature and Description
Ø The use of modern integrated structure design, elegant, easy to operate.
Ø The door structure patented technology (patent number: ZL 2007 2 0028142.4), all-round sealed door. Make sure that the furnace temperature does not leak, to improve the working environment, to extend furnace life, and save energy.
Ø The selection of high-purity alumina fiber furnace heating elements use Chinese steel wire wreath furnace, ensure long-term life of the furnace and reliable, stable
Ø The enclosure is external double furnace structure, with cavity insulation, ventilation, and many other powerful international advanced design concepts to ensure that the surface temperature of the furnace is far below the national standard
Ø The furnace has an exhaust port, an atmosphere favorable sintering process, flue gas recirculation, exhaust
Ø Insulation materials imported high-quality ceramic fiber, 60% energy saving than traditional materials, light weight, good insulation effect.
Ø The control system consists of 6-inch color LCD touch screen + PLC system components
F Bi-lingual interface, man-machine dialogue, easy manipulation,
F Has 60 segments and a single point of temperature-programmed heating mode, the heating and cooling curves displayed in real time and the freedom to control the heating rate
F Recipe management program to solve the troubles common user settings. 10 raised by a group of independent users recipe editing, the user's convenience
F Temperature control system has self-tuning, self-diagnostic functions
Ø The temperature sensor is a stainless steel sheathed thermocouple, in line with national standards
Ø A door open power protection system that can effectively protect the safety of operating personnel
Ø The over-current and furnace surface temperature protection system to ensure safe operation of equipment
Ø After having restored power supply line anti-resistance furnace heating continued function to avoid unattended calls heating caused by other accidents
Ø The product has anti-tip devices, can effectively ensure the safety of operating personnel and other equipment
Ø Door and stove mouth made of high quality 304 stainless steel, has a capacity to engage in oxidation.
² Additional Equipment
Ø Flue
Ø The air intake system (for inert gas);
Ø Paperless recorder.
² Optional Equipment & Accessories
Ø Crucible;
Ø Crucible tongs;
Ø The furnace bottom plate

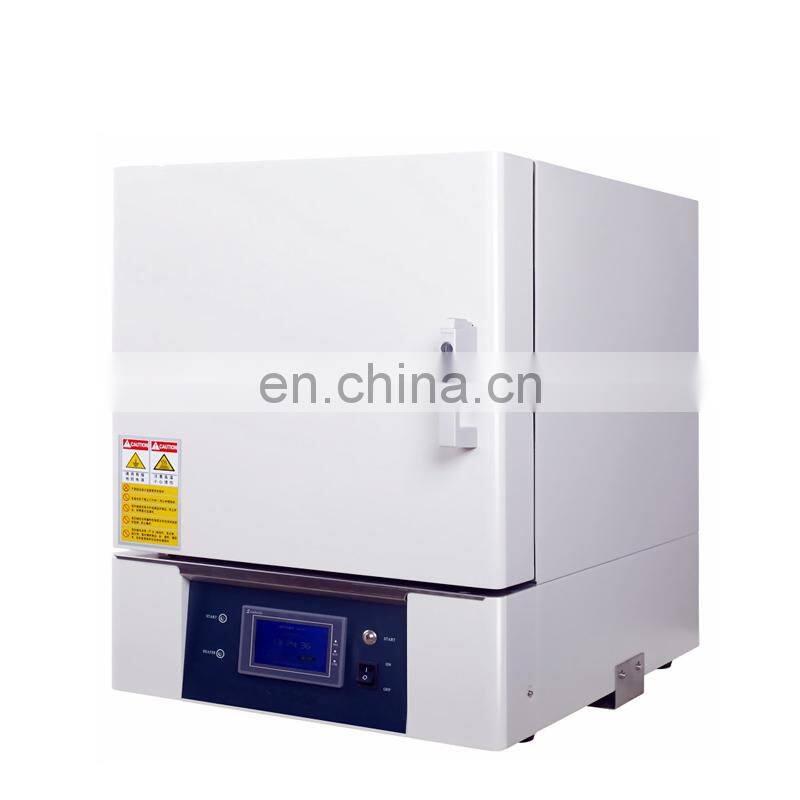

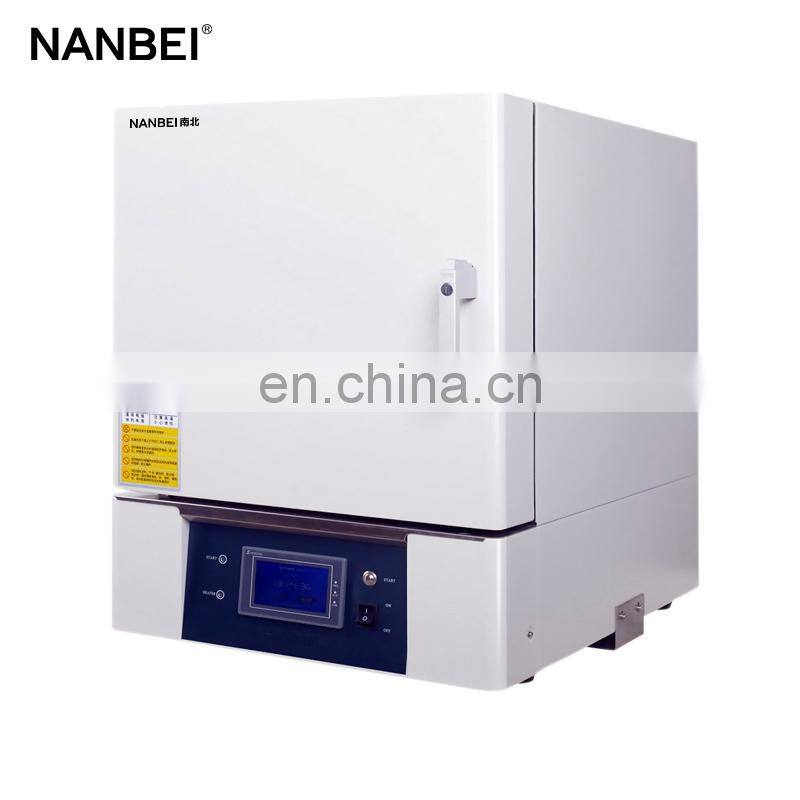

2.Picture for Our product
3.Usage and Application
Box-type resistance furnace which is also know as muffle furnace; it's the basic heating equipment for laboratory use. Its wide application areas covering industrial & mining enterprises, scientific research institutes, universities, laboratories and other experiments purpose. The resistance furnace is the necessary equipment for glass, pottery etc. sintering, melting and heat treatment of the material and volatile experiments.
4.Technical data
Name of Section |
Model |
|||||
SX2-2.5-12TP |
SX2-5-12TP |
SX2-6-12TP |
SX2-8-12TP |
|||
Internal Size & Holding Capacity |
200mm*120mm*80mm (2L) |
300mm*200mm*120mm (7.2L) |
300mm*200mm*200mm (12L) |
400mm*300mm*300mm (36L) |
||
Design Temperature |
1200℃ |
1200℃ |
1200℃ |
1200℃ |
||
Operating temperature |
1100℃ |
1100℃ |
1100℃ |
1100℃ |
||
Temperature accuracy |
±1℃ |
|||||
Heating rate |
≤40℃/min |
|||||
Temperature Control System |
PLC + 6 inches color touch screen (60 / single point temperature programmed heating)
|
|||||
Furnace chamber & shell thermocouple index |
K/K stainless steel sheathed |
|||||
Operating Voltage |
AC220V/50Hz |
Triphase AC380V/50Hz |
||||
Heating power |
2.5KW |
4KW |
5KW |
8KW |
||
Dimensions |
590mm*390mm *640mm |
680mm*520mm *660mm |
680mm*520mm *730mm |
850mm*720mm*920mm |
5.Packing and Shipping
6.Related Product
heating magnetic stirrer | heating plate |
Warranty and After-sale service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
1.Customer Response
Good product, it helps a lot in laboratory heating. | |
It is really good. I am very satisfied with it. Thanks. I will contact you if I need other laboratory equipment. |
