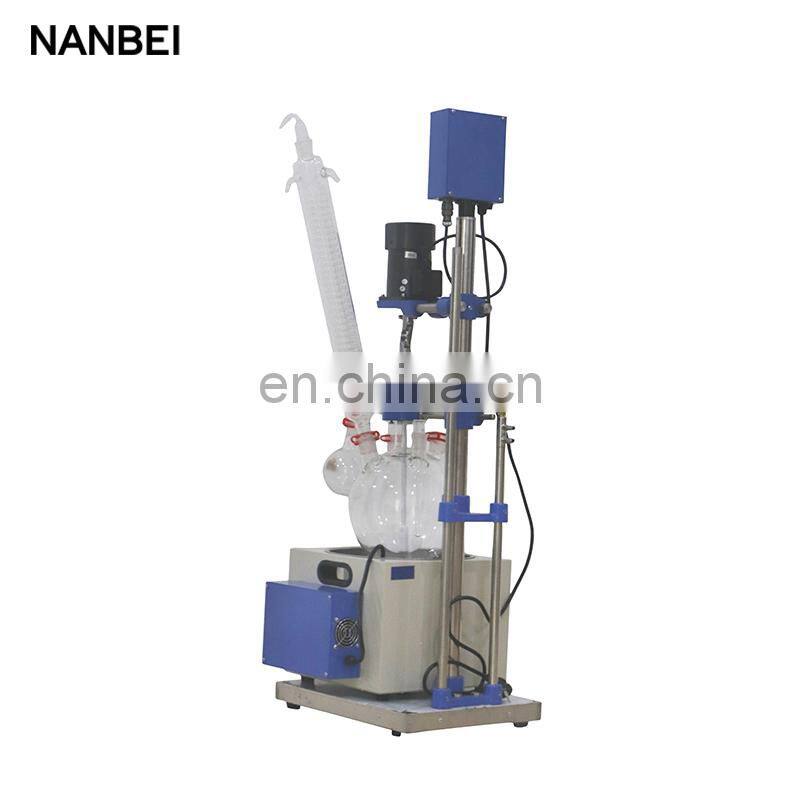

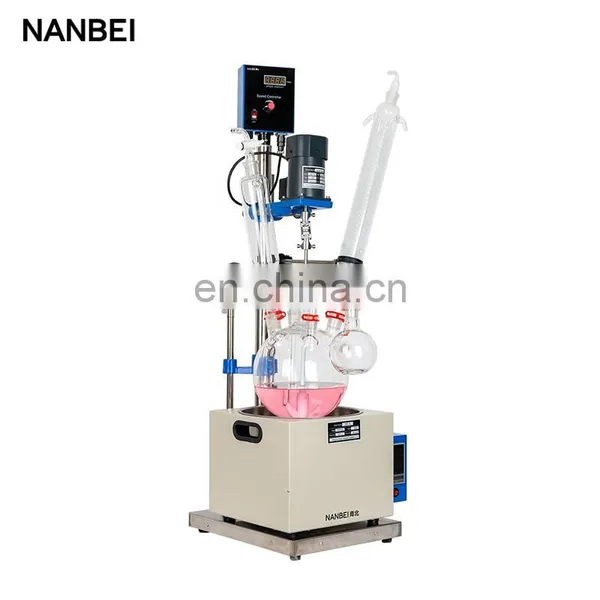

Lab Chemical Single Layer Heated Small Tank Cheap Glass Reactor With Oil Bath
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Pressure Chemical Lab Size Mixing Double Layer Glass Reactor BioreactorNegotiableMOQ: 1 -
10-100L Glass Chemical Reactor With High Borosilicate GlassNegotiableMOQ: 1
-
Vacuum Distillation Jacket Heating Glass Reactor Vessel 20l for SaleNegotiableMOQ: 1
-
Laboratory High Pressure 10L Chemical Single Wall Layer Glass ReactorNegotiableMOQ: 1
-
Lab Double Stirred Distillation Glass Reactor for ChemicalNegotiableMOQ: 1
Product Description

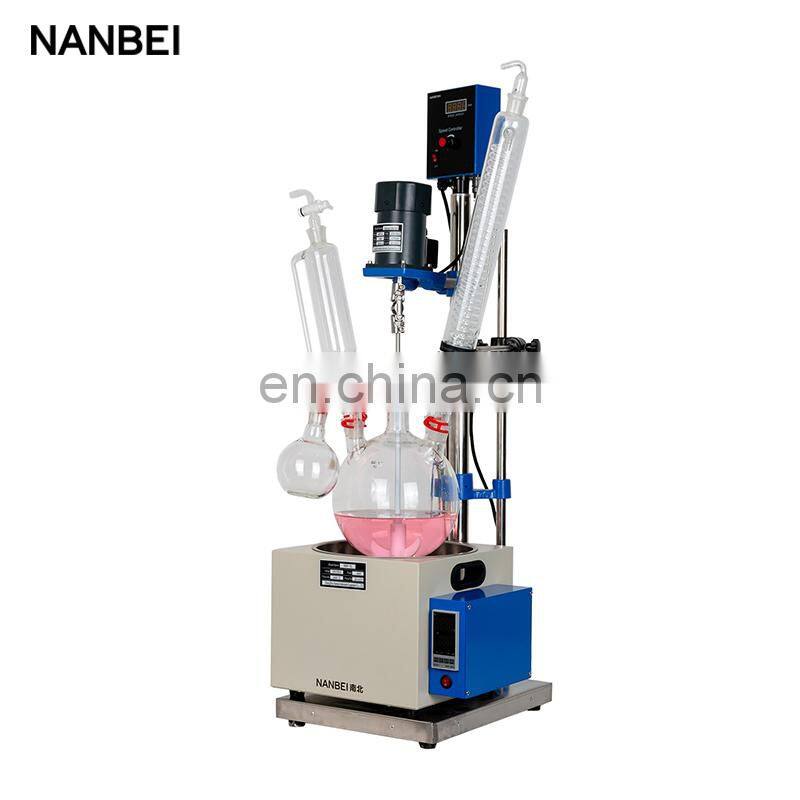

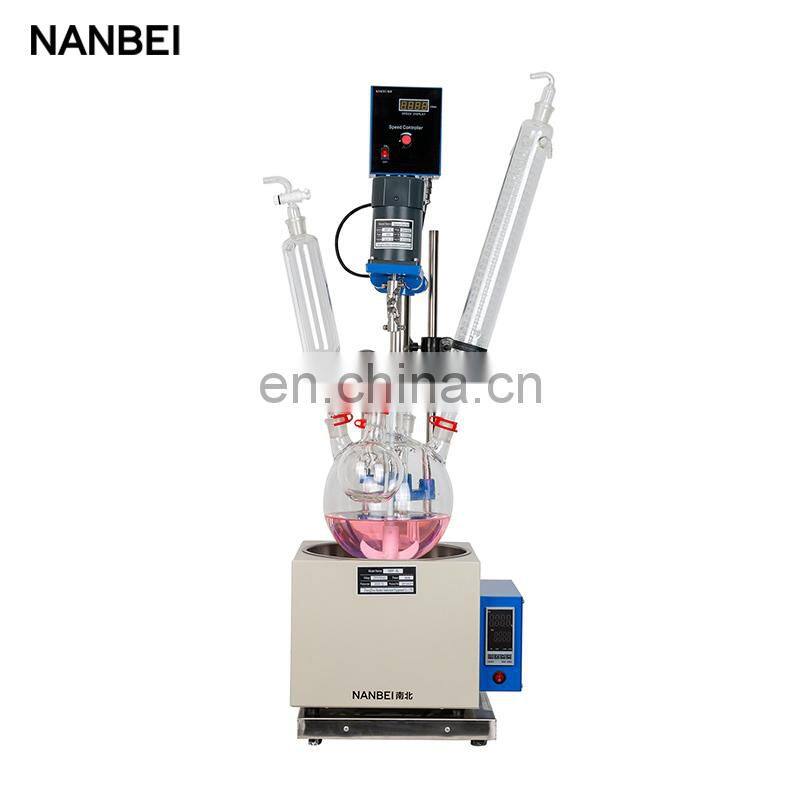

1L chemical small single layer heated glass reactor
Brief Introduction:
Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.
Product Features:

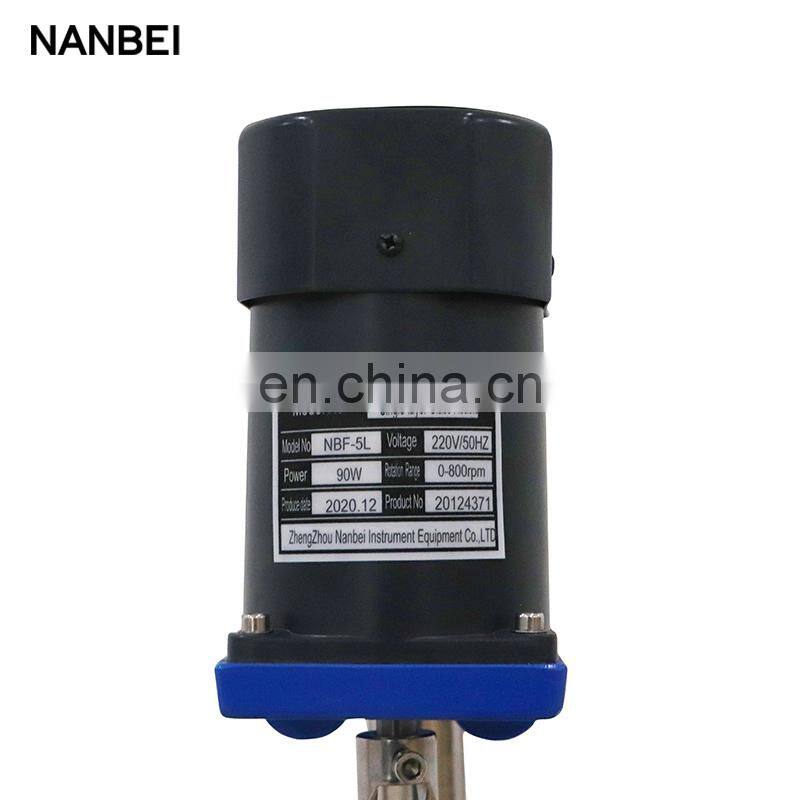

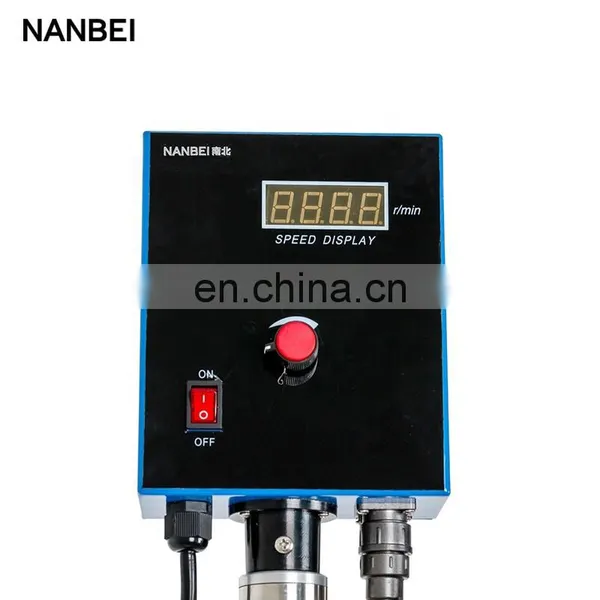

1.Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available. ( We can add the cooling coil and an anti-explosion device according to user's needs)
More Details Photos

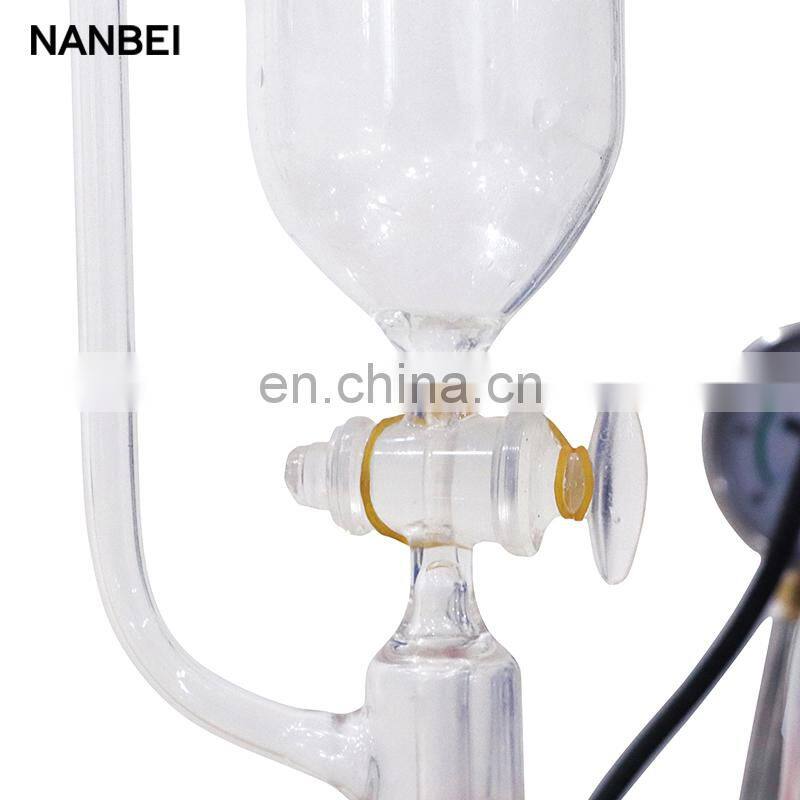

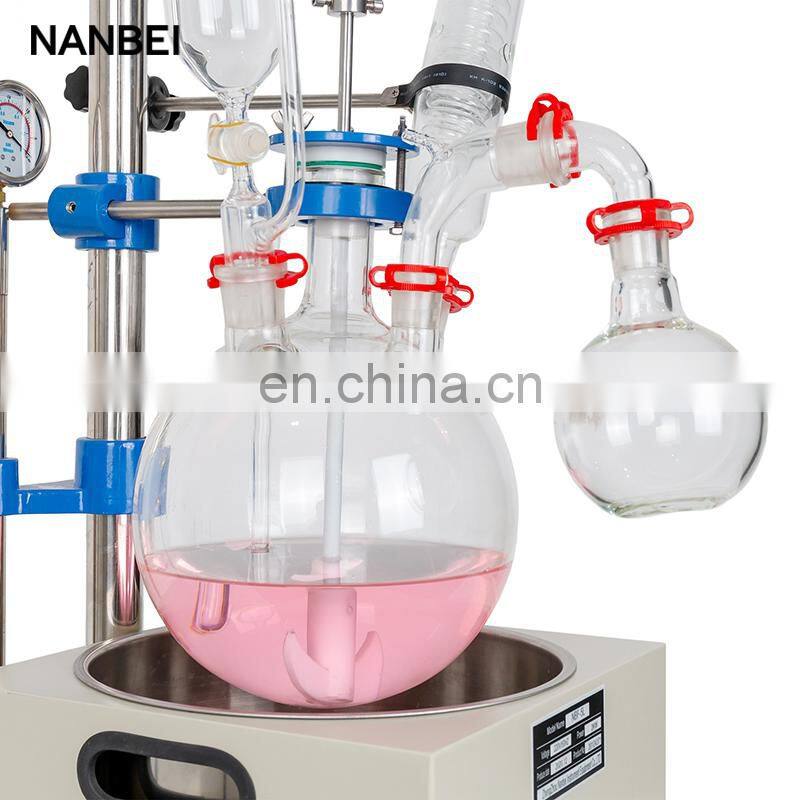

Reaction cover including 5 port, using for motor stirring, condenser, Temperature detection port,constant pressure
funnel for liquid adding,
gas release.
High-efficiency condenser for high speed collection
This is the 1L to 5L series. If you need other capacity, please feel free to contact us
Specification
Name | Single layer glass reactor | ||||||||
Model | NBF-1L | NBF-2L | NBF-3L | NBF-5L | |||||
Volume | 1L | 2L | 3L | 5L | |||||
Glass material | GG-17 | ||||||||
Frame material | Stainless steel | ||||||||
Port No. of reactor cover | 5 | ||||||||
Temperature range | .-80 to 250degree | ||||||||
Vacuum | 0.098Mpa | ||||||||
Stirring speed | 0-800pm | ||||||||
Stir rod diameter | 8mm | ||||||||
Motor power | 40W | 90W | |||||||
Heating power | 1.5KW | 2KW | |||||||
Voltage | 220V/50Hz | ||||||||
Overall size (mm*mm*mm) | 320*330*1000 | 430*330*1200 | |||||||
Plate size (mm*mm*mm) | 280*330 | 350*330 | 410*325 | ||||||
Inner size (mm*mm) | stainless steel 280*170mm | ||||||||
Package size (mm*mm*mm) | 800*480*450 | 1000*480*480 | |||||||
Gross weight（KG） | 26 | 30 | |||||||
Speed control mode | Electronic stepless speed regulation | ||||||||
Speed display mode | digital display | ||||||||
Temperature display mode | digital display | ||||||||
Seal mode | PTFE seal, ￠50 flange stir port | ||||||||
Condensor | vertical 40*400mm standard 24# | vertical port 60*450mm standard 24# | |||||||
Droplet port | 250ml constant pressure funnel, standard 24# | 500ml constant pressure funnel, standard 29# | |||||||
Reduced pressure | no | standard 24# Pressure release valve | |||||||
Temperature tube | standard 19# | standard 24# | |||||||

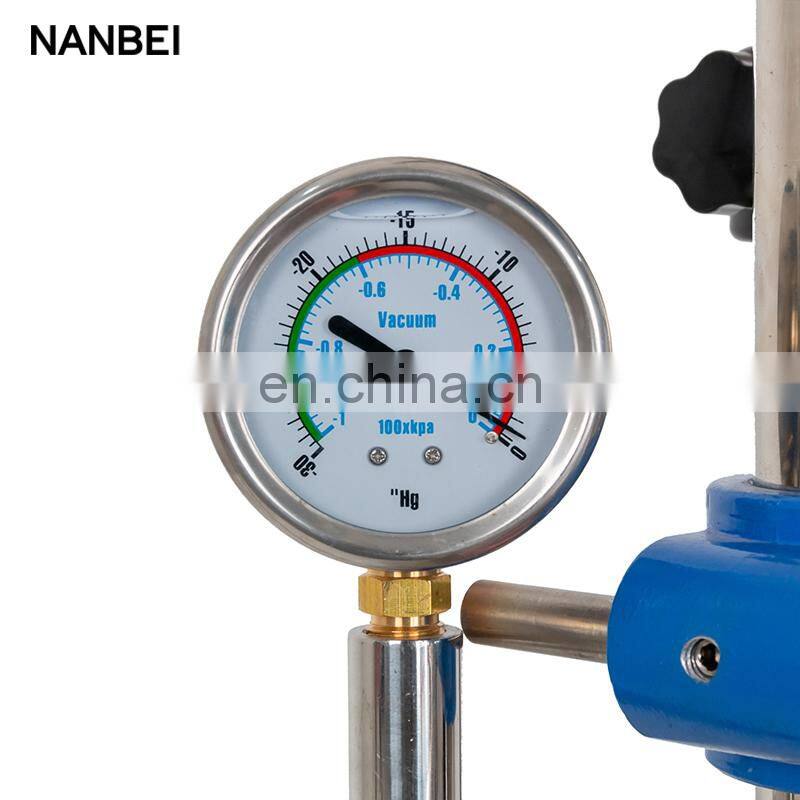

Vacuum display mode | Vacuum gauge | ||||||||
Mixing connection | universal joint link | ||||||||

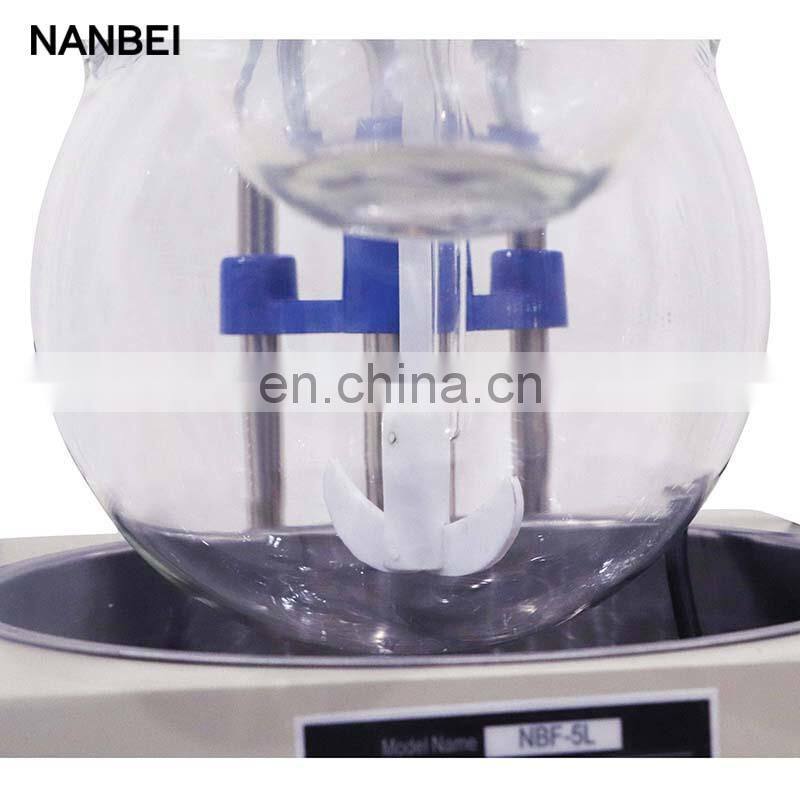

Stir rod | Anchor type, Stainless steel rod with PTFE | ||||||||
