1L 2L 3L 5L Chemical Reaction Automatic Stirring Distillation Extractionr Tank Jacketed Glass Reactor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5l Laboratory Chemical Stirring Double Layer Jacketed Mini Glass Reactor With CENegotiableMOQ: 1 -
Lab Chemical Distillation Device High Borosilicate Small Jacketed Glass Reactor With CENegotiableMOQ: 1
-
Lab Chemical Single Layer Heated Small Tank Cheap Glass Reactor With Oil BathNegotiableMOQ: 1
-
High Pressure Chemical Lab Size Mixing Double Layer Glass Reactor BioreactorNegotiableMOQ: 1
-
10-100L Glass Chemical Reactor With High Borosilicate GlassNegotiableMOQ: 1
Product Description
Jacketed glass reactor
Brief:
The glass reactor body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.
Features:
1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.
3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.
7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.
Structure for Glass Reactor

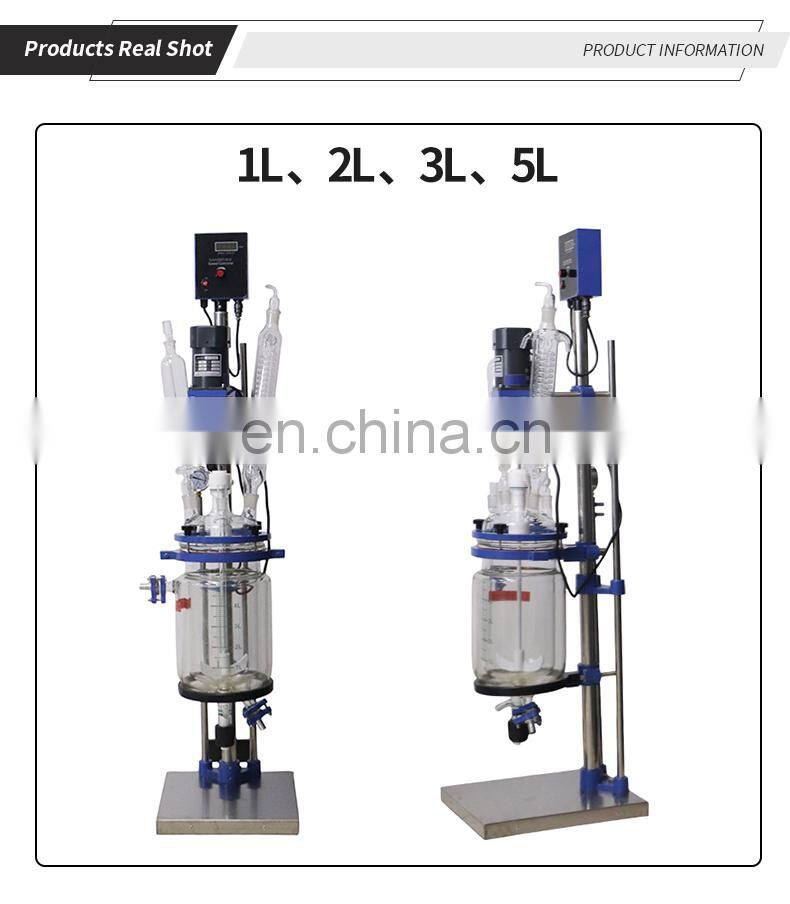

More Details Photos
Specification
Model | NB-1L | NB-2L | NB-3L | NB-5L |
Glass Material | GG-17 | GG-17 | GG-17 | GG-17 |
Frame Material | 304 SUS | 304 SUS | 304 SUS | 304 SUS |
Reaction bottle capacity | 1L | 2L | 3L | 5L |
Jacketed Capacity | 0.4L | 0.5L | 0.6L | 0.8L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover | 5 | 5 | 5 | 5 |
Discharge port distance to ground | 30mm | 30mm | 30mm | 30mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-800rpm | 0-800rpm | 0-800rpm | 0-800rpm |
Stirring diameter | 8mm | 8mm | 8mm | 8mm |
Stirring power | 40W | 40W | 90W | 90W |
Voltage(V/Hz) | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Dimension(mm) | 350*345*1000 | 350*345*1000 | 350*410*1250 | 350*410*1250 |
Plate size(mm) | 325*345 | 325*345 | 325*410 | 325*410 |
Packing size（mm） | 1200*480*400 | 1200*480*400 | 1380*500*400 | 1380*500*400 |
Packing weight（KG） | 32 | 32 | 38 | 38 |
Options

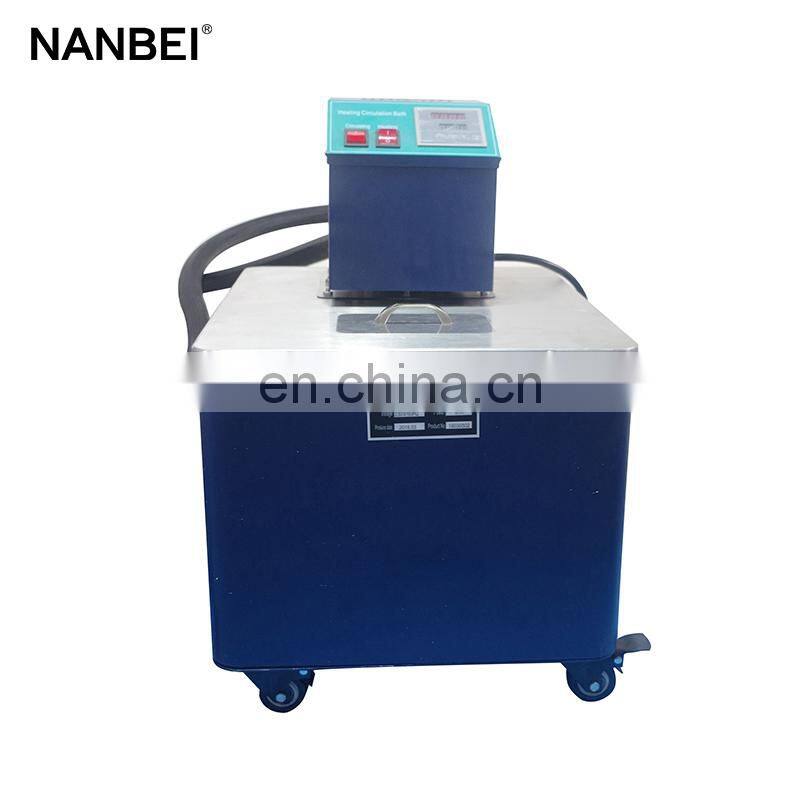

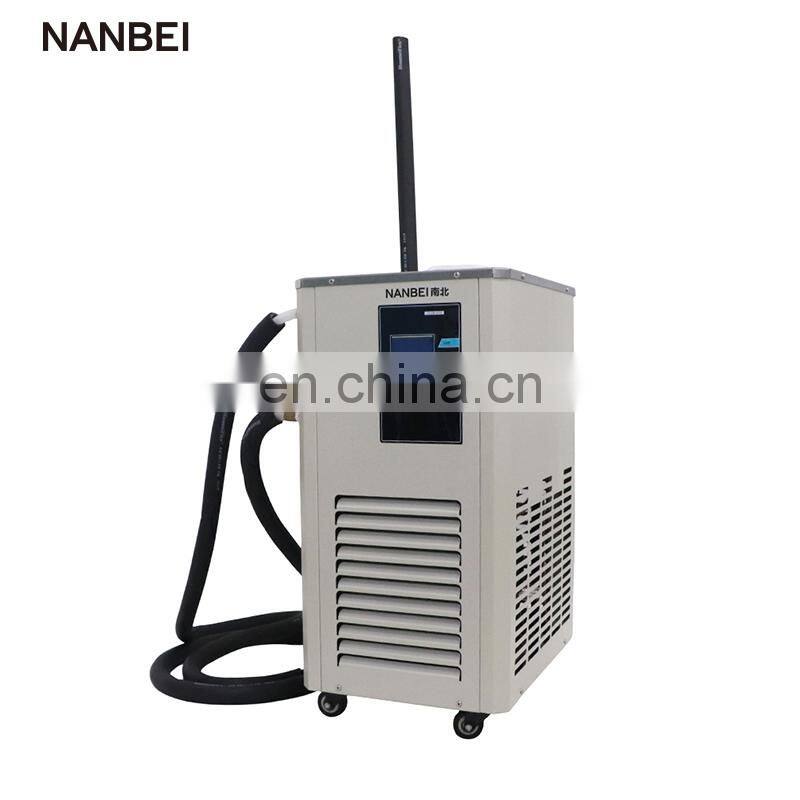

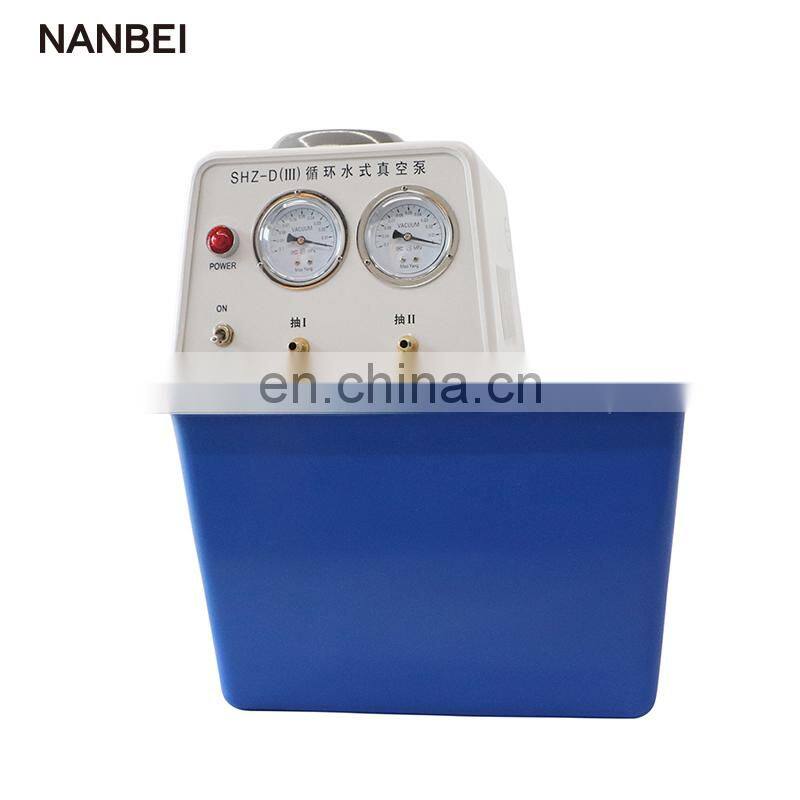

water chiller Heating bath vacuum pump
Note:
You just need tell us the capacity of glass reactor do you want and the reaction temperature, we will recommend the suitable reactor and these supporting equipments
