Home > Products > Glass Reactor > Lab chemical distillation device high borosilicate small jacketed glass reactor with CE

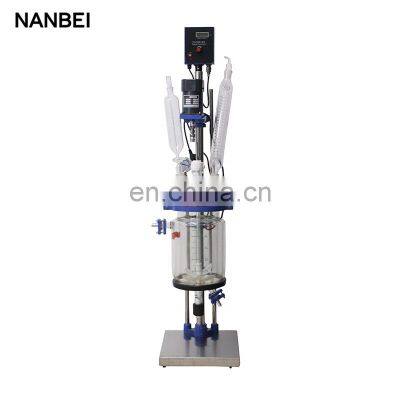

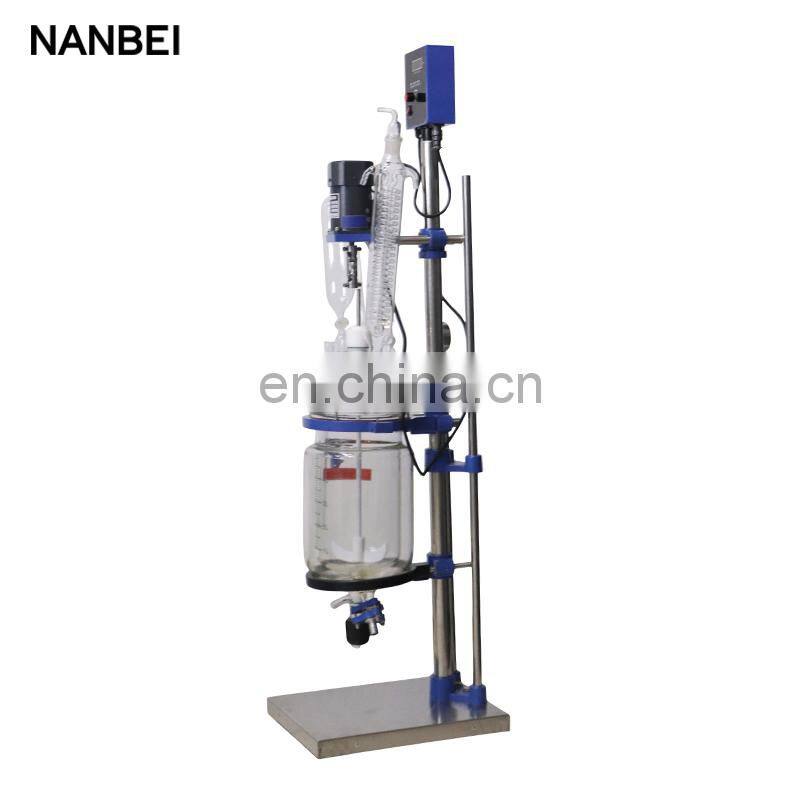

Lab chemical distillation device high borosilicate small jacketed glass reactor with CE
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Lab chemical single layer heated small tank cheap glass reactor with oil bath
-
High pressure chemical lab size mixing double layer glass reactor bioreactor
-
Factory sale milk using price for lab mini spray dryer
-
Chemical drying mini laboratory sale spray dryer price
-
Latest technology cheap price lab mini spray dryer
-
Lab scale mini spray dryer or milk and powder instant coffee
Product Description
Product Description
Jacketed glass reactor
Brief:
The glass reactor body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.
Features:
1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.
3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

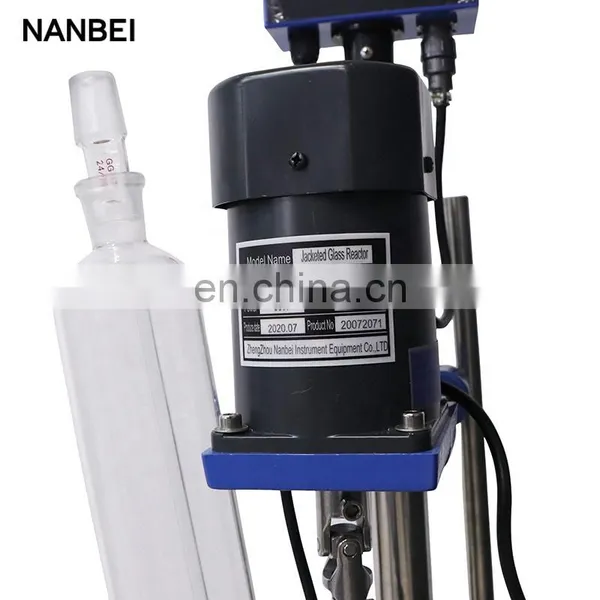

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.
7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.
Structure for Glass Reactor
More Details Photos
Specification
Model | NB-1L | NB-2L | NB-3L | NB-5L |
Glass Material | GG-17 | GG-17 | GG-17 | GG-17 |
Frame Material | 304 SUS | 304 SUS | 304 SUS | 304 SUS |
Reaction bottle capacity | 1L | 2L | 3L | 5L |
Jacketed Capacity | 0.4L | 0.5L | 0.6L | 0.8L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover | 5 | 5 | 5 | 5 |
Discharge port distance to ground | 30mm | 30mm | 30mm | 30mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-800rpm | 0-800rpm | 0-800rpm | 0-800rpm |
Stirring diameter | 8mm | 8mm | 8mm | 8mm |
Stirring power | 40W | 40W | 90W | 90W |
Voltage(V/Hz) | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Dimension(mm) | 350*345*1000 | 350*345*1000 | 350*410*1250 | 350*410*1250 |
Plate size(mm) | 325*345 | 325*345 | 325*410 | 325*410 |
Packing size（mm） | 1200*480*400 | 1200*480*400 | 1380*500*400 | 1380*500*400 |
Packing weight（KG） | 32 | 32 | 38 | 38 |
Options
water chiller Heating bath vacuum pump
Note:
You just need tell us the capacity of glass reactor do you want and the reaction temperature, we will recommend the suitable reactor and these supporting equipments
Recommend Products
Packing & Delivery
Company Profile
Customer Concerns
FAQ:
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
