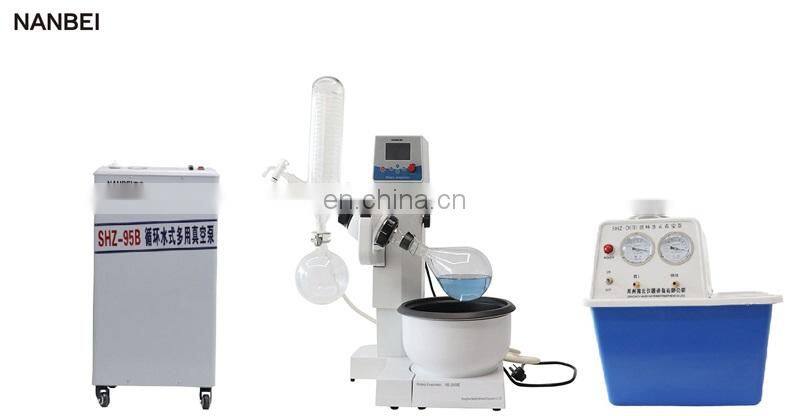

China Lab short path distillation mini vacuum rotary evaporator equipment with chiller and vacuum pump

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

China Lab distillation mini vacuum rotary evaporator equipment with chiller and vacuum pump

Application for China Lab distillation mini vacuum rotary evaporator equipment with chiller and vacuum pump：

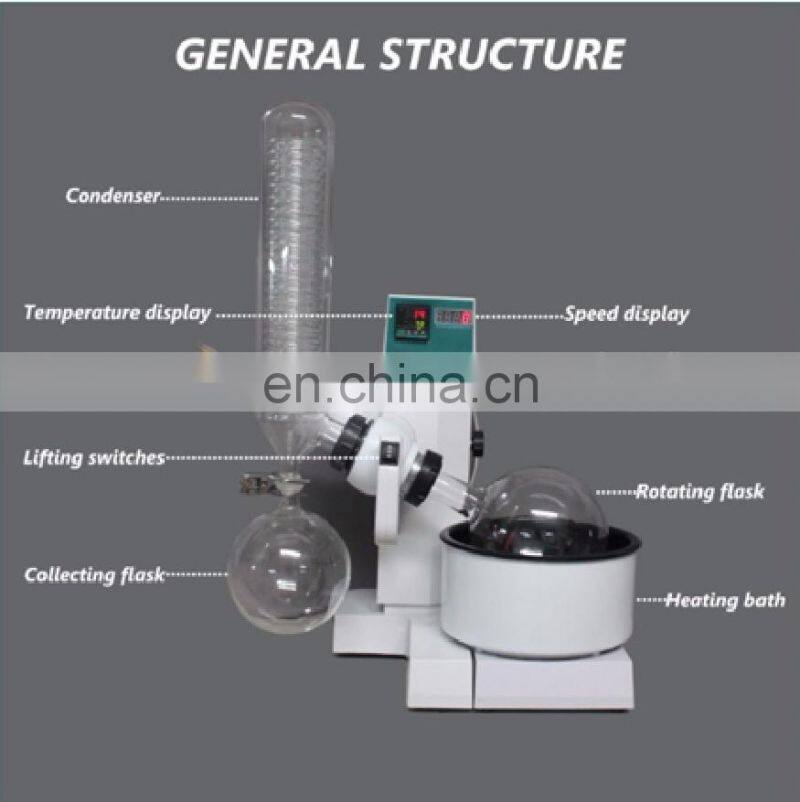

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.

Characters for China Lab distillation mini vacuum rotary evaporator equipment with chiller and vacuum pump:

Rotators consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-180 RPM range, it has reached the advanced level at home and abroad.

1,the move up and down lift system adopts motor revolved lifting structure.

2,the condenser adopted two kinds of optional structure , one is double line convection principle, the other one is a single line with interlayer water, ice, and dry ice container. Used in organic solvent evaporation. And the vertical condenser saves space.

3, the axis of rotation use high temperature high borosilicate glass, heat resistant and good sealing. Sealing parts use + two-way sealing, and the effect is good.

4, it is equipped with heating trough, and built-in resistance wire heater, heating temperature is from room temperature to 99 ℃.

5, the device is equipped with temperature indicator, intelligent temperature controlling, digital display, temperature control implemented by PT100 sensors. When the water temperature reaches primary temperature, the controller automatically cut off the heater power; When is lower than the water, temperature controller automatically turn on the heater power; To realize the tank water temperature be constant.

6, B type, E type is equipped with speed display, can accurately display rotation speed, E type is LCD screens.

More Details Photos

All glass parts are made of high borosilicate glass
(GG-17), which is resistant to high temperature and corrosion.

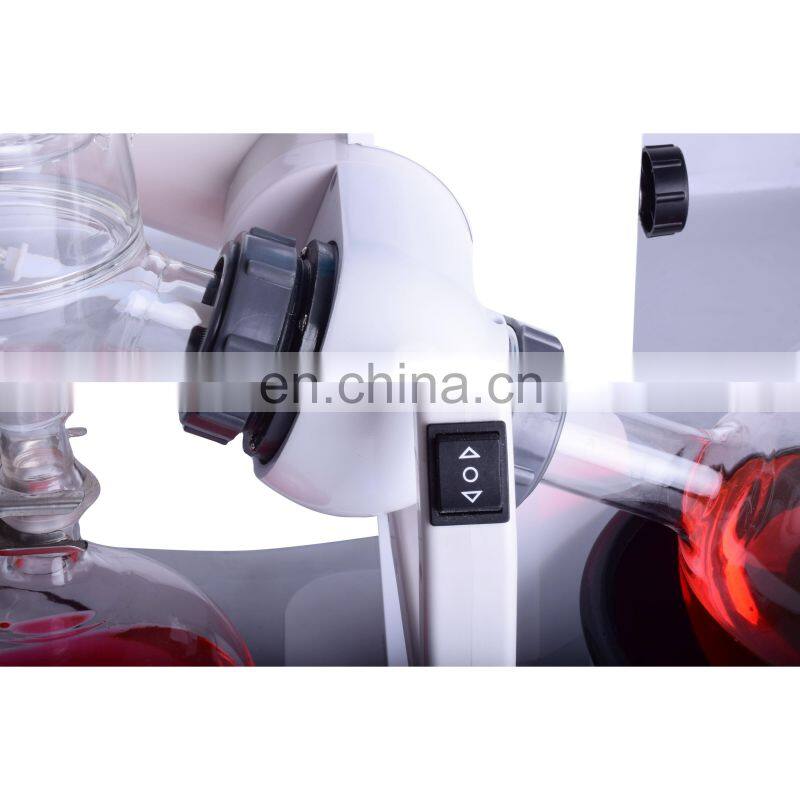

Automatic lifting type, press here to automatic life the flask

• Intelligent thermostatic control of the bath, PT100 sensor transmits temperature quickly and accurately.
• The pot is made of stainless steel + composite pot, which is fully enclosed and heated.

The sealing system adopts + imported fluorine rubber combination two-way sealing, which can maintain high vacuum.
• Vertical double-layer serpentine coil condenser to ensure high recovery rate and additional material pipe.
• Large LCD display, which can simultaneously display speed and temperature.

Specification

Model	NRE-3000A	NRE-3000B	NRE-3000E
Glass meterial	GG-17
Holder material	aluminium alloy
Pot shell Material	aluminium alloy
Pot bravery	Stainless steel 250*130mm
Evaporator flask	3L Flange mouth:Φ50mm
Collect flask	2L 35#
Rotary speed	0-180RPM
Rotary power	40W			40W Brushless motor
Heating power	1.5KW
Heating temp.	0-99℃
Temp. accuracy	-1
Lifting power	15W
Lifting stroke	120mm
Voltage	220/110V 50/60HZ
Dimension	660420830
Packing size	630560540
Packing weight	30kg
Configuration list
Speed mode	No	Digital	LCD
Speed Display	Digital
Temp. display	Digital
Temp. control	Intelligent temp. control
Sealing method	PTFE
Condenser	Vertical 100*510
Lifting mode	Electric automatic lifting
Continuous feed	19# Standard mouth feed valve
Option
Splash device	Transparent cover for heating bath
